DIN rail-mounted devices

MCB 2P 6kA D-63A 2M MDN263R

EAN

3250614310331

Packaging

6

Accessories
Technical properties
Environmental value
More products

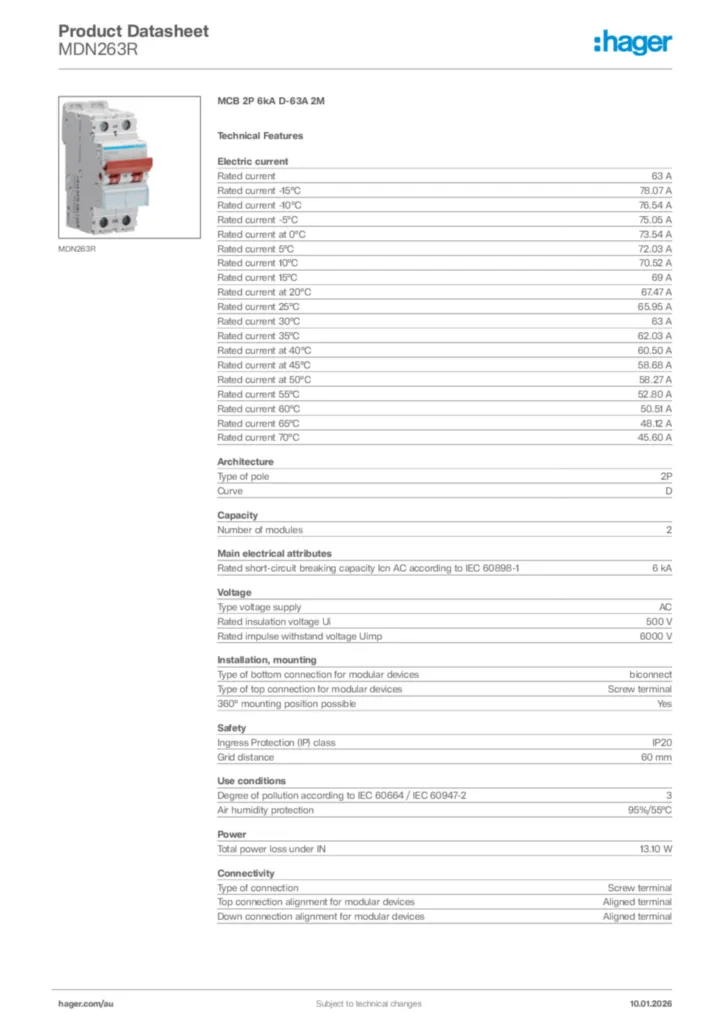

Download the data sheet

Complete your system

Optional accessories

AOB electronic TPN type A 3 products available
Mechanic accessories for low-voltage components 1 products available
Auxiliaries contact block 2 products available
Shunt release 2 products available
Under voltage coil 1 products available
See more 3 other products available

Technical properties

Rated current

63 A
Rated current -15°C

78,07 A
Rated current -10°C

76,54 A
Rated current -5°C

75,05 A
Rated current at 0°C

73,54 A
Rated current 5°C

72,03 A
Rated current 10°C

70,52 A
Rated current 15°C

69 A
Rated current at 20°C

67,47 A
Rated current 25°C

65,95 A
Rated current 30°C

63 A
Rated current 35°C

62,03 A
Rated current at 40°C

60,50 A
Rated current at 45°C

58,68 A
Rated current at 50°C

58,27 A
Rated current 55°C

52,80 A
Rated current 60°C

50,51 A
Rated current 65°C

48,12 A
Rated current 70°C

45,60 A

Type of pole

2P
Curve

D

Number of modules

2

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Ingress Protection (IP) class

IP20

Degree of pollution according to IEC 60664 / IEC 60947-2

3
Air humidity protection

95%/55°C

Total power loss under IN

13,10 W

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

84,60 mm
Width

35 mm
Depth

70 mm

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes
