Miniature circuit breaker 2P 63A 6kA Curve D AC 415V 2 Modules MDN263P

Phase out product: please contact your electrical wholesaler for availability

Follow-up products :

NDN263A

Accessories
Technical properties
Environmental value
Documentations

Download the data sheet

Complete your system

Locking interlocking functions 1 products available
Phase separation functions 1 products available
Terminal cover 1 products available
Mechanic accessories for low-voltage components 1 products available
Under voltage coil 1 products available
Shunt release 2 products available

Technical properties

Rated current IN

63 A
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

10 kA
Rated current at -15°C

78,23 A
Rated current at -10°C

76,54 A
Rated current at -5°C

74,85 A
Rated current at 0°C

73,16 A
Rated current at 5°C

71,46 A
Rated current at 10°C

69,77 A
Rated current at 15°C

68,08 A
Rated current at 20°C

66,39 A
Rated current at 25°C

64,69 A
Rated current at 30°C

63 A
Rated current at 35°C

61,82 A
Rated current at 40°C

60,64 A
Rated current at 45°C

59,45 A
Rated current at 50°C

58,27 A
Rated current at 55°C

57,09 A
Rated current at 60°C

55,91 A
Rated current at 65°C

54,72 A
Rated current at 70°C

53,54 A
Rated short-circuit breaking capacity Icn under 400 V AC according to IEC 60898-1

6 kA

Type of pole

2P
Curve

D

Number of modules

2

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Nominal tightening torque top terminal

2,80-2,80 Nm
Nominal tightening torque down terminal

2,80-2,80 Nm
Nominal tightening torque

2,80 - 2,80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

415-415 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1-35 mm²
Cross-section of input and output with screws, for flexible conductors

1-25 mm²
Cross-section of input with screws, for flexible conductors

1-25 mm²
Cross-section of input with screws, for massive conductors

1-35 mm²

Ingress Protection (IP) class

IP20
Grid distance

60 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Air humidity protection

95%/55°C
Operating temperature

-25 - 70 °C

Power dissipation at IN

13,10 W

Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal
Type of connection

Screw terminal

Height

84,60 mm
Width

35 mm
Depth

70 mm

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes

Certifications and documents

PEP - MCB 1P 6kA B-16A, 1 module (English)

PDF

67,85 MB

REACH declaration MDN263P

PDF

RoHS report MDN263P

PDF

Downloads

Product image

Product Image MDN263P
Product datasheet

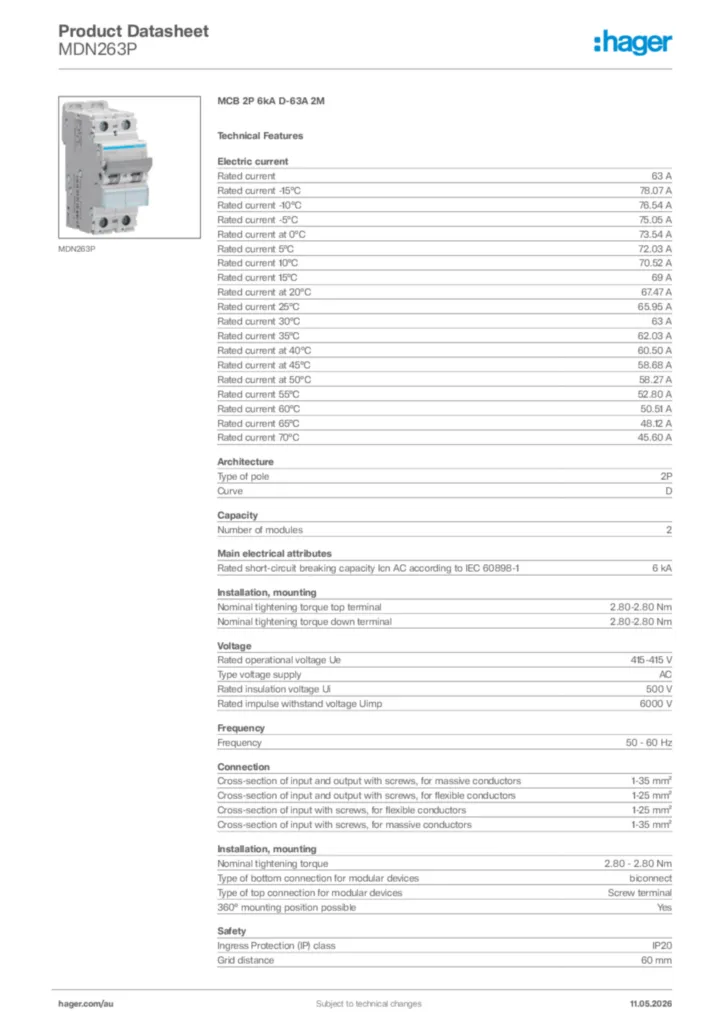

Hager Product data sheet MDN263P
