DIN rail-mounted devices

MCB 2P 6kA D-40A 2M MDN240P

EAN

3250614353154

Packaging

6

Accessories
Technical properties
More products

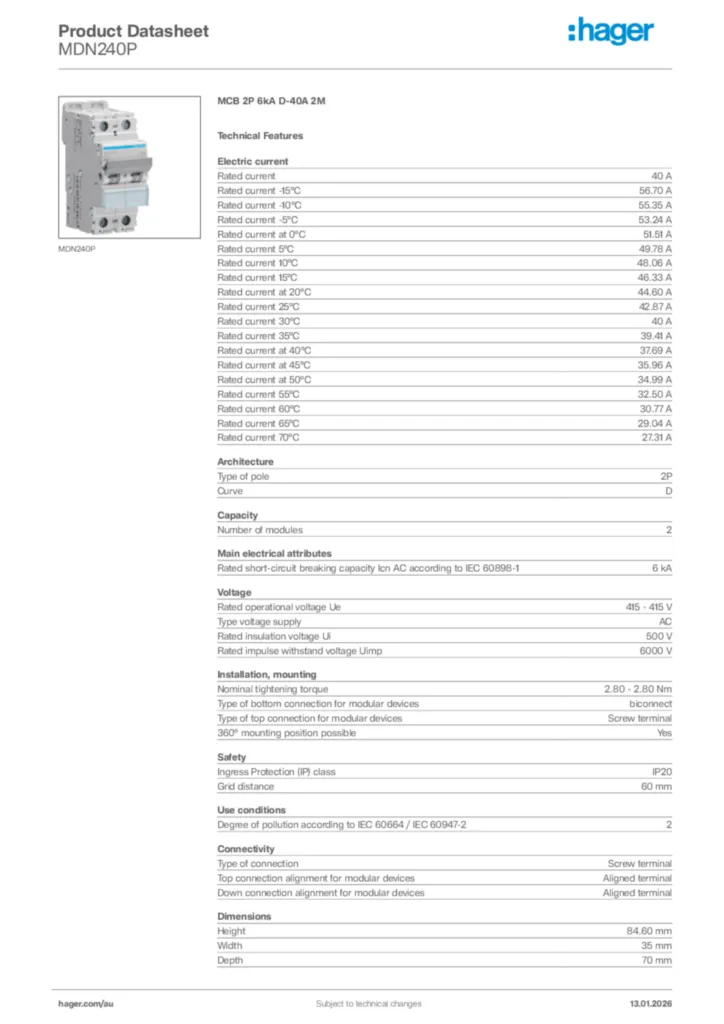

Download the data sheet

Complete your system

Optional accessories

AOB electronic TPN type A 3 products available
Mechanic accessories for low-voltage components 1 products available
Auxiliaries contact block 2 products available
Shunt release 2 products available
Under voltage coil 1 products available
See more 3 other products available

Technical properties

Rated current

40 A
Rated current -15°C

56,70 A
Rated current -10°C

55,35 A
Rated current -5°C

53,24 A
Rated current at 0°C

51,51 A
Rated current 5°C

49,78 A
Rated current 10°C

48,06 A
Rated current 15°C

46,33 A
Rated current at 20°C

44,60 A
Rated current 25°C

42,87 A
Rated current 30°C

40 A
Rated current 35°C

39,41 A
Rated current at 40°C

37,69 A
Rated current at 45°C

35,96 A
Rated current at 50°C

34,99 A
Rated current 55°C

32,50 A
Rated current 60°C

30,77 A
Rated current 65°C

29,04 A
Rated current 70°C

27,31 A

Type of pole

2P
Curve

D

Number of modules

2

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA
Nominal tightening torque top terminal

2,80-2,80 Nm
Nominal tightening torque down terminal

2,80-2,80 Nm

Rated operational voltage Ue

415-415 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50-60 Hz

Cross-section of input and output with screws, for massive conductors

1-35 mm²
Cross-section of input and output with screws, for flexible conductors

1-25 mm²
Cross-section of input with screws, for flexible conductors

1-25 mm²
Cross-section of input with screws, for massive conductors

1-35 mm²

Nominal tightening torque

2,80-2,80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Ingress Protection (IP) class

IP20

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Operating temperature

-25-70 °C

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

84,60 mm
Width

35 mm
Depth

70 mm
