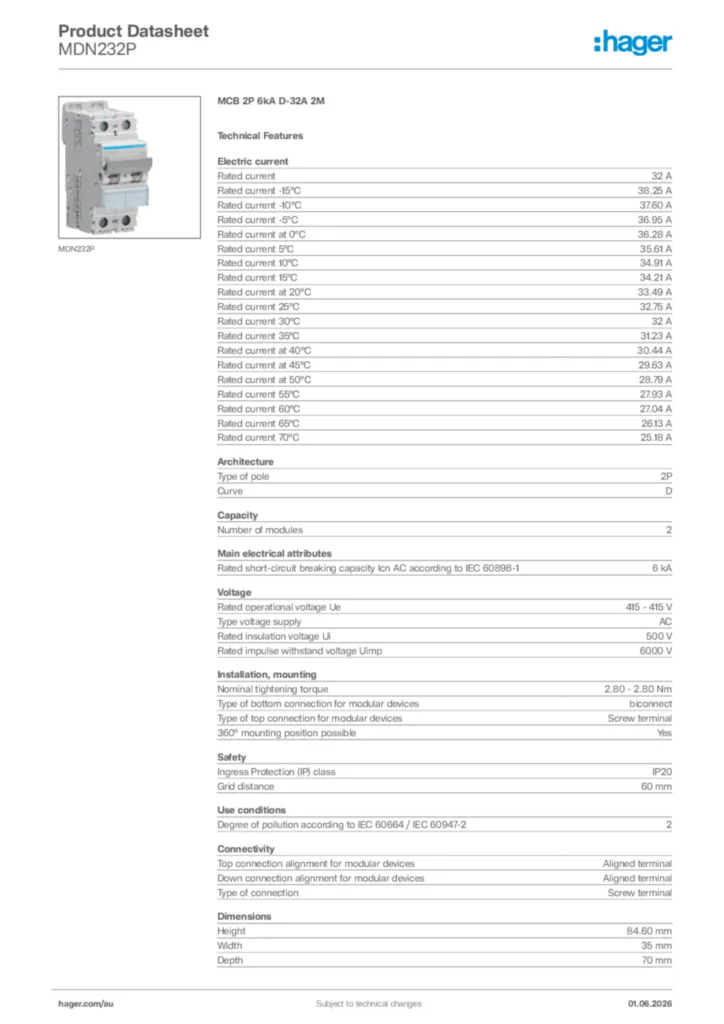

MCB 2P 6kA D-32A 2M MDN232P
EAN
3250614353147
Packaging
6
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
AOB electronic TPN type A 3 products available
-
Mechanic accessories for low-voltage components 1 products available
-
Auxiliaries contact block 2 products available
-
Shunt release 2 products available
-
Under voltage coil 1 products available
-
See more 3 other products available
Complete your system
Technical properties
Electric current
-
Rated current32 A
-
Rated current -15°C38,25 A
-
Rated current -10°C37,60 A
-
Rated current -5°C36,95 A
-
Rated current at 0°C36,28 A
-
Rated current 5°C35,61 A
-
Rated current 10°C34,91 A
-
Rated current 15°C34,21 A
-
Rated current at 20°C33,49 A
-
Rated current 25°C32,75 A
-
Rated current 30°C32 A
-
Rated current 35°C31,23 A
-
Rated current at 40°C30,44 A
-
Rated current at 45°C29,63 A
-
Rated current at 50°C28,79 A
-
Rated current 55°C27,93 A
-
Rated current 60°C27,04 A
-
Rated current 65°C26,13 A
-
Rated current 70°C25,18 A
Architecture
-
Type of pole2P
-
CurveD
Capacity
-
Number of modules2
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-16 kA
-
Nominal tightening torque top terminal2,80-2,80 Nm
-
Nominal tightening torque down terminal2,80-2,80 Nm
Voltage
-
Rated operational voltage Ue415-415 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp6000 V
Frequency
-
Frequency50-60 Hz
Connection
-
Cross-section of input and output with screws, for massive conductors1-35 mm²
-
Cross-section of input and output with screws, for flexible conductors1-25 mm²
-
Cross-section of input with screws, for flexible conductors1-25 mm²
-
Cross-section of input with screws, for massive conductors1-35 mm²
Installation, mounting
-
Nominal tightening torque2,80-2,80 Nm
-
Type of bottom connection for modular devicesbiconnect
-
Type of top connection for modular devicesScrew terminal
-
360° mounting position possibleYes
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Degree of pollution according to IEC 60664 / IEC 60947-22
-
Operating temperature-25-70 °C
Connectivity
-
Type of connectionScrew terminal
-
Top connection alignment for modular devicesAligned terminal
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height84,60 mm
-
Width35 mm
-
Depth70 mm
