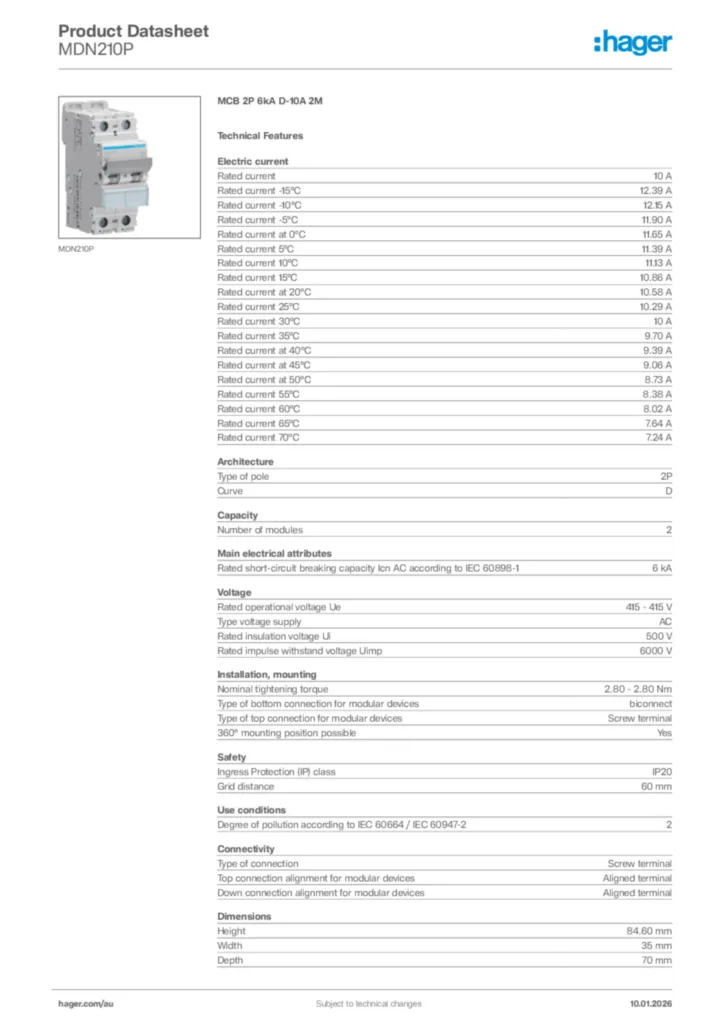

MDN210P - MCB 2P 6kA D-10A 2M
MDN210P - MCB 2P 6kA D-10A 2M

MCB 2P 6kA D-10A 2M MDN210P

EAN
3250614353109
Packaging
6 PCEs

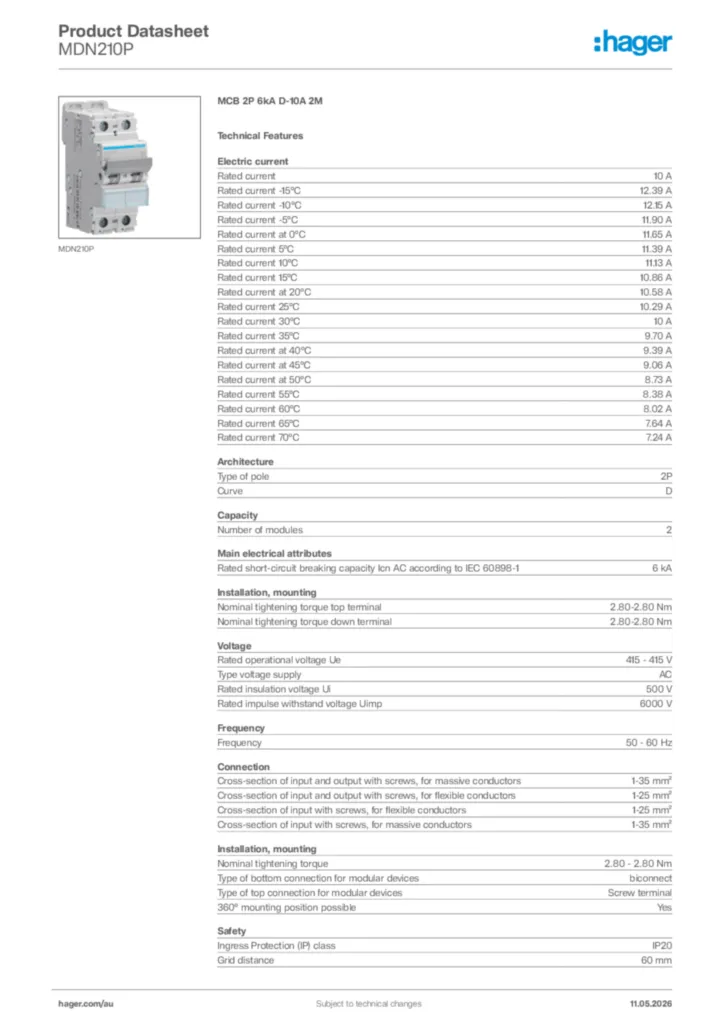

Technical properties

Architecture
  • Neutral position
    without neutral
  • Number of protected poles
    2
  • Number of poles
    2 P
  • Type of pole
    2 P
  • Curve
    D
Functions
  • Concurrently switching N-neutral
    No
Configuration
  • Number of modules
    2
Connectivity
  • Top connection alignement for modular devices
    Aligned terminal
  • Bottom connection alignement for modular devices
    Aligned terminal
Main electrical features
  • Rated operational voltage Ue
    415 V
  • Type of supply voltage
    AC
Voltage
  • Rated insulation voltage
    500 V
  • Rated impulse withstand voltage
    6000 V
  • Minimum threshold voltage (Ue min)
    12 V
Electric current
  • Rated current
    10 A
  • min/maxi threshold value of the AC thermal operation
    1.13 / 1.45 In
  • Rated short circuit breaking capacity Icn under 400V AC according IEC60898-1
    6 kA
  • Rated short circuit breaking capacity Icn under 415V AC according IEC 60898-1
    6 kA
Electric current / temperature
  • Rating current -25°C
    12.86 A
  • Rating current -20°C
    12.63 A
  • Rating current -15°C
    12.39 A
  • Rating current -10°C
    12.15 A
  • Rating current -5°C
    11.9 A
  • Rating current 0°C
    11.65 A
  • Rating current 5°C
    11.39 A
  • Rating current 10°C
    11.13 A
  • Rating current 25°C
    10.29 A
  • Rating current 30°C
    10 A
  • Rating current 35°C
    9.7 A
  • Rating current 40°C
    9.39 A
  • Rating current 45°C
    9.06 A
  • Rating current 50°C
    8.73 A
  • Rating current 55°C
    8.38 A
  • Rating current 60°C
    8.02 A
  • Rating current 65°C
    7.64 A
  • Rating current 70°C
    7.24 A
Dimensions
  • Depth of installed product
    70 mm
  • Height of installed product
    84.6 mm
  • Width of installed product
    35 mm
Frequency
  • Frequency
    50 to 60 Hz
Installation, mounting
  • Type of top connection for modular devices
    with screw
  • Tightening torque
    2,8Nm
  • Type of top rail clip for modular devices
    Plastic
  • Type of bottom rail clip for modular devices
    plastic
  • Type of Bottom Connection for modular devices
    BIconnect
  • Top removability for modular devices
    Yes
  • Bottom removability for modular devices
    Yes
  • Suitable for flush-mounting
    Yes
Connection
  • Connection cross-section at output with screw, for flexible conductor
    1 / 25 mm²
  • Connection cross-section at output with screw, for massive conductor
    1 / 35 mm²
  • Connection cross-section for rigid conductor, upstream terminals with screws
    1 / 35 mm²
  • Connection cross-section of the access with screws, with flexible conductor
    1 / 25 mm²
  • Downstream cage clamp delivery status
    opened
  • Upstream cage clamp delivery status
    opened
Equipment
  • Can be accessorized
    Yes
  • With transparent product label holder
    Yes
Standards
  • Standard text
    EN 60898-1 ; AS/NZS 60898-1
  • European directive WEEE
    concerned
Safety
  • Protection index IP
    IP20
  • REACH conform
    No
  • RoHS conform
    Yes
  • Halogen free
    No
Use conditions
  • Operating temperature
    -25…70 °C
  • Degree of pollution according to IEC 60664 / IEC 60947-2
    2
  • Altitude
    2000 m
  • Storage/transport temperature
    -25…80 °C
temperatur
  • Temperature of calibration
    30 °C
