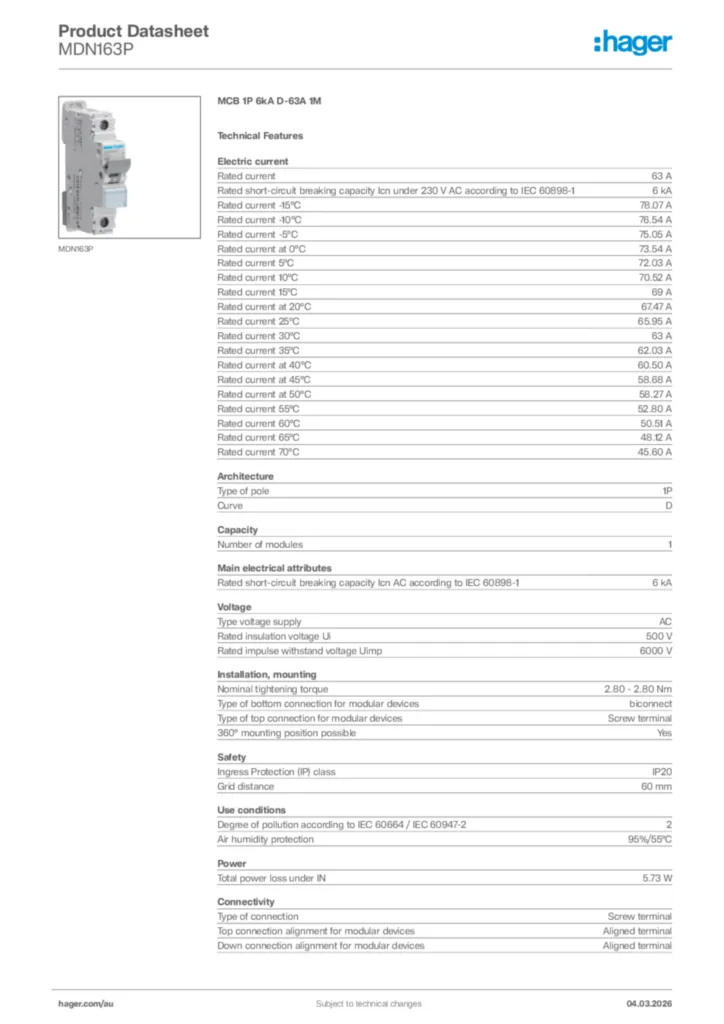

MCB 1P 6kA D-63A 1M MDN163P

EAN

3250614353659

Packaging

12

Accessories
Technical properties
More products

Download the data sheet

Complete your system

Optional accessories

AOB electronic TPN type A 3 products available
Mechanic accessories for low-voltage components 1 products available
Auxiliaries contact block 2 products available
Shunt release 2 products available
Under voltage coil 1 products available
See more 3 other products available

Technical properties

Rated current

63 A
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

6 kA
Rated current -15°C

78,07 A
Rated current -10°C

76,54 A
Rated current -5°C

75,05 A
Rated current at 0°C

73,54 A
Rated current 5°C

72,03 A
Rated current 10°C

70,52 A
Rated current 15°C

69 A
Rated current at 20°C

67,47 A
Rated current 25°C

65,95 A
Rated current 30°C

63 A
Rated current 35°C

62,03 A
Rated current at 40°C

60,50 A
Rated current at 45°C

58,68 A
Rated current at 50°C

58,27 A
Rated current 55°C

52,80 A
Rated current 60°C

50,51 A
Rated current 65°C

48,12 A
Rated current 70°C

45,60 A

Type of pole

1P
Curve

D

Number of modules

1

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA
Nominal tightening torque top terminal

2,80-2,80 Nm
Nominal tightening torque down terminal

2,80-2,80 Nm

Rated operational voltage Ue

240-415 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50-60 Hz

Cross-section of input and output with screws, for massive conductors

1-35 mm²
Cross-section of input and output with screws, for flexible conductors

1-25 mm²
Cross-section of input with screws, for flexible conductors

1-25 mm²
Cross-section of input with screws, for massive conductors

1-35 mm²

Nominal tightening torque

2,80-2,80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Ingress Protection (IP) class

IP20

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Air humidity protection

95%/55°C
Operating temperature

-25-70 °C

Total power loss under IN

5,73 W

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

84,60 mm
Width

17,70 mm
Depth

70 mm
