MCB 1P 6kA D-16A 1M MDN116P

EAN
3250614352997
Packaging
12

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

MCB 1P 6kA D-16A 1M

MDN116P

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products

Complete your system

Optional accessories

  • See more (12)
    • Locking inter­locking func­tions 1 products available
    • Phase separ­a­tion func­tions 1 products available
    • Terminal cover 1 products available
    • Mech­anic accessories for low-­voltage compon­ents 1 products available

    Compatible products

    • Suitable with 10 products available

    Complete your system

    • Locking inter­locking func­tions
    • Phase separ­a­tion func­tions
    • Terminal cover
    • Mech­anic accessories for low-­voltage compon­ents
    • Under voltage coil
    • Shunt release
    • Auxil­i­aries contact block
    • AOB electronic TPN type A
    • AOB elec­tronic TPN type A
    • MZN175

      Padlockable locking kit for MCB, RCCB and RCBO
      EUR 0.00  / *
    • MZN121

      1 set of 3 inter-pole barriers for MCB
      EUR 0.00  / *
    • MZN120

      Terminal shield / screw shield for MCB
      EUR 0.00  / *
    • LZ060

      Heat dissipation insert
      EUR 0.00  / *
    • MZ206

      Under voltage release 230V AC
      EUR 0.00  / *
    • MZ204

      Shunt trip 24-48V AC 12-48V DC
      EUR 0.00  / *
    • MZ203

      Shunt trip 230-415V AC 110-130V DC
      EUR 0.00  / *
    • MZ202

      Alarm contact 1C+1O 6A 240V AC
      EUR 0.00  / *
    • MZ201

      Auxiliary contact 1C+1O 6A 240V AC
      EUR 0.00  / *
    • BE163T

      Earth leakage add-on-block 3P 63A 100mA A Class 1mod
      EUR 0.00  / *
    • BF163T

      Earth leakage add-on-block 3P 63A 300mA A Class 1mod
      EUR 0.00  / *
    • BD163T

      Earth leakage add-on-block 3P 63A 30mA A Class 1mod
      EUR 0.00  / *

    Suitable with

    • JVC2400S16TW

      160A TPN board, INVICTA, 24P Chassis, ISO-STD-GR
      EUR 0.00  / *
    • JVC3600S16TW

      160A TPN board, INVICTA, 36P Chassis, ISO-STD-GR
      EUR 0.00  / *
    • JVC4800S16TW

      250A TPN board, INVICTA, 48P Chassis , ISO-STD-GR
      EUR 0.00  / *
    • JVC2400S25TW

      160A TPN board, INVICTA, 24P Chassis, ISO-STD-GR
      EUR 0.00  / *
    • JVC3600S25TW

      250A TPN board, INVICTA, 36P Chassis, ISO-STD-GR
      EUR 0.00  / *
    • JVC4800S25TW

      250A TPN board, INVICTA, 48P Chassis , ISO-STD-GR
      EUR 0.00  / *
    • JVC6000S16TW

      160A TPN board, INVICTA, 60P Chassis , ISO-STD-GR
      EUR 0.00  / *
    • JVC7200S16TW

      160A TPN board, INVICTA, 72P Chassis , ISO-STD-GR
      EUR 0.00  / *
    • JVC6000S25TW

      250A TPN board, INVICTA, 60P Chassis , ISO-STD-GR
      EUR 0.00  / *
    • JVC7200S25TW

      250A TPN board, INVICTA, 72P Chassis , ISO-STD-GR
      EUR 0.00  / *

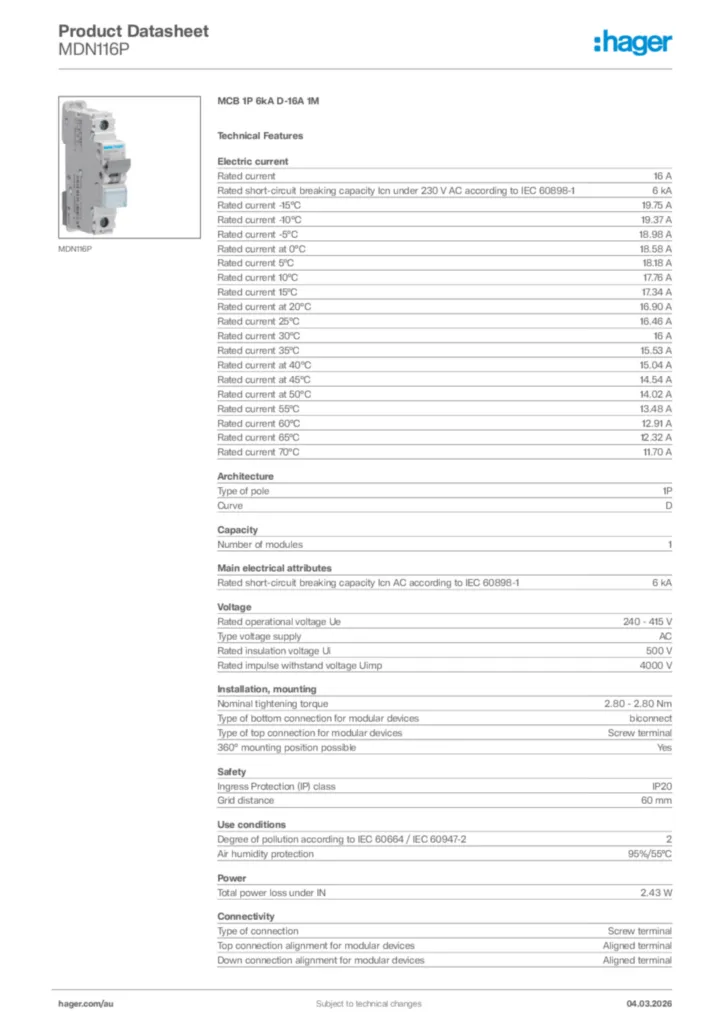

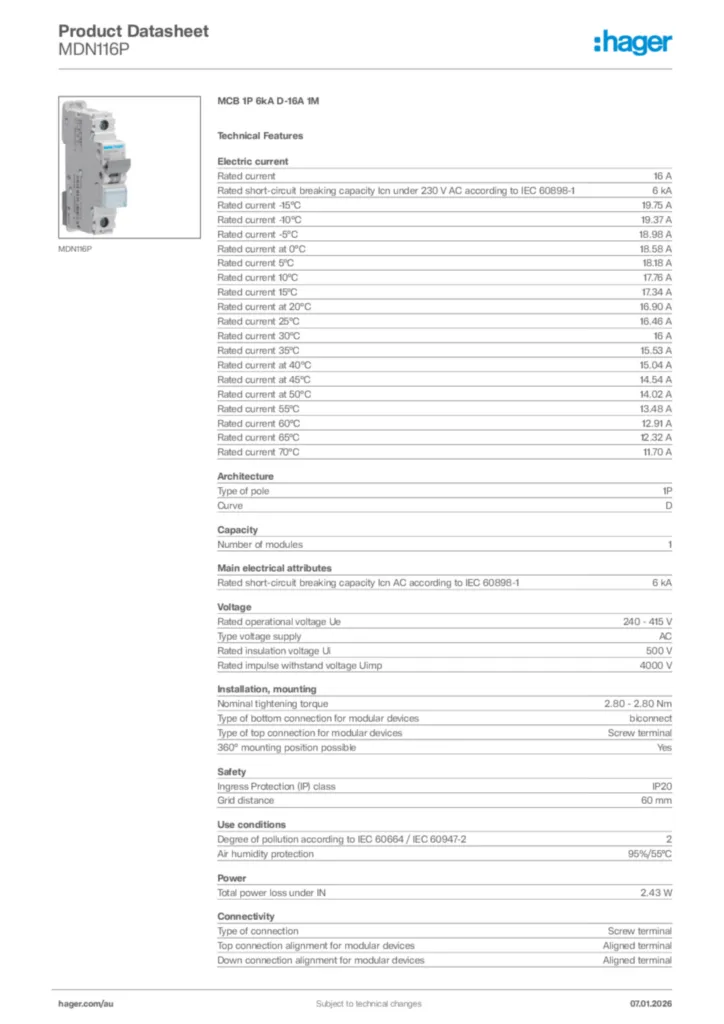

    Technical properties

    Elec­tric current
    • Rated current
      16 A
    • Rated short-­cir­cuit breaking capa­city Icn under 230 V AC according to IEC 60898-1
      6 kA
    • Rated current -15°C
      19,75 A
    • Rated current -10°C
      19,37 A
    • Rated current -5°C
      18,98 A
    • Rated current at 0°C
      18,58 A
    • Rated current 5°C
      18,18 A
    • Rated current 10°C
      17,76 A
    • Rated current 15°C
      17,34 A
    • Rated current at 20°C
      16,90 A
    • Rated current 25°C
      16,46 A
    • Rated current 30°C
      16 A
    • Rated current 35°C
      15,53 A
    • Rated current at 40°C
      15,04 A
    • Rated current at 45°C
      14,54 A
    • Rated current at 50°C
      14,02 A
    • Rated current 55°C
      13,48 A
    • Rated current 60°C
      12,91 A
    • Rated current 65°C
      12,32 A
    • Rated current 70°C
      11,70 A
    Archi­tec­ture
    • Type of pole
      1P
    • Curve
      D
    Capa­city
    • Number of modules
      1
    Install­a­tion, mounting
    • Nominal tight­ening torque
      2,80 - 2,80 Nm
    • Type of bottom connec­tion for modular devices
      bicon­nect
    • Type of top connec­tion for modular devices
      Screw terminal
    • 360° mounting posi­tion possible
      Yes
    Main elec­trical attrib­utes
    • Rated short-­cir­cuit breaking capa­city Icn AC according to IEC 60898-1
      6 kA
    Voltage
    • Rated oper­a­tional voltage Ue
      240 - 415 V
    • Type voltage supply
      AC
    • Rated insu­la­tion voltage Ui
      500 V
    • Rated impulse with­stand voltage Uimp
      4000 V
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    • Grid distance
      60 mm
    Use condi­tions
    • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
      2
    • Air humidity protec­tion
      95%/55°C
    Power
    • Total power loss under IN
      2,43 W
    Connectivity
    • Type of connec­tion
      Screw terminal
    • Top connec­tion align­ment for modular devices
      Aligned terminal
    • Down connec­tion align­ment for modular devices
      Aligned terminal
    Dimen­sions
    • Height
      84,60 mm
    • Width
      17,70 mm
    • Depth
      70 mm
