Hager The Hager QuickConnect phase terminal with 18 connections provides rapid, tool-free distribution of the phase conductor in distribution boards. Its QuickConnect spring technology ensures secure, vibration‑resistant contacts and faster installation, reducing wiring time. Compact design saves space while enabling neat, scalable branching for residential and commercial panels.

EAN

3250613849344

Packaging

1 Piece

vega D Accessories

Phase terminal block QuickConnect 18 connections KN18P

Accessories
Technical properties
Environmental value
Documentations
More products

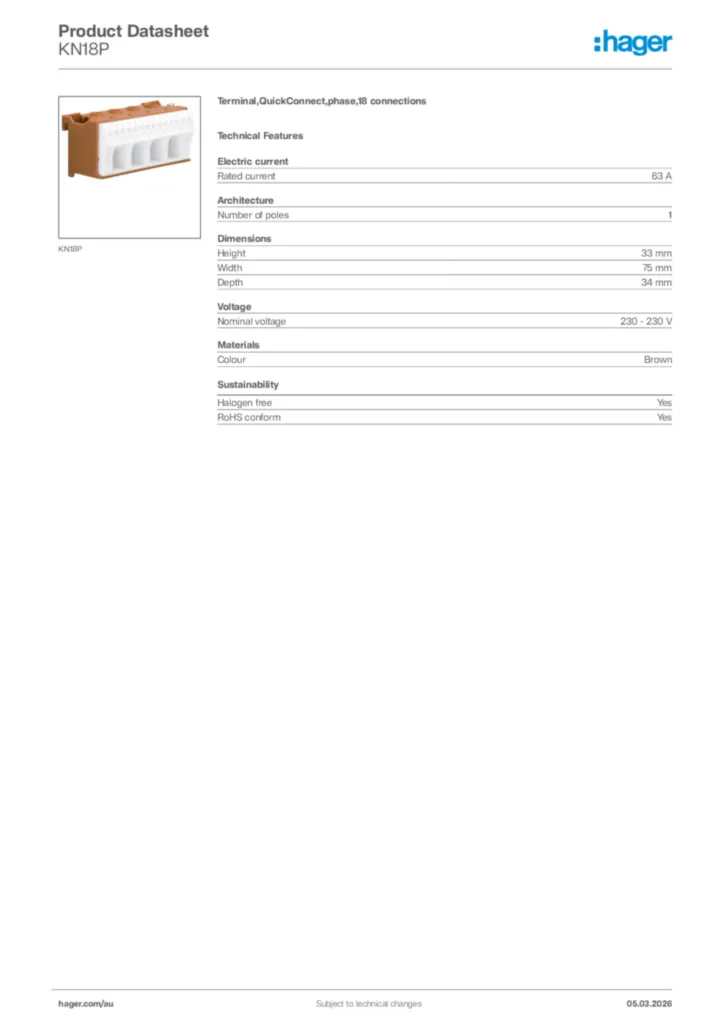

Download the data sheet

Complete your system

Push-in terminal 1 products available

Suitable with 1 products available

Technical properties

Rated current

63 A

Number of poles

1
Type of pole

1P

Height

33 mm
Width

75 mm
Depth

34 mm

Nominal voltage

230 - 230 V
Rated insulation voltage Ui

400 V

Colour

Brown
Material

Polyamide (PA)
RAL code

8014

Type of connection

Feather/spring course connection

Cross-section of input and output with screws, for flexible conductors

1,5 - 25,0 mm²
Cross-section of input and output with screws, for massive conductors

1,5 - 25,0 mm²
