Hager The Hager QuickConnect earth terminal with 26 connections delivers fast, tool-free PE distribution in electrical panels. Rated 63 A at 230 V, it suits residential and light commercial installations. Its 1-pole design and compact 33 × 105 × 34 mm size save space while ensuring secure grounding, reliable performance, and tidy wiring. Ideal for quick, safe earthing in switchboards.

EAN

3250613849061

Packaging

1 Piece

vega D Accessories

Earth terminal QuickConnect 26 connections 63A KN26E

Accessories
Technical properties
Environmental value
Documentations
More products

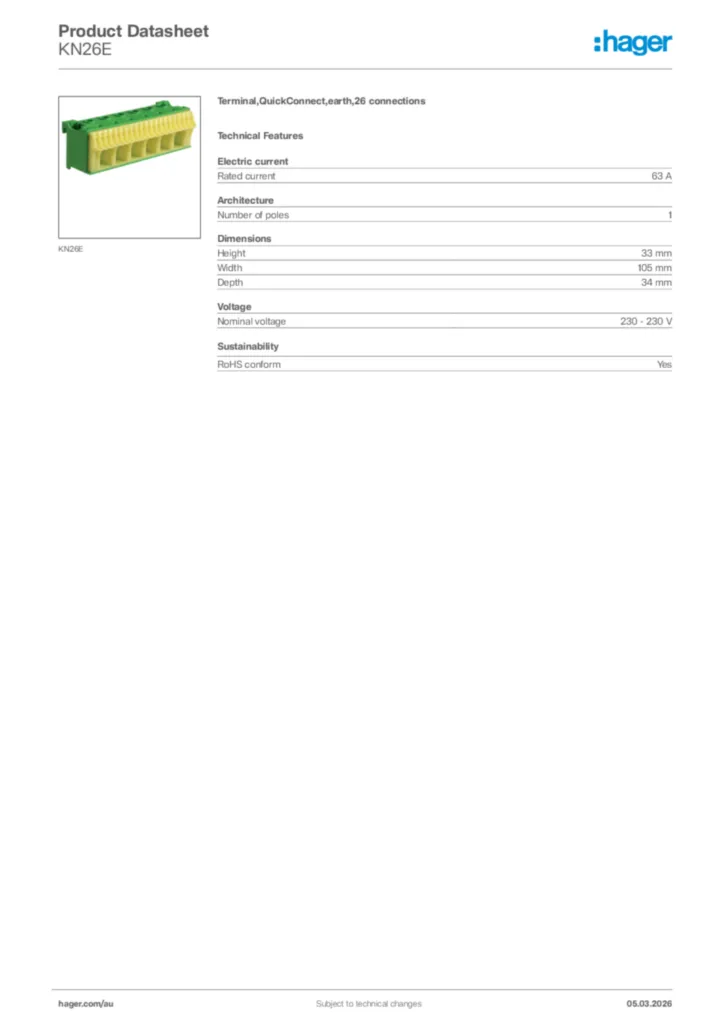

Download the data sheet

Complete your system

Push-in terminal 1 products available

Suitable with 1 products available

Technical properties

Rated current

63 A

Number of poles

1
Type of pole

1P

Height

33 mm
Width

105 mm
Depth

34 mm

Nominal voltage

230 - 230 V
Rated insulation voltage Ui

400 V

Material

Polyamide (PA)
RAL code

6032

Type of connection

Feather/spring course connection

Cross-section of input and output with screws, for flexible conductors

1,5 - 25,0 mm²
Cross-section of input and output with screws, for massive conductors

1,5 - 25,0 mm²
