    EAN
    3250613740481
    Packaging
    1 Piece
    • Busbars and Connectors

    Insulated busbar 1P 100A fork 20mm² 57M KD190B

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Insulated busbar 1P 100A fork 20mm² 57M

    KD190B

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Protective cap/strip for phase busbar 1 products available

    Complete your system

    • Protective cap/strip for phase busbar
    • KZ059

      Protective cover fork KDN & KDS
      EUR 0.00  / *

    Technical properties

    Elec­tric current
    • Rated current
      100 A
    Archi­tec­ture
    • Number of poles
      1
    Dimen­sions
    • Length
      1000 mm
    Voltage
    • Rated impulse with­stand voltage Uimp
      4000 V
    • Rated oper­a­tional voltage Ue
      415 - 415 V
    Connec­tion
    • Cross-sec­tion rigid conductor
      20 mm²
    • Connect­or/plug type
      Phase busbar with fork
    Capa­city
    • Number of modules
      57

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    Hager REACH declaration KD190B
    PDF
    Hager RoHS report KD190B
    PDF

    Downloads

    • Product image

      Image KD190B | Hager Australia

      Product Image KD190B

    • Product datasheet

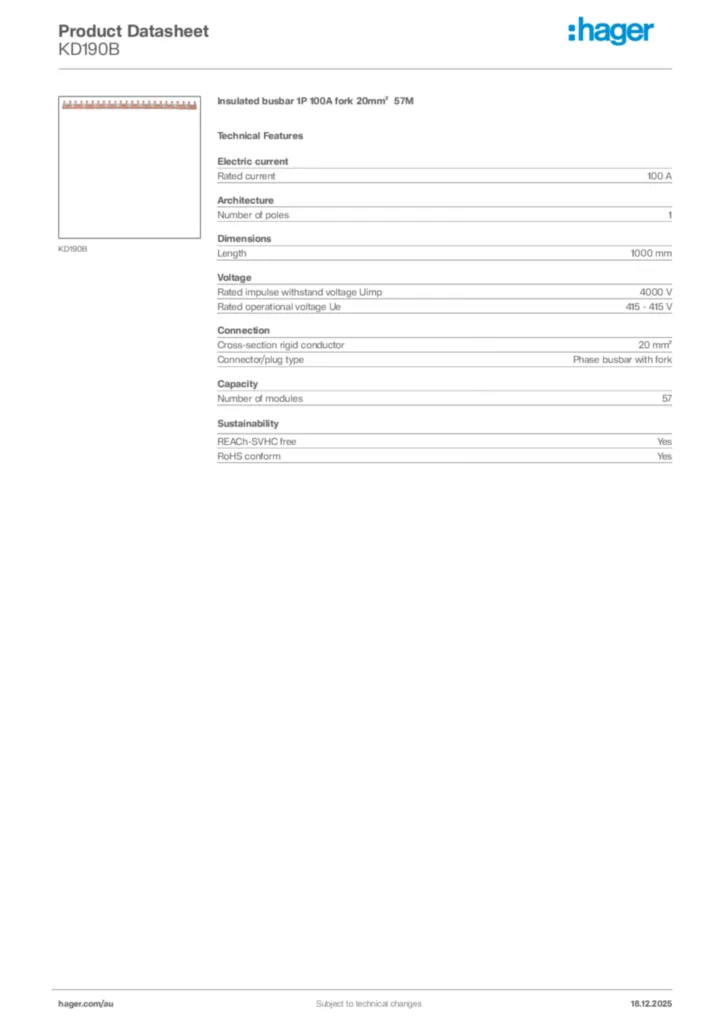

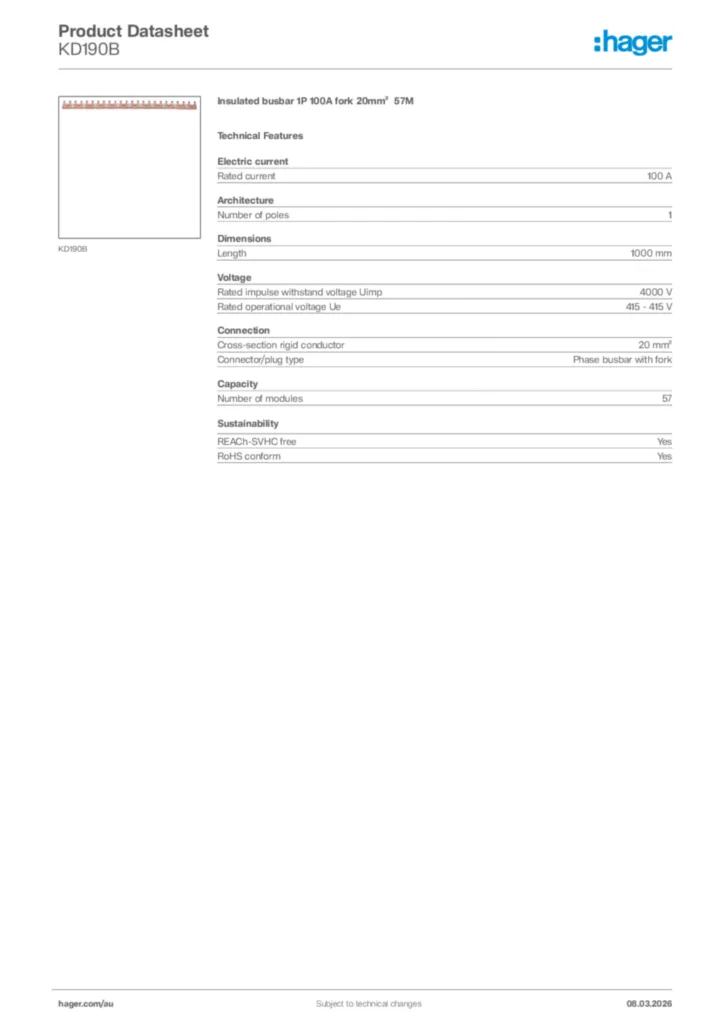

      Image Hager Product data sheet KD190B | Hager Australia

      Hager Product data sheet KD190B

      Insulated busbar 1P 100A fork 20mm² 57M

      PDF

    • Declaration of conformity

      Image Declaration of conformity en-GB 2026-01-12 | Hager Australia

      Declaration of conformity en-GB 2026-01-12

      PDF
      364,15 kB
      Image Declaration of conformity en-GB 2026-01-12 | Hager Australia

      Declaration of conformity en-GB 2026-01-12

      PDF
      386,96 kB
