Hager Isolator 2P 1P+N 40A IP66 250V AC 50/60Hz JG240IN
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Number of poles2
-
Type of pole1P+N
Electric current
-
Rated current40 A
-
Acceptable current rating AC2140 A
-
Acceptable current rating AC21 category A40 A
-
Rated short-time withstand current Icw IEC 609470,48 kA
-
Acceptable current rating AC22 category A40 A
-
Rated short-circuit making capacity Icm under 240 V AC according to IEC 60947-30,48 kA
-
Acceptable current rating AC23 category A40 A
-
Rated short-time withstand current Icw t=1s 220 - 240 V AC according to IEC 60947 - 30,48 kA
Voltage
-
Rated operational voltage Ue250 - 250 V
-
Rated insulation voltage Ui440 V
Installation, mounting
-
Nominal tightening torque2,50 - 2,50 Nm
Dimensions
-
Height170 mm
-
Width84 mm
-
Depth87 mm
Power
-
Rated operational power under 400 V AC AC236500 W
Safety
-
Ingress Protection (IP) classIP66
Use conditions
-
Operating temperature-5 - 40 °C
Connection
-
Cross-section rigid conductor6 - 10 mm²
Frequency
-
Frequency50 - 60 Hz
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

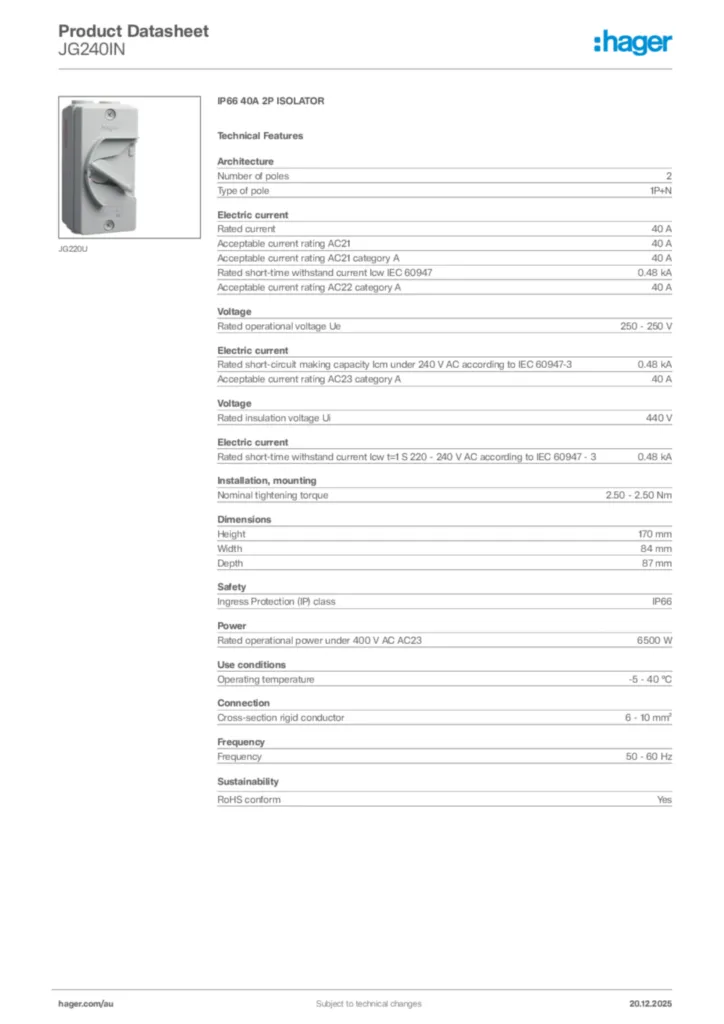

Hager Product data sheet JG240IN
