Isolator Switch IP66 40A 3P+N 380-440V AC23A JG440IN
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Architecture
-
Number of poles4
-
Type of pole3P+N
Electric current
-
Rated current IN40 A
-
Acceptable current rating AC2140 A
-
Acceptable current rating AC21 category A40 A
-
Rated short-time withstand current Icw IEC 609470,48 kA
-
Acceptable current rating AC22 category A40 A
-
Acceptable current rating AC23 category A40 A
Voltage
-
Rated operational voltage Ue380 - 440 V
-
Rated insulation voltage Ui440 V
Installation, mounting
-
Nominal tightening torque2,50 - 2,50 Nm
Dimensions
-
Height170 mm
-
Width84 mm
-
Depth87 mm
Power
-
Rated operational power under 400 V AC AC2319800 W
Safety
-
Ingress Protection (IP) classIP66
Use conditions
-
Operating temperature-5 - 40 °C
Connection
-
Cross-section rigid conductor6 - 10 mm²
Frequency
-
Frequency50 - 60 Hz
catalog.pageproduct.title_sustainability.h2
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
Product image
-
GeneratedProductDatasheet

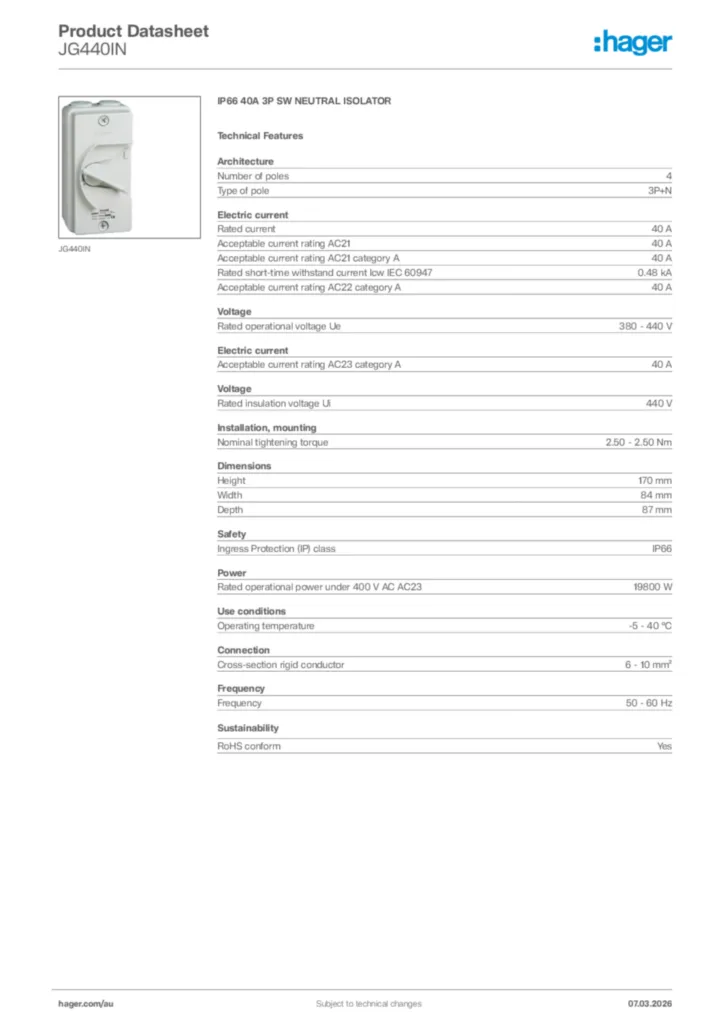

Hager Product data sheet JG440IN
IP66 40A 3P SW NEUTRAL ISOLATOR
PDF -
ProductInstallationManual
User instructions for JGxxxIN
Installation manual International 2010-02-11
PDF955,55 kB -
ProductDataSheet
JG Weatherproof Isolators Data Sheet
Product data sheet en-GB 2016-03-15
PDF120,29 kB -
ProductECDeclaration
Declaration of conformity en-US 2026-07-14
PDF259,78 kB
