Hager The Hager IP66 63A 3P+N switch-disconnector provides safe isolation for three-phase installations, including outdoor or harsh environments. Rated 63A across AC21/AC22/AC23 with 380-440 V operation (31.2 kW at 400 V AC23) and 50-60 Hz, it switches phase and neutral, offers Icw 0.75 kA, and accepts 10-16 mm² conductors. IP66 enclosure ensures dust-tight, water-resistant performance for industrial and commercial loads.
EAN
3250617509787
Packaging
1 Piece
Isolator Switch 3P+N 63A IP66 Weatherproof 380-440V AC23A JG463IN
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Number of poles4
-
Type of pole3P+N
Electric current
-
Rated current63 A
-
Acceptable current rating AC2163 A
-
Acceptable current rating AC21 category A63 A
-
Rated short-time withstand current Icw IEC 609470,75 kA
-
Acceptable current rating AC22 category A63 A
-
Acceptable current rating AC23 category A63 A
Voltage
-
Rated operational voltage Ue380 - 440 V
-
Rated insulation voltage Ui440 V
Installation, mounting
-
Nominal tightening torque2,50 - 2,50 Nm
Dimensions
-
Height170 mm
-
Width84 mm
-
Depth87 mm
Power
-
Rated operational power under 400 V AC AC2331200 W
Safety
-
Ingress Protection (IP) classIP66
Use conditions
-
Operating temperature-5 - 40 °C
Connection
-
Cross-section rigid conductor10 - 16 mm²
Frequency
-
Frequency50 - 60 Hz
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

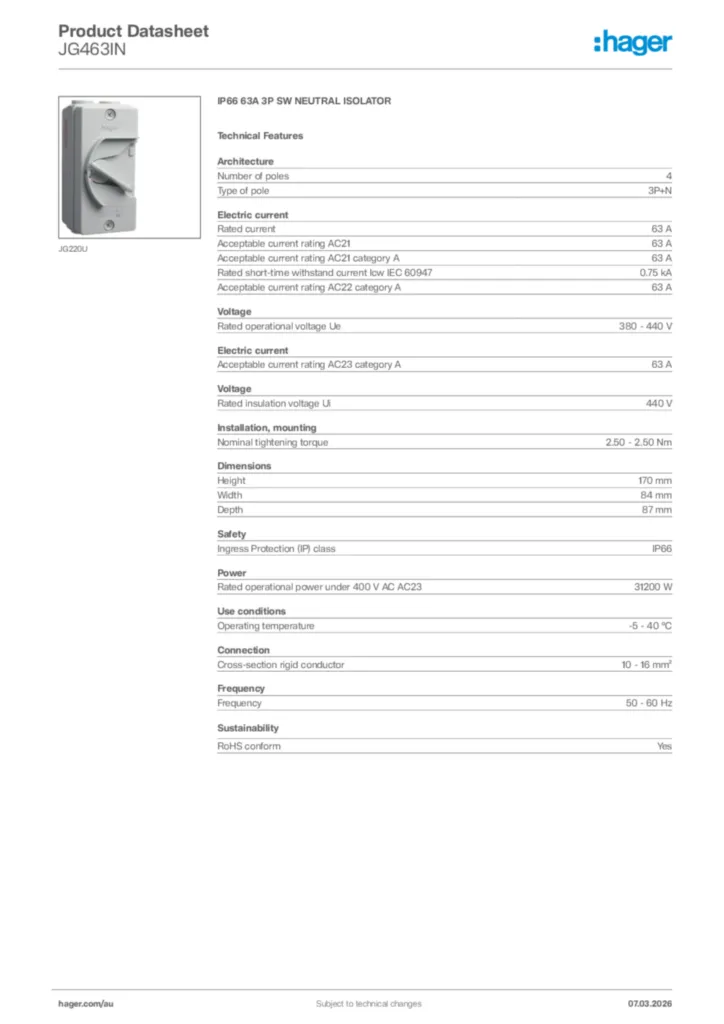

Hager Product data sheet JG463IN
IP66 63A 3P SW NEUTRAL ISOLATOR
PDF -
Installation manual
User instructions for JGxxxIN
Installation manual International 2010-02-11
PDF955,55 kB -
Product data sheet
JG Weatherproof Isolators Data Sheet
Product data sheet en-GB 2016-03-15
PDF120,29 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-08-25
PDF492,64 kB
