            HNE800H - Moulded Case Circuit Breaker h1000 3P 50kA 800A LSI
            HNE800H - Moulded Case Circuit Breaker h1000 3P 50kA 800A LSI

            Moulded Case Circuit Breaker h1000 3P 50kA 800A LSI

            HNE800H

            HNE800H - Moulded Case Circuit Breaker h1000 3P 50kA 800A LSI
            HNE800H - Moulded Case Circuit Breaker h1000 3P 50kA 800A LSI
            • Main Switchgear

            Moulded Case Circuit Breaker h1000 3P 50kA 800A LSI HNE800H

            EAN
            3250613349738
            Packaging
            1 Piece

            You have to log in with your myHager profile to see prices and to order.

            Add to a list
            Add to a list

            Login to create a product list

            You need to be logged into your myHager account to create product lists

            Create an account Sign in
            • Accessories
            • Technical properties
            • Environmental value
            • Documentations
            • More products

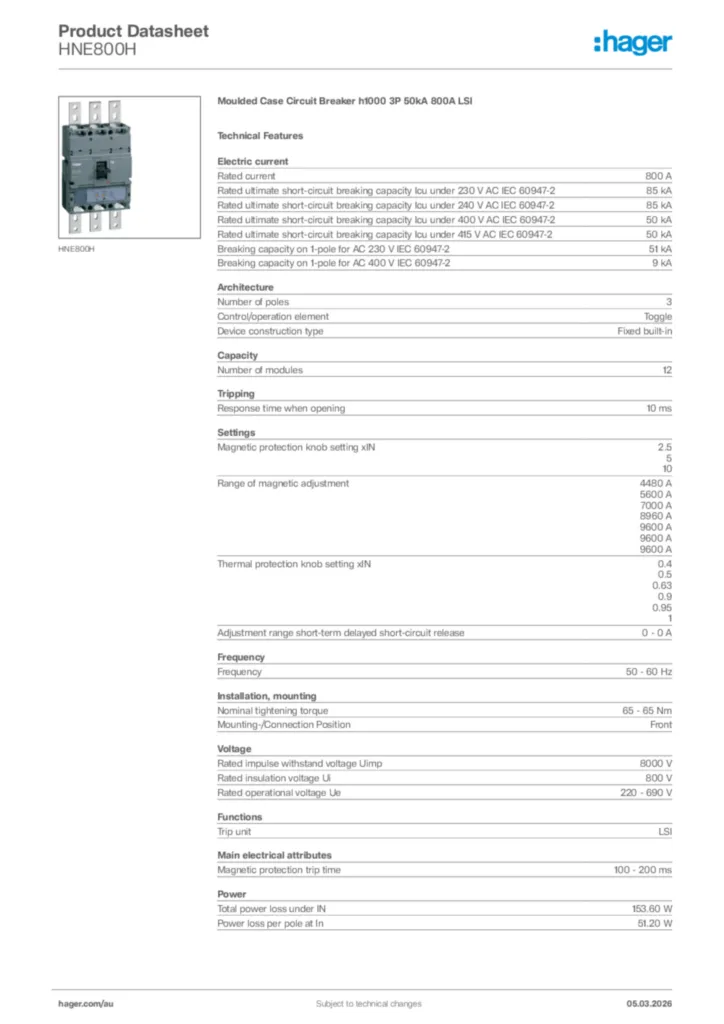

            Download the data sheet

            Complete your system

            Optional accessories

            • Auxil­i­aries inter­locking cable 2 products available
            • Shunt release 5 products available
            • Auxil­i­aries contact block 2 products available
            • Padlock barrier for switch 1 products available
            • Under voltage coil 4 products available
            • See more 8 other products available

            Complete your system

            • Auxil­i­aries inter­locking cable
            • Shunt release
            • Auxil­i­aries contact block
            • Padlock barrier for switch
            • Under voltage coil
            • Handle for power circuit breaker
            • Motor oper­ator
            • Locking inter­locking func­tions
            • Connec­tion Func­tions
            • Terminal cover
            • HXB069H

              Electrical interlock for Motor type B (x250-P250-h250-h400-h630-h800-h1000)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXD068H

              Electrical interlock for Motor type A (h400-h630-x630-P630-h800-h1000)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXC001H

              Shunt trip Release 24V DC (h250-h400-h630-h800-h1000)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXC002H

              Shunt trip Release 48V DC (h250-h400-h630-h800-h1000)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXC003H

              Shunt trip Release 100-120V AC (h250-h400-h630-h800-h1000)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXC004H

              Shunt trip Release 200-240V AC (h250-h400-h630-h800-h1000)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXC005H

              Shunt trip Release 380-450V AC (h250-h400-h630-h800-h1000)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXC021H

              Auxiliary contact 1NO+1NC 230V AC (h250-h400-h630-h800-h1000-h1600)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXC024H

              Alarm contact 1NO+1NC 230V (h250-h400-h630-h800-h1000-h1600)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXD039H

              Padlock h400-h1000

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXE011H

              UVR 24V DC (h800-h1000-h1600)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXE013H

              UVR 110-120V AC (h800-h1000-h1600)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXE014H

              UVR 220-240V AC (h800-h1000-h1600)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXE015H

              UVR 380-415V AC (h800-h1000-h1600)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXE030H

              Direct rotary handle H800-H1000

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXE031H

              Extended rotary handle H800-H1000

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXE040H

              Motor operator h800-h1000 24-48V DC

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXE042H

              Motor operator H800-H1000 100-240VAC

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXE065H

              Interlocking wire type H800-H1000

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HYE031H

              Rear connexion H800-H1000 3P

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HYE021H

              Terminal cover H800-H1000 3P long

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HYE025H

              Terminal cover H800-H1000 3P short

              EUR 0.00  / *
              Add to a list
              Add to a list

            Technical properties

            Elec­tric current
            • Rated current
              800 A
            • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 230 V AC IEC 60947-2
              85 kA
            • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 240 V AC IEC 60947-2
              85 kA
            • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 400 V AC IEC 60947-2
              50 kA
            • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 415 V AC IEC 60947-2
              50 kA
            • Breaking capa­city on 1-pole for AC 230 V IEC 60947-2
              51 kA
            • Breaking capa­city on 1-pole for AC 400 V IEC 60947-2
              9 kA
            Archi­tec­ture
            • Number of poles
              3
            • Control/­op­er­a­tion element
              Toggle
            • Device construc­tion type
              Fixed built-in
            Capa­city
            • Number of modules
              12
            Trip­ping
            • Response time when opening
              10 ms
            Settings
            • Magnetic protec­tion knob setting xIN
              2.5, 5, 10
            • Range of magnetic adjust­ment
              4480 A, 5600 A, 7000 A, 8960 A, 9600 A, 9600 A, 9600 A
            • Thermal protec­tion knob setting xIN
              0.4, 0.5, 0.63, 0.9, 0.95, 1
            • Adjust­ment range short-term delayed short-­cir­cuit release
              0 - 0 A
            Frequency
            • Frequency
              50 - 60 Hz
            Install­a­tion, mounting
            • Nominal tight­ening torque
              65 - 65 Nm
            • Mount­ing-/­Con­nec­tion Posi­tion
              Front
            Voltage
            • Rated impulse with­stand voltage Uimp
              8000 V
            • Rated insu­la­tion voltage Ui
              800 V
            • Rated oper­a­tional voltage Ue
              220 - 690 V
            Func­tions
            • Trip unit
              LSI
            Main elec­trical attrib­utes
            • Magnetic protec­tion trip time
              100 - 200 ms
            Power
            • Total power loss under IN
              153,60 W
            • Power loss per pole at In
              51,20 W
            Endur­ance
            • Elec­tric endur­ance in number of cycles
              1000
            • Number of mech­an­ical oper­a­tions
              4000
            Equip­ment
            • Number of auxil­iary contacts as change-over contact
              0
            • Number of auxil­iary contacts as normally closed contact
              0
            • Number of auxil­iary contacts as normally open contact
              0
            Safety
            • Ingress Protec­tion (IP) class
              IP4X
            Use condi­tions
            • Oper­ating temper­ature
              -25 - 70 °C
            Connec­tion
            • Cross-sec­tion flex­ible conductor
              2x 240 mm²
            • Cross-sec­tion rigid conductor
              2x 240 mm²
            • Connect­or/plug type
              Terminal
            Controls and indic­ators
            • Motor drive integ­rated
              No
            Compat­ib­ility
            • Suit­able for DIN Rail
              No
            Power supply
            • Posi­tion power supply
              Bidirec­tional

            Environmental value

            We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

            RoHS conform Yes
            REACH conform Yes

            Certifications and documents

            REACH declaration HNE800H (english)
            PDF
            103,10 kB
            RoHS declaration HNE800H (english)
            PDF
            103,59 kB

            Downloads

            • Product image

              Image HNE800H  | Hager Australia

              Product Image HNE800H

            • Installation manual

              Image Installation manual International 2021-06-16  | Hager Australia

              Installation manual International 2021-06-16

              PDF
              7,89 MB
            • Declaration of conformity

              Image Declaration  | Hager Australia

              Declaration

              Declaration of conformity International 2022-06-23

              PDF
              311,82 kB
            More documentation

            Discover more of this product range

              5
            • 1
              HEC040H - Moulded Case Circuit Breaker h250 3P 70kA 40A LSI
              HEC040H
              Moulded Case Circuit Breaker h250 3P 70kA 40A LSI
            • 2
              HEC041H - Moulded Case Circuit Breaker h250 4P 70kA 40A LSI
              HEC041H
              Moulded Case Circuit Breaker h250 4P 70kA 40A LSI
            • 3
              HEC125H - Moulded Case Circuit Breaker h250 3P 70kA 125A LSI
              HEC125H
              Moulded Case Circuit Breaker h250 3P 70kA 125A LSI
            • 4
              HEC126H - Moulded Case Circuit Breaker h250 4P 70kA 125A LSI
              HEC126H
              Moulded Case Circuit Breaker h250 4P 70kA 125A LSI
            • 5
              HEC250H - Moulded Case Circuit Breaker h250 3P 70kA 250A LSI
              HEC250H
              Moulded Case Circuit Breaker h250 3P 70kA 250A LSI

            Products

            • Enclosures
            • DIN rail-mounted devices
            • Main Switchgear
            • Switches and Sockets
            • Motion and Presence Detectors
            • Trunking Systems

            Project Solutions

            • Product and Installations Solutions
            • Case Studies
            • Electrical Contractor Solutions
            • Architects and Specifiers Solutions
              Panelboard Builder Solutions
            • Builder and Developer Solutions

            Contact and Support

            • Safety Recalls
            • FAQs
            • How to Videos
            • Find a Wholesaler
            • Contact Us
            • Career

            Who we are

            Our international family business has been the partner of professionals in electrical engineering for over 65 years.

            Solutions for reliable energy distribution, cable management, attractive switchgear, and building automation: we are driven to deliver. Always in close cooperation with partners and customers. Our products and systems distinguish themselves in quality, simplicity in installation and use, and an attractive design.

            More about us & Working with us



            Follow us!

            • Terms and conditions
            • Privacy
            • Cookies
            • Hagergroup
            • Report a vulnerability

            © Ha­ger Group
