Hager The Hager Shunt Trip Release 100-120 V AC for h250-h1000 MCCBs enables remote tripping for emergency-off, interlocks, and automation. It operates on 100-120 V AC (Ue) with just 1.68 VA inrush, minimizing control load. IP4X assures safe integration within enclosures. Ideal for industrial and commercial switchboards requiring dependable, fast remote disconnection and enhanced safety.
EAN
3250613369439
Packaging
1 Piece
Shunt trip release 100-120V AC IP4X, 1.68VA, for h250-h1000 HXC003H
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Suitable with 23 products available
Suitable with
-
HND400HMoulded Case Circuit Breaker h630 3P 50kA 400A LSI
-
HEC040HMoulded Case Circuit Breaker h250 3P 70kA 40A LSI
-
HNC251HMoulded Case Circuit Breaker h250 4P 50kA 250A LSI
-
HEC251HMoulded Case Circuit Breaker h250 4P 70kA 250A LSI
-
HEC126HMoulded Case Circuit Breaker h250 4P 70kA 125A LSI
-
HEC125HMoulded Case Circuit Breaker h250 3P 70kA 125A LSI
-
HND630HMoulded Case Circuit Breaker h630 3P 50kA 630A LSI
-
HND401HMoulded Case Circuit Breaker h630 4P 50kA 400A LSI
-
HED630HMoulded Case Circuit Breaker h630 3P 70kA 630A LSI
-
HEE800HMoulded Case Circuit Breaker h1000 3P 70kA 800A LSI
-
HEE970HMoulded Case Circuit Breaker h1000 3P 70kA 1000A LSI
-
HNE970HMoulded Case Circuit Breaker h1000 3P 50kA 1000A LSI
-
HEC250HMoulded Case Circuit Breaker h250 3P 70kA 250A LSI
-
HND631HMoulded Case Circuit Breaker h630 4P 50kA 630A LSI
-
HEE971HMoulded Case Circuit Breaker h1000 4P 70kA 1000A LSI
-
HNE801HMoulded Case Circuit Breaker h1000 4P 50kA 800A LSI
-
HNE971HMoulded Case Circuit Breaker h1000 4P 50kA 1000A LSI
-
HEE801HMoulded Case Circuit Breaker h1000 4P 70kA 800A LSI
-
HED401HMoulded Case Circuit Breaker h630 4P 70kA 400A LSI
-
HED400HMoulded Case Circuit Breaker h630 3P 70kA 400A LSI
Technical properties
Power
-
Inrush power absorbed1,68 VA
Safety
-
Ingress Protection (IP) classIP4X
Voltage
-
Command voltage AC100 - 120 V
-
Command voltage DC0 - 0 V
-
Rated operational voltage Ue100 - 120 V
-
Rated operational voltage in DC0 - 0 V
Downloads
-
Product image
-
Product datasheet

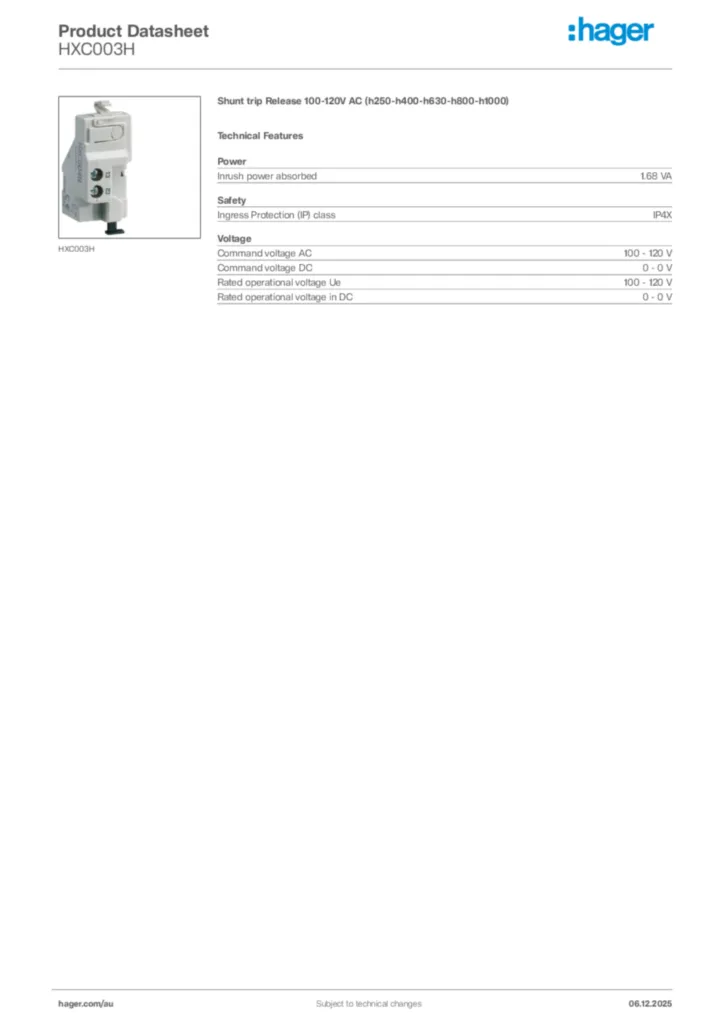

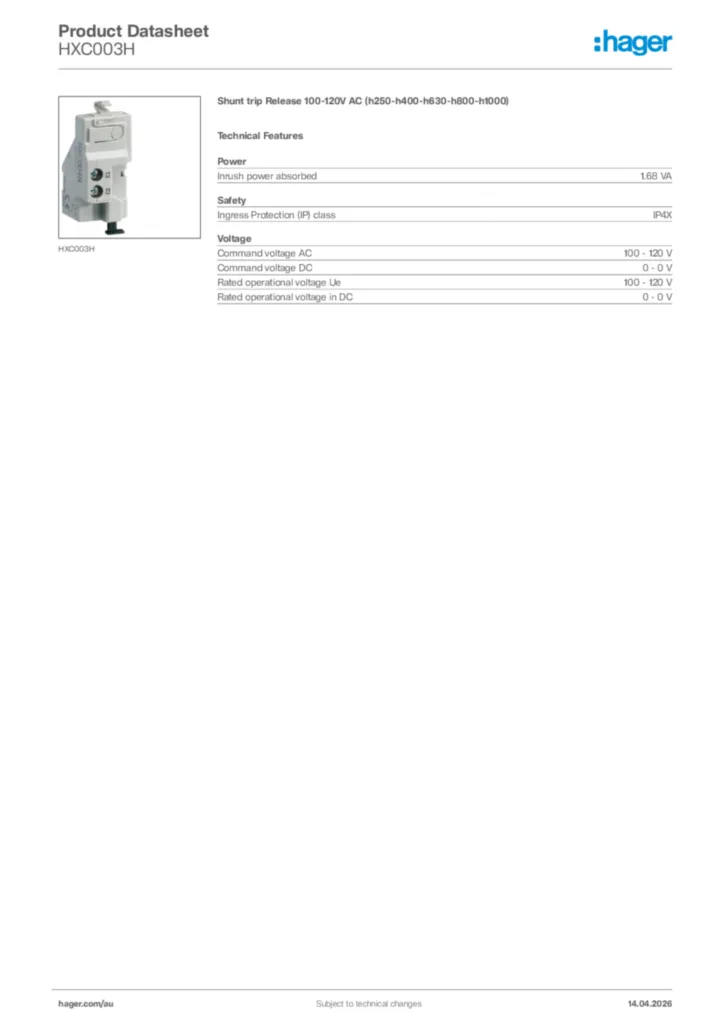

Hager Product data sheet HXC003H
Shunt trip Release 100-120V AC (h250-h400-h630-h800-h1000)
PDF -
Installation manual
Installation manual International 2013-04-24
PDF1,48 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-06-20
PDF329,36 kB
