Hager The Hager Shunt Trip Release 48V DC for h250-h1000 breakers enables remote tripping for emergency-off and safety interlocking. It operates on a 48 V DC command with only 1.44 VA inrush power, ensuring dependable actuation. With IP4X protection and seamless integration into the breaker, it enhances safety and control in industrial and commercial distribution panels.
EAN
3250613369422
Packaging
1 Piece
Shunt Trip Release 48V DC IP4X for h250-h400-h630-h800-h1000 HXC002H
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Suitable with 23 products available
Suitable with
-
HND400HMoulded Case Circuit Breaker h630 3P 50kA 400A LSI
-
HEC040HMoulded Case Circuit Breaker h250 3P 70kA 40A LSI
-
HNC251HMoulded Case Circuit Breaker h250 4P 50kA 250A LSI
-
HEC251HMoulded Case Circuit Breaker h250 4P 70kA 250A LSI
-
HEC126HMoulded Case Circuit Breaker h250 4P 70kA 125A LSI
-
HEC125HMoulded Case Circuit Breaker h250 3P 70kA 125A LSI
-
HND630HMoulded Case Circuit Breaker h630 3P 50kA 630A LSI
-
HND401HMoulded Case Circuit Breaker h630 4P 50kA 400A LSI
-
HED630HMoulded Case Circuit Breaker h630 3P 70kA 630A LSI
-
HEE800HMoulded Case Circuit Breaker h1000 3P 70kA 800A LSI
-
HEE970HMoulded Case Circuit Breaker h1000 3P 70kA 1000A LSI
-
HNE970HMoulded Case Circuit Breaker h1000 3P 50kA 1000A LSI
-
HEC250HMoulded Case Circuit Breaker h250 3P 70kA 250A LSI
-
HND631HMoulded Case Circuit Breaker h630 4P 50kA 630A LSI
-
HEE971HMoulded Case Circuit Breaker h1000 4P 70kA 1000A LSI
-
HNE801HMoulded Case Circuit Breaker h1000 4P 50kA 800A LSI
-
HNE971HMoulded Case Circuit Breaker h1000 4P 50kA 1000A LSI
-
HEE801HMoulded Case Circuit Breaker h1000 4P 70kA 800A LSI
-
HED401HMoulded Case Circuit Breaker h630 4P 70kA 400A LSI
-
HED400HMoulded Case Circuit Breaker h630 3P 70kA 400A LSI
Technical properties
Power
-
Inrush power absorbed1,44 VA
Safety
-
Ingress Protection (IP) classIP4X
Voltage
-
Command voltage AC0 - 0 V
-
Command voltage DC48 - 48 V
-
Rated operational voltage Ue0 - 0 V
-
Rated operational voltage in DC48 - 48 V
Downloads
-
Product image
-
Product datasheet

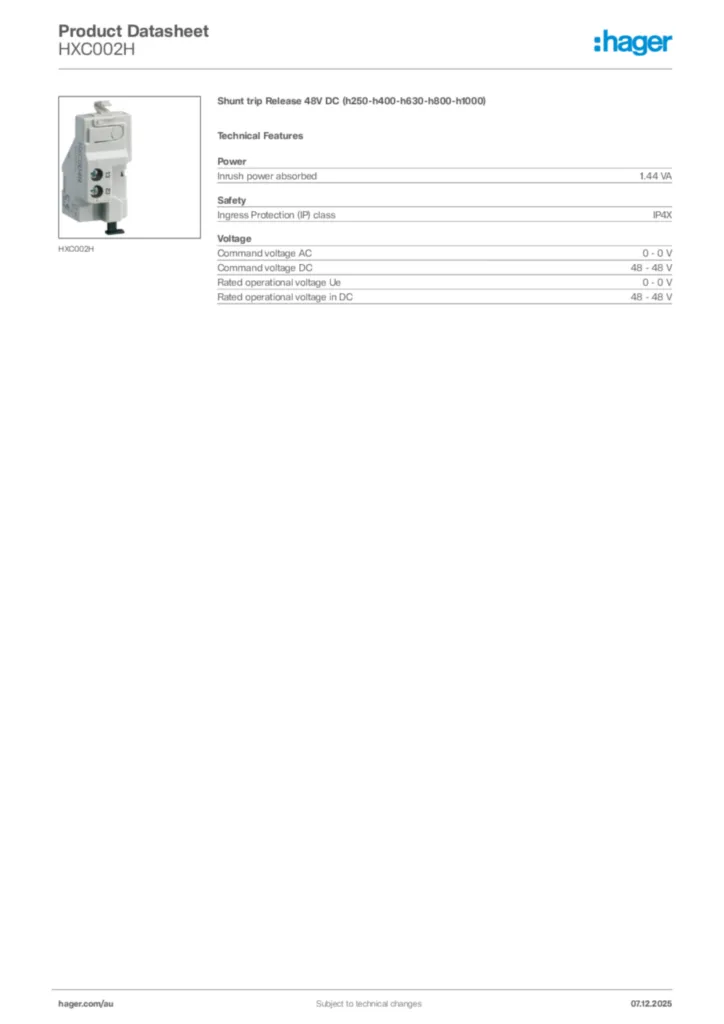

Hager Product data sheet HXC002H
Shunt trip Release 48V DC (h250-h400-h630-h800-h1000)
PDF -
Installation manual
Installation manual International 2013-04-24
PDF1,48 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-06-20
PDF329,36 kB
