Hager The Hager UVR 24V DC undervoltage release for h800/h1000/h1600 MCCBs trips the breaker instantly when control voltage is lost, enhancing safety and enabling emergency-off and remote interlock functions. Powered by 24 V DC with ultra‑low 0.70 VA inrush, it minimises control load. IP4X-rated for protected panel integration, non‑delayed operation ensures rapid disconnection for reliable equipment and personnel protection.
EAN
3250613152154
Packaging
1 Piece
Undervoltage release 24V DC IP4X for h800-h1000-h1600 HXE011H
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Suitable with 16 products available
Suitable with
-
HNF990HMoulded Case Circuit Breaker h1600 3P 50kA 1600A LSI
-
HNE970HMoulded Case Circuit Breaker h1000 3P 50kA 1000A LSI
-
HNE800HMoulded Case Circuit Breaker h1000 3P 50kA 800A LSI
-
HEF980HMoulded Case Circuit Breaker h1600 3P 70kA 1250A LSI
-
HNF991HMoulded Case Circuit Breaker h1600 4P 50kA 1600A LSI
-
HEE801HMoulded Case Circuit Breaker h1000 4P 70kA 800A LSI
-
HEF981HMoulded Case Circuit Breaker h1600 4P 70kA 1250A LSI
-
HNE971HMoulded Case Circuit Breaker h1000 4P 50kA 1000A LSI
-
HNF981HMoulded Case Circuit Breaker h1600 4P 50kA 1250A LSI
-
HEF991HMoulded Case Circuit Breaker h1600 4P 70kA 1600A LSI
-
HNE801HMoulded Case Circuit Breaker h1000 4P 50kA 800A LSI
-
HEE971HMoulded Case Circuit Breaker h1000 4P 70kA 1000A LSI
-
HNF980H
Moulded Case Circuit Breaker h1600 3P 50kA 1250A LSI
-
HEE970HMoulded Case Circuit Breaker h1000 3P 70kA 1000A LSI
-
HEE800HMoulded Case Circuit Breaker h1000 3P 70kA 800A LSI
-
HEF990HMoulded Case Circuit Breaker h1600 3P 70kA 1600A LSI
Technical properties
Power
-
Inrush power absorbed0,70 VA
-
Total power loss under IN0,70 W
Safety
-
Ingress Protection (IP) classIP4X
Voltage
-
Command voltage AC0 - 0 V
-
Command voltage DC24 - 24 V
Functions
-
DelayedNo
Downloads
-
Product image
-
Product datasheet

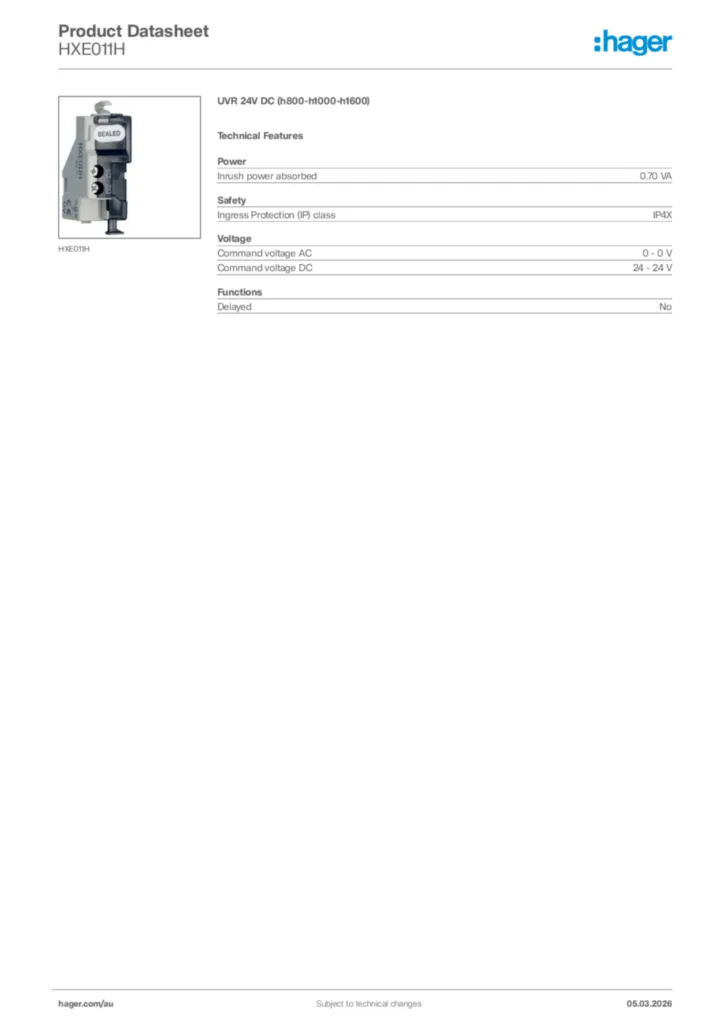

Hager Product data sheet HXE011H
