Load Break Switch Disconnector h3+ PW1600 4P 1000A FTC HMQ971AR
EAN
3250613251277
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Locking interlocking functions 1 products available -
Handle for power circuit breaker 1 products available -
Auxiliaries contact block 2 products available -
Auxiliaries switch position 1 products available -
Mechanic accessories for low-voltage components 4 products available -
Terminal cover 1 products available
Complete your system
Technical properties
Electric current
-
Rated current1000 A
-
Rated short-time withstand current Icw IEC 6094719,2 kA
-
Rated current 10°C according to IEC 609471000 A
-
Rated current 15°C according to IEC 609471000 A
-
Rated current 20°C according to IEC 609471000 A
-
Rated current 25°C according to IEC 609471000 A
-
Rated current 30°C according to IEC 609471000 A
-
Rated current at 35°C according to IEC 609471000 A
-
Rated current at 40°C according to IEC 609471000 A
-
Rated current 45°C according to IEC 609471000 A
-
Rated current 50°C according to IEC 609471000 A
-
Rated current 55°C according to IEC 609471000 A
-
Rated current at 60°C according to IEC 609471000 A
-
Rated current 65°C according to IEC 609471000 A
-
Rated current 70°C according to IEC 609471000 A
Architecture
-
Number of poles4
-
Control/operation elementToggle
Voltage
-
Rated insulation voltage Ui1000 V
-
Rated impulse withstand voltage Uimp8 kV
Frequency
-
Frequency50 - 60 Hz
Functions
-
Trip unitSwitch
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

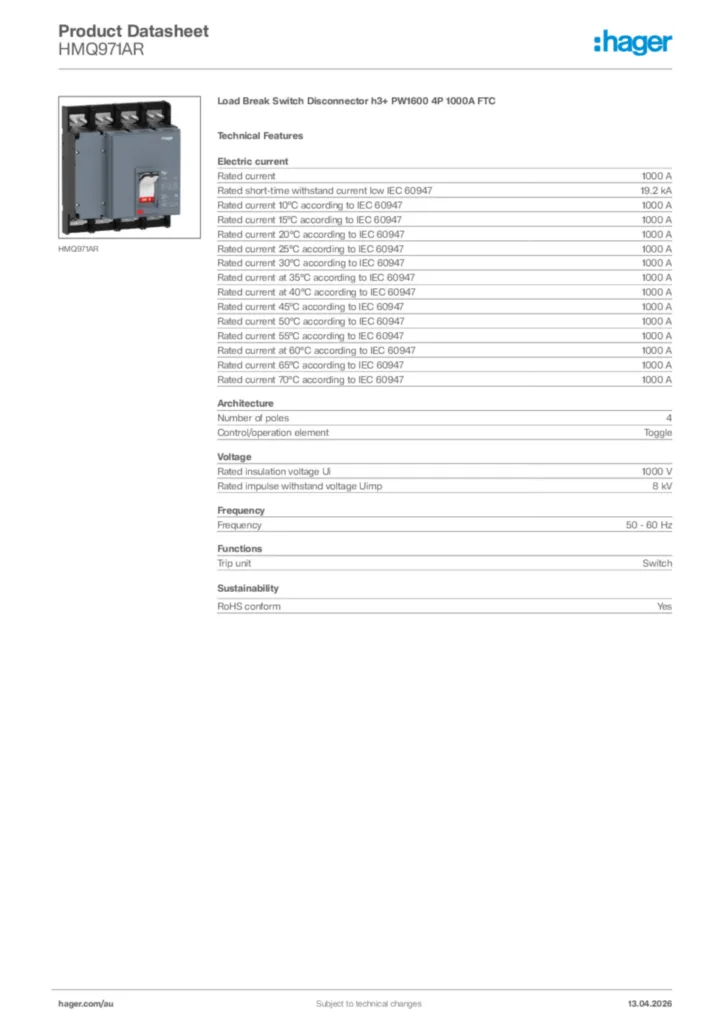

Hager Product data sheet HMQ971AR
