HI462 - Change-over switch 4P 1250A
HI462 - Change-over switch 4P 1250A

Change-over switch 4P 1250A

HI462

HI462 - Change-over switch 4P 1250A
HI462 - Change-over switch 4P 1250A
  • Main Switchgear

Change-over switch 4P 1250A HI462

EAN
3250613190194
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products

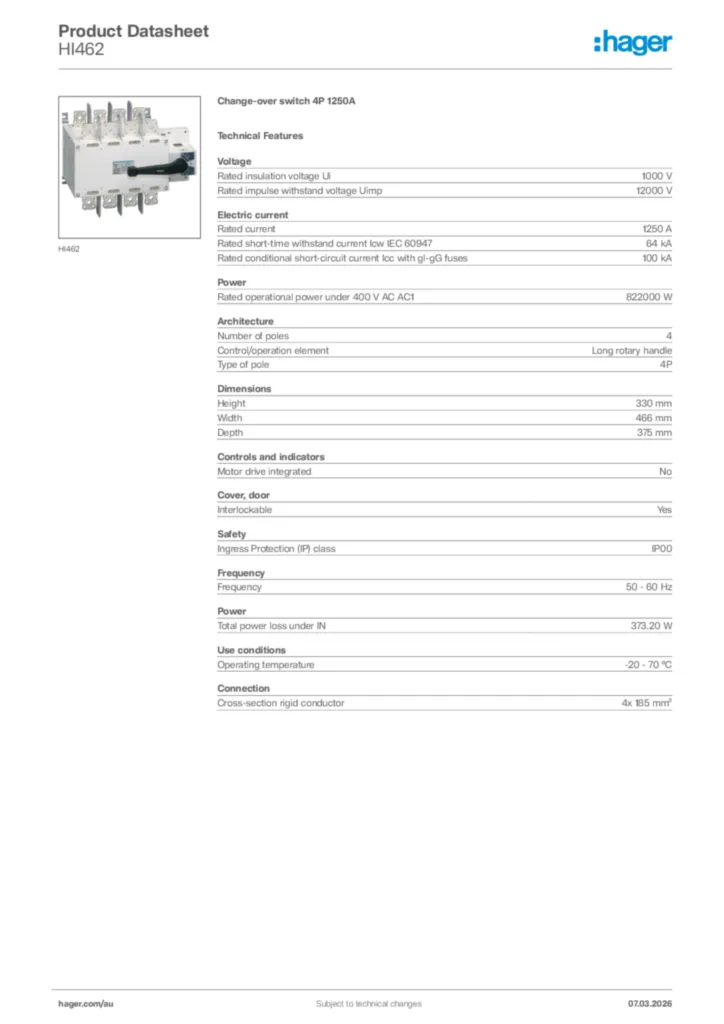

Download the data sheet

Complete your system

Optional accessories

  • Auxil­iary contact block 1 products available
  • Switch oper­ating shaft 1 products available

Complete your system

  • Auxil­iary contact block
  • Switch oper­ating shaft
  • HZ160

    Auxiliary contact 1NO+1NC

    EUR 0.00  / *
    Add to a list
    Add to a list
  • HZC106

    Shaft extension 320 mm FCS-LBS 800-1800A

    EUR 0.00  / *
    Add to a list
    Add to a list

Technical properties

Voltage
  • Rated insu­la­tion voltage Ui
    1000 V
  • Rated impulse with­stand voltage Uimp
    12000 V
Elec­tric current
  • Rated current
    1250 A
  • Rated short-­time with­stand current Icw IEC 60947
    64 kA
  • Rated condi­tional short-­cir­cuit current Icc with gl-gG fuses
    100 kA
Power
  • Rated oper­a­tional power under 400 V AC AC1
    822000 W
  • Total power loss under IN
    373,20 W
Archi­tec­ture
  • Number of poles
    4
  • Control/­op­er­a­tion element
    Long rotary handle
  • Type of pole
    4P
Dimen­sions
  • Height
    330 mm
  • Width
    466 mm
  • Depth
    375 mm
Controls and indic­ators
  • Motor drive integ­rated
    No
Cover, door
  • Inter­lock­able
    Yes
Safety
  • Ingress Protec­tion (IP) class
    IP00
Frequency
  • Frequency
    50 - 60 Hz
Use condi­tions
  • Oper­ating temper­ature
    -20 - 70 °C
Connec­tion
  • Cross-sec­tion rigid conductor
    4x 185 mm²

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

Certifications and documents

REACH declaration HI462 (english)
PDF
103,10 kB

Downloads

  • Product image

    Image HI462  | Hager Australia

    Product Image HI462

  • Installation manual

    Image Installation manual en-GB, es-ES, fr-FR, de-DE, nl-NL, pt-PT 2019-02-21  | Hager Australia

    Installation manual en-GB, es-ES, fr-FR, de-DE, nl-NL, pt-PT 2019-02-21

    PDF
    1,27 MB
  • Declaration of conformity

    Image Declaration  | Hager Australia

    Declaration

    Declaration of conformity International 2022-04-13

    PDF
    573,94 kB
    Image EU Declaration of Conformity  | Hager Australia

    EU Declaration of Conformity

    Declaration of conformity en-GB 2024-12-04

    PDF
    639,40 kB
More documentation
