Hager The Hager 4P 800A change-over switch ensures reliable source transfer in industrial and large commercial panels. Rated Ui 1000 V, Uimp 12 kV, and Icw 64 kA (Icc 50 kA with gG fuses), it handles demanding networks. AC1 526 kW at 400 V. Long rotary handle with interlocking enhances safety. 50-60 Hz. Accepts 4×185 mm² conductors. Ideal for main/backup supply switching and maintenance isolation.
EAN
3250613190187
Packaging
1 Piece
Change-over switch 4P 800A Ui 1000V Icw 64kA Long rotary handle HI460
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Terminal cover 1 products available -
Accessories/spare parts for low-voltage switch technology 1 products available -
Auxiliary contact block 1 products available -
Door coupling handle for switchgear 1 products available
Compatible products
-
Suitable with 1 products available
Technical properties
Voltage
-
Rated insulation voltage Ui1000 V
-
Rated impulse withstand voltage Uimp12000 V
Electric current
-
Rated current800 A
-
Rated short-time withstand current Icw IEC 6094764 kA
-
Rated conditional short-circuit current Icc with gl-gG fuses50 kA
Power
-
Rated operational power under 400 V AC AC1526000 W
-
Total power loss under IN166,80 W
Architecture
-
Number of poles4
-
Control/operation elementLong rotary handle
-
Type of pole4P
Dimensions
-
Height321 mm
-
Width466 mm
-
Depth375 mm
Controls and indicators
-
Motor drive integratedNo
Cover, door
-
InterlockableYes
Safety
-
Ingress Protection (IP) classIP00
Frequency
-
Frequency50 - 60 Hz
Connection
-
Cross-section rigid conductor4x 185 mm²
Downloads
-
Product image
-
Product datasheet

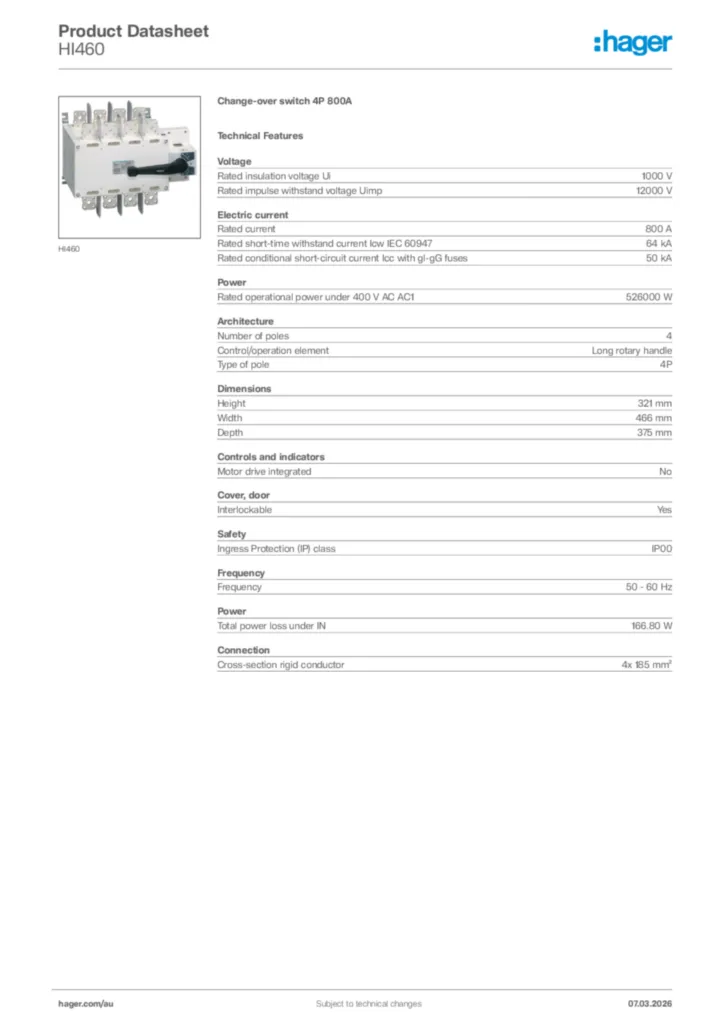

Hager Product data sheet HI460
