Manual Transfer Switches (4 Pole)

Change-over switch 4P 1600A HI464

EAN

3250613190200

Packaging

1 Piece

Technical properties
Documentations
Accessories
More products

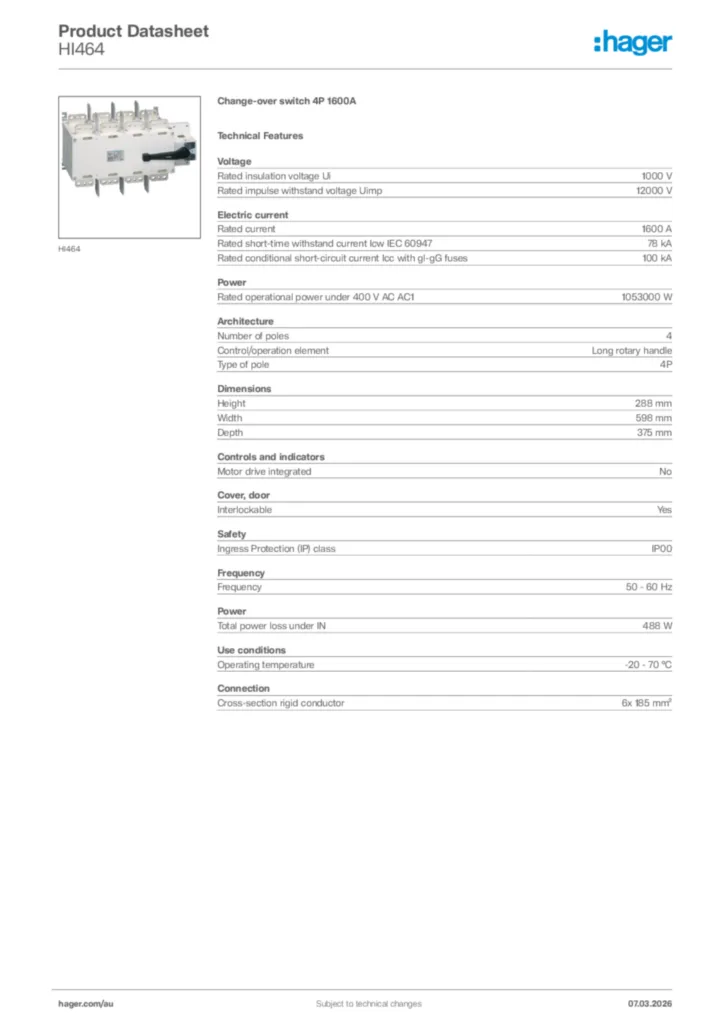

Download the data sheet

Technical properties

Type of order

Long thumb-grip
Number of poles

4 P
Type of pole

4 P
Type of case

Fixed built-in

Reversing switch

Yes
Version as main switch

Yes
Version as emergency stop installation

No
Version as safety switch

Yes
Version as maintenance-/service switch

Yes

Motor drive integrated

No

Rated operational voltage Ue

380 / 415 / 500 / 690 V

Rated insulation voltage

1000 V
Rated impulse withstand voltage

12 kV

Rated operational current in AC21category B

1600 A
Acceptable current rating with AC22 category A

1600 A
Rated current

1600 A
Short-circuit current with gI-gG fuses

100 kA
Making capacity in peak short circuit

105 kA
Rated short-time withstand current Icw

78 kA
Rated short-time withstand current 1s

50 kA
Rating current 10°C according to IEC 60947

1600 A
Rating current 15°C according to IEC 60947

1600 A
Rating current 20°C according to IEC 60947

1600 A
Rating current 25°C according to IEC 60947

1600 A
Rating current 30°C according to IEC 60947

1600 A
Rating current 35°C according to IEC 60947

1600 A
Rating current 40°C according to IEC 60947

1600 A
Rating current 45°C according to IEC 60947

1440 A
Rating current 5°C according to IEC 60947

1600 A
Rating current 50°C according to IEC 60947

1440 A
Rating current 55°C according to IEC 60947

1280 A
Rating current 60°C according to IEC 60947

1280 A
Rating current 65°C according to IEC 60947

1120 A
Rating current 70°C according to IEC 60947

1120 A
Rated operational current in AC21 category A

1600 A
Acceptable current rating with AC22 category B

1600 A
Rated operational current in AC23 category A

1250 A
Acceptable current rating with AC23 category B

1250 A
Conventional thermal current under enclosure at 40°C

1600 A

Depth of installed product

375 mm
Height of installed product

288 mm
Width of installed product

598 mm

Contact rating with 400 V in AC1

1053 kW

Interlockable

Yes

Toggle colour

Black

Suitable for front mounting center

No
Suitable for front mounting

No
Suitable for ground mounting

Yes

Type of connection

Terminal

Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as normally open contact

0
Number of auxiliary contacts as change-over contact

0
Motor drive optional

No

Standard text

IEC 60947-3 ; IEC 60947-6

Halogen free

No
