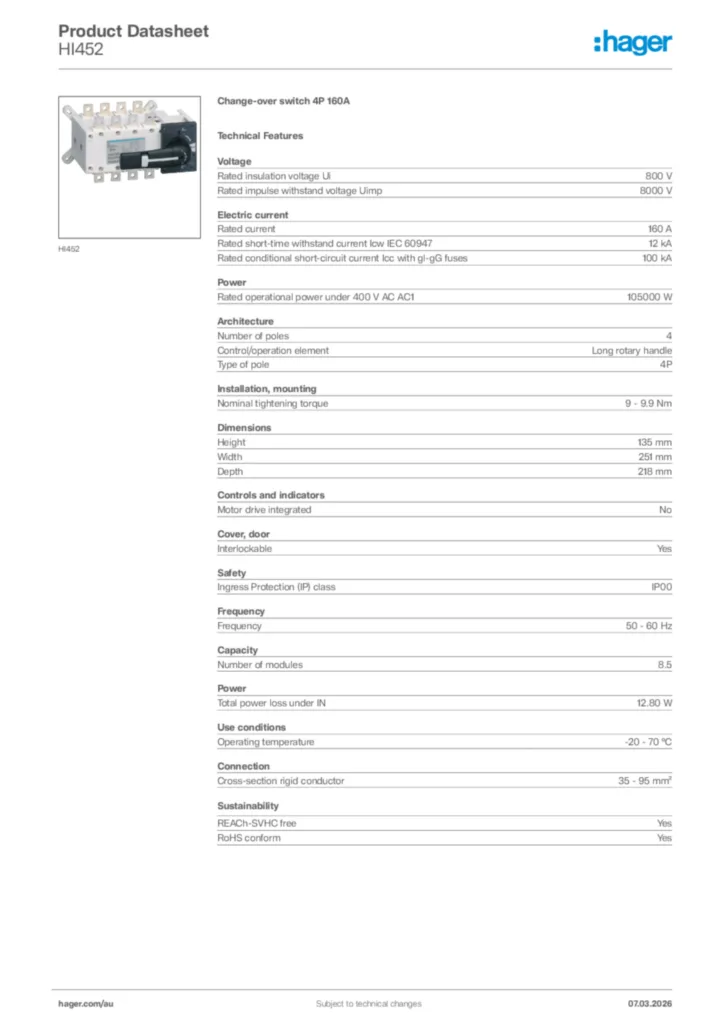

Change-over switch 4P 160A HI452
EAN
3250613190026
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Type of orderLong thumb-grip
-
Number of poles4 P
-
Type of pole4 P
-
Type of caseFixed built-in
Functions
-
Reversing switchYes
-
Version as main switchYes
-
Version as emergency stop installationNo
-
Version as safety switchYes
-
Version as maintenance-/service switchYes
Controls and indicators
-
Motor drive integratedNo
Main electrical features
-
Rated operational voltage Ue380 / 415 / 500 / 690 V
Voltage
-
Rated insulation voltage800 V
-
Rated impulse withstand voltage8 kV
-
Rated operational voltage in DC220 / 440 V
Electric current
-
Rated operational current in AC21category B160 A
-
Acceptable current rating with AC22 category A160 A
-
Rated current160 A
-
Short-circuit current with gI-gG fuses100 kA
-
Making capacity in peak short circuit11900 A
-
Rated short-time withstand current Icw12 kA
-
Rated short-time withstand current 1s7 kA
-
Rating current 10°C according to IEC 60947160 A
-
Rating current 15°C according to IEC 60947160 A
-
Rating current 20°C according to IEC 60947160 A
-
Rating current 25°C according to IEC 60947160 A
-
Rating current 30°C according to IEC 60947160 A
-
Rating current 35°C according to IEC 60947160 A
-
Rating current 40°C according to IEC 60947160 A
-
Rating current 45°C according to IEC 60947144 A
-
Rating current 5°C according to IEC 60947160 A
-
Rating current 50°C according to IEC 60947144 A
-
Rating current 55°C according to IEC 60947128 A
-
Rating current 60°C according to IEC 60947128 A
-
Rating current 65°C according to IEC 60947112 A
-
Rating current 70°C according to IEC 60947112 A
-
Rated operational current in AC21 category A160 A
-
Acceptable current rating with AC22 category B160 A
-
Rated operational current in AC23 category A160 A
-
Acceptable current rating with AC23 category B160 A
-
Conventional thermal current under enclosure at 40°C160 A
Dimensions
-
Depth of installed product218 mm
-
Height of installed product135 mm
-
Width of installed product251 mm
Power
-
Contact rating with 400 V in AC1105 kW
Cover, door
-
InterlockableYes
Materials
-
Toggle colourBlack
Installation, mounting
-
Suitable for front mounting centerNo
-
Suitable for front mountingNo
-
Suitable for ground mountingYes
Connection
-
Type of connectionTerminal
Equipment
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as normally open contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive optionalNo
Standards
-
Standard textIEC 60947-3 ; IEC 60947-6
Safety
-
REACH conformYes
-
RoHS conformYes
