Moulded Case Circuit Breaker h3+ P160 LSI 3P3D 160A 70kA FTC HES160JR

EAN
3250613148836
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Moulded Case Circuit Breaker h3+ P160 LSI 3P3D 160A 70kA FTC

HES160JR

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (26)
    • Handle for power circuit breaker 1 products available
    • Shunt release 4 products available
    • Auxil­i­aries contact block 6 products available
    • DIN rail adapter 1 products available
    • Handle with inter­lock for power breaker 1 products available
    • Connec­tion Func­tions 2 products available

    Complete your system

    • Handle for power circuit breaker
    • Shunt release
    • Auxil­i­aries contact block
    • DIN rail adapter
    • Handle with inter­lock for power breaker
    • Connec­tion Func­tions
    • Terminal cover
    • Door coup­ling handle
    • Phase separ­a­tion func­tions
    • Locking inter­locking func­tions
    • Auxil­i­aries data cable adaptor
    • Under voltage coil
    • HXS030H

      Direct rotary handle for P160
      EUR 0.00  / *
    • HXA005H

      Shunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA001H

      Shunt trip 24V DC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA004H

      Shunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA002H

      Shunt trip 48V DC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA025H

      Auxiliary low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA027H

      Alarm contact NO-NC right side (x630/P630)
      EUR 0.00  / *
    • HXA028H

      Alarm contact-Low level NO-NC right side (x630/P630)
      EUR 0.00  / *
    • HXA021H

      Auxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA024H

      Alarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA026H

      Alarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HYS033H

      DIN Rail adaptator P160 3P/4P
      EUR 0.00  / *
    • HXS032H

      Direct rotary handle P160 with interlocking
      EUR 0.00  / *
    • HYS011H

      Spread terminal extension P160 3P
      EUR 0.00  / *
    • HYS131H

      Rear connection for P160 3P (63-160A)
      EUR 0.00  / *
    • HYS052H

      Earth plate for Spread terminal extension P160 3P
      EUR 0.00  / *
    • HYS050H

      Earth plate for Straight terminal extension P160 3P
      EUR 0.00  / *
    • HYS023H

      Terminal cover for Spread terminal extension P160 3P
      EUR 0.00  / *
    • HYS021H

      Terminal cover for Straight terminal extension P160 3P
      EUR 0.00  / *
    • HXS031H

      Rotary handle on door for P160
      EUR 0.00  / *
    • HYS019H

      Interphase barrier for P160 3/4P
      EUR 0.00  / *
    • HXA039H

      Padlock (x160-P160-x250-P250-x630)
      EUR 0.00  / *
    • HXB071H

      Interlock mechanical cable 1.5m (P160-x250-h250-h400-h630-h800-h1000)
      EUR 0.00  / *
    • HXB070H

      Interlock mechanical cable 1.0m (P160-x250-h250-h400-h630-h800-h1000)
      EUR 0.00  / *
    • HTC130H

      OAC/PTA adaptor for h3+ length 1, 20 m
      EUR 0.00  / *
    • HXA014H

      Undervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *

    Technical properties

    Elec­tric current
    • Rated current
      160 A
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 230 V AC IEC 60947-2
      85 kA
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 240 V AC IEC 60947-2
      85 kA
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 400 V AC IEC 60947-2
      70 kA
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 415 V AC IEC 60947-2
      70 kA
    • Breaking capa­city on 1-pole for AC 230 V IEC 60947-2
      2,50 kA
    • Breaking capa­city on 1-pole for AC 400 V IEC 60947-2
      2,50 kA
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 690 V AC IEC 60947-2
      6 kA
    • Rated service breaking capa­city Ics under 220 V AC according to IEC 60947-2
      85 kA
    • Rated service breaking capa­city Ics under 230 V AC according to IEC 60947-2
      85 kA
    • Rated service breaking capa­city Ics under 240 V AC according to IEC 60947-2
      85 kA
    • Rated service breaking capa­city Ics under 380 V AC according to IEC 60947-2
      50 kA
    • Rated service breaking capa­city Ics under 400 V AC according to IEC 60947-2
      50 kA
    • Rated service breaking capa­city Ics under 415 V AC according to IEC 60947-2
      50 kA
    • Rated service breaking capa­city Ics under 690 V AC according to IEC 60947-2
      6 kA
    • Rated current 10°C according to IEC 60947
      160 A
    • Rated current 15°C according to IEC 60947
      160 A
    • Rated current 20°C according to IEC 60947
      160 A
    • Rated current 25°C according to IEC 60947
      160 A
    • Rated current 30°C according to IEC 60947
      160 A
    • Rated current at 35°C according to IEC 60947
      160 A
    • Rated current at 40°C according to IEC 60947
      160 A
    • Rated current 45°C according to IEC 60947
      160 A
    • Rated current 50°C according to IEC 60947
      160 A
    • Rated current 55°C according to IEC 60947
      160 A
    • Rated current at 60°C according to IEC 60947
      159 A
    • Rated current 70°C according to IEC 60947
      135 A
    • Rated current 65°C according to IEC 60947
      145 A
    Archi­tec­ture
    • Number of poles
      3
    • Control/­op­er­a­tion element
      Toggle
    • Device construc­tion type
      Fixed built-in
    • Neutral posi­tion
      Without neutral
    Settings
    • Ir1 current dial setting
      63 A, 70 A, 80 A, 90 A, 100 A, 110 A, 125 A, 135 A, 150 A, 160 A
    • Adjust­ment range short-term delayed short-­cir­cuit release
      86 - 1600 A
    Frequency
    • Frequency
      50 - 60 Hz
    Install­a­tion, mounting
    • Nominal tight­ening torque
      6 - 6 Nm
    • Mount­ing-/­Con­nec­tion Posi­tion
      Front
    Voltage
    • Rated impulse with­stand voltage Uimp
      8000 V
    • Rated insu­la­tion voltage Ui
      800 V
    • Rated oper­a­tional voltage Ue
      220 - 690 V
    Func­tions
    • Trip unit
      LSI
    Power
    • Total power loss under IN
      27 W
    • Power loss per pole at In
      9 W
    Endur­ance
    • Elec­tric endur­ance in number of cycles
      10000
    • Number of mech­an­ical oper­a­tions
      40000
    Equip­ment
    • Number of auxil­iary contacts as change-over contact
      0
    • Number of auxil­iary contacts as normally closed contact
      0
    • Number of auxil­iary contacts as normally open contact
      0
    Safety
    • Ingress Protec­tion (IP) class
      IP4X
    Use condi­tions
    • Oper­ating temper­ature
      -25 - 70 °C
    • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
      3
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      6 - 70 mm²
    • Cross-sec­tion rigid conductor
      6 - 95 mm²
    • Connect­or/plug type
      Terminal
    Cover, door
    • Inter­lock­able
      Yes
    Cable
    • Cable material
      Copper, Aluminium
    Dimen­sions
    • Height
      130 mm
    • Width
      90 mm
    • Depth
      97 mm
    Controls and indic­ators
    • Motor drive integ­rated
      No
    Compat­ib­ility
    • Suit­able for DIN Rail
      No
    • Compat­ible with RDC AOB
      No
    • Suit­able for distri­bu­tion board
      Yes
    Power supply
    • Posi­tion power supply
      Bidirec­tional
    Elec­trical protec­tion
    • Long-­time over­load protec­tion (ltd): delay (tr)
      0.5 s, 1.5 s, 2.5 s, 5 s, 7.5 s, 9 s, 10 s, 12 s, 14 s, 16 s
    • Short-­time protec­tion (std): current (Isd)
      1.5, 2, 3, 4, 5, 6, 7, 8, 10
    • Short-­time protec­tion (std): delay (tsd)
      50 ms, 100 ms, 200 ms, 300 ms, 400 ms
    • Instant­an­eous protec­tion (li): dial setting coef­fi­cient
      3, 4, 5, 6, 7, 8, 9, 10, 11

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration HES160JR
    PDF
    Hager RoHS report HES160JR
    PDF

    Downloads

    • Product image

      Image HES160JR | Hager Australia

      Product Image HES160JR

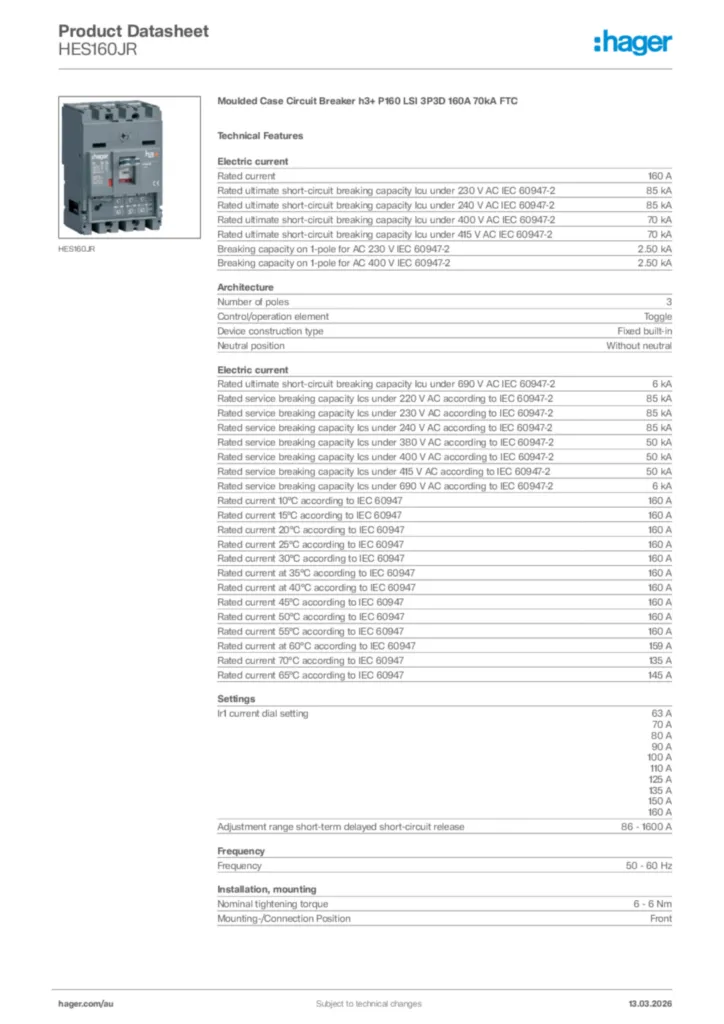

    • Product datasheet

      Image Hager Product data sheet HES160JR | Hager Australia

      Hager Product data sheet HES160JR

      Moulded Case Circuit Breaker h3+ P160 LSI 3P3D 160A 70kA FTC

      PDF

    • Operating manual

      Image Operating manual International 2020-09-21 | Hager Australia

      Operating manual International 2020-09-21

      PDF
      13,53 MB

    • Installation manual

      Image Installation manual International 2018-06-04 | Hager Australia

      Installation manual International 2018-06-04

      PDF
      2,86 MB
      Image Manual for moulded case circuit breaker h3+ P160 (Date: 2020-03) | Hager Australia

      Manual for moulded case circuit breaker h3+ P160 (Date: 2020-03)

      Installation manual International 2016-03-09

      PDF
      4,21 MB

    • Brochure

      Image Hager h3+ MCCB | Hager Australia

      Hager h3+ MCCB

      PDF
      8,80 MB

    • STEP files

      Image CAD file for MCCB 160A 3P | Hager Australia

      CAD file for MCCB 160A 3P

      STEP files International 2023-11-24

      STP
      886,39 kB

    • Handbook

      Image Technical catalogue | Hager Australia

      Technical catalogue

      h3+ Moulded Case Circuit breakers up to 630A

      PDF
      48,86 MB

    • Declaration of conformity

      Image Declaration | Hager Australia

      Declaration

      Declaration of conformity International 2022-02-01

      PDF
      300,00 kB
