Hager The Hager low-level alarm contact NO/NC, right-side fit for x630/P630, enables remote status/trip signalling. It offers 1 changeover contact rated 0.1 A (AC/DC, AC-15 230 V), with quick-connect terminals and click mounting for fast installation. Accepts 0.5-1.25 mm² conductors, Uimp 1.5 kV, IP4X, 3 W loss. Ideal for integrating breakers into control circuits or BMS for reliable monitoring.
EAN
3250613160319
Packaging
1 Piece
Alarm contact low-level 0.1A AC/DC 1 changeover quickconnect right x630/P630 HXA028H
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Suitable with 96 products available
Suitable with
-
HMS160NRMoulded Case Circuit Breaker h3+ P160 Energy 3P3D 160A 50kA FTC
-
HNW250JRMoulded Case Circuit Breaker h3+ P630 LSI 3P3D 250A 40kA FTC
-
HNT250DRMoulded Case Circuit Breaker h3+ P250 TM ADJ 3P3D 250A 40kA FTC
-
HNT200DRMoulded Case Circuit Breaker h3+ P250 TM ADJ 3P3D 200A 40kA FTC
-
HMT200DRMoulded Case Circuit Breaker h3+ P250 TM ADJ 3P3D 200A 50kA FTC
-
HMT160JRMoulded Case Circuit Breaker h3+ P250 LSI 3P3D 160A 50kA FTC
-
HMT100JRMoulded Case Circuit Breaker h3+ P250 LSI 3P3D 100A 50kA FTC
-
HMT100DRMoulded Case Circuit Breaker h3+ P250 TM ADJ 3P3D 100A 50kA FTC
-
HMT063DRMoulded Case Circuit Breaker h3+ P250 TM ADJ 3P3D 63A 50kA FTC
-
HMT040JRMoulded Case Circuit Breaker h3+ P250 LSI 3P3D 40A 50kA FTC
-
HMT250DRMoulded Case Circuit Breaker h3+ P250 TM ADJ 3P3D 250A 50kA FTC
-
HMJ400DRMoulded Case Circuit Breaker h3 x630 TM ADJ 3P3D 400A 50kA FTC
-
HNS125DRMoulded Case Circuit Breaker h3+ P160 TM ADJ 3P3D 125A 40kA FTC
-
HHT250DRMoulded Case Circuit Breaker h3+ P250 TM ADJ 3P3D 250A 25kA FTC
-
HHT200DRMoulded Case Circuit Breaker h3+ P250 TM ADJ 3P3D 200A 25kA FTC
-
HHT160JRMoulded Case Circuit Breaker h3+ P250 LSI 3P3D 160A 25kA FTC
-
HHT100JRMoulded Case Circuit Breaker h3+ P250 LSI 3P3D 100A 25kA FTC
-
HHT040JRMoulded Case Circuit Breaker h3+ P250 LSI 3P3D 40A 25kA FTC
-
HHS160DRMoulded Case Circuit Breaker h3+ P160 TM ADJ 3P3D 160A 25kA FTC
-
HHS125DRMoulded Case Circuit Breaker h3+ P160 TM ADJ 3P3D 125A 25kA FTC
Technical properties
Electric current
-
Rated current0,10 A
-
Rated current 230 V AC150,10 A
Connectivity
-
Type of connectionquickconnect
-
Mounting typeClick mounting
Connection
-
Type of contacts1x changeover
-
Cross-section flexible conductor0.5 - 1.25 mm²
-
Cross-section rigid conductor0.5 - 1.25 mm²
Voltage
-
Rated impulse withstand voltage Uimp1500 V
-
Type voltage supplyAC/DC
Power
-
Total power loss under IN3 W
Equipment
-
Number of INV contacts1
-
Number of NC contacts0
Safety
-
Ingress Protection (IP) classIP4X
Downloads
-
Product image
-
Product datasheet

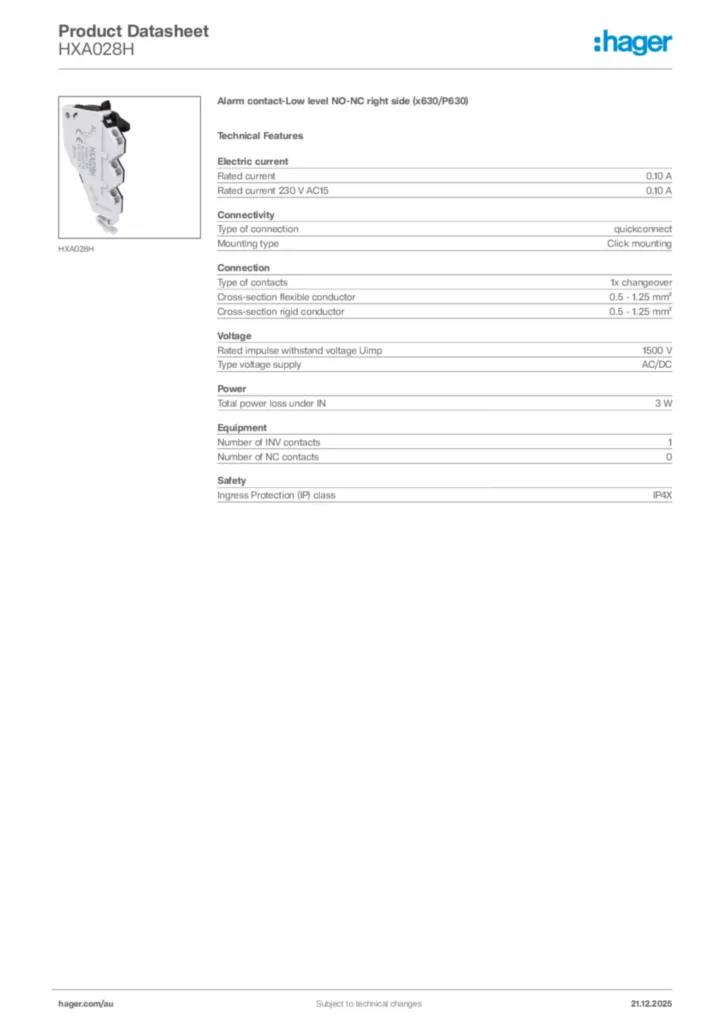

Hager Product data sheet HXA028H
Alarm contact-Low level NO-NC right side (x630/P630)
PDF -
Installation manual
Manual for HXA0xx - Shunt trip, undervoltage release (Date: 2020-06)
Installation manual International 2017-06-20
PDF6,65 MB -
Handbook
Technical catalogue
h3+ Moulded Case Circuit breakers up to 630A
