Moulded Case Circuit Breaker h250 3P 70kA 250A LSI HEC250H

EAN
3250613340636
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Moulded Case Circuit Breaker h250 3P 70kA 250A LSI

HEC250H

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (27)
    • Connec­tion Func­tions 5 products available
    • Terminal cover 3 products available
    • Locking inter­locking func­tions 1 products available
    • Padlock barrier for switch 1 products available
    • Handle for power circuit breaker 2 products available
    • Motor oper­ator 2 products available

    Complete your system

    • Connec­tion Func­tions
    • Terminal cover
    • Locking inter­locking func­tions
    • Padlock barrier for switch
    • Handle for power circuit breaker
    • Motor oper­ator
    • Shunt release
    • Auxil­i­aries inter­locking cable
    • Under voltage coil
    • Auxil­i­aries contact block
    • HYB011H

      Spreader (x/P250-P250) 3P
      EUR 0.00  / *
    • HYC003H

      Collar terminal H250 Cu 3P
      EUR 0.00  / *
    • HYB010H

      Straight extension (x/P250-P250) 4P
      EUR 0.00  / *
    • HYC011H

      Spreader H250 3P collar
      EUR 0.00  / *
    • HYC010H

      Extended connection H250 4P collar
      EUR 0.00  / *
    • HYC021H

      Terminal cover H250 LSI 3P long
      EUR 0.00  / *
    • HYC025H

      Terminal cover H250 3P short
      EUR 0.00  / *
    • HYC027H

      Terminal cover for collar terminal for h250 3P
      EUR 0.00  / *
    • HXC065H

      Interlocking wire type H250
      EUR 0.00  / *
    • HXC039H

      Padlock H250
      EUR 0.00  / *
    • HXC031H

      Extended rotary handle H250
      EUR 0.00  / *
    • HXC030H

      Direct rotary handle H250
      EUR 0.00  / *
    • HXC042H

      Motor operator H250 230-240VAC
      EUR 0.00  / *
    • HXC040H

      Motor operator h250 24V DC
      EUR 0.00  / *
    • HXC005H

      Shunt trip Release 380-450V AC (h250-h400-h630-h800-h1000)
      EUR 0.00  / *
    • HXC004H

      Shunt trip Release 200-240V AC (h250-h400-h630-h800-h1000)
      EUR 0.00  / *
    • HXC002H

      Shunt trip Release 48V DC (h250-h400-h630-h800-h1000)
      EUR 0.00  / *
    • HXC003H

      Shunt trip Release 100-120V AC (h250-h400-h630-h800-h1000)
      EUR 0.00  / *
    • HXC001H

      Shunt trip Release 24V DC (h250-h400-h630-h800-h1000)
      EUR 0.00  / *
    • HXB069H

      Electrical interlock for Motor type B (x250-P250-h250-h400-h630-h800-h1000)
      EUR 0.00  / *
    • HXB068H

      Electrical interlock for Motor type A (x250-P250-h250)
      EUR 0.00  / *
    • HXC015H

      Undervoltage Release 380-450V AC (h250-h400-h630)
      EUR 0.00  / *
    • HXC014H

      Undervoltage Release 200-240V AC (h250-h400-h630)
      EUR 0.00  / *
    • HXC011H

      Undervoltage Release 24V DC (h250-h400-h630)
      EUR 0.00  / *
    • HXC013H

      Undervoltage Release 100-120V AC (h250-h400-h630)
      EUR 0.00  / *
    • HXC024H

      Alarm contact 1NO+1NC 230V (h250-h400-h630-h800-h1000-h1600)
      EUR 0.00  / *
    • HXC021H

      Auxiliary contact 1NO+1NC 230V AC (h250-h400-h630-h800-h1000-h1600)
      EUR 0.00  / *

    Technical properties

    Elec­tric current
    • Rated current
      250 A
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 400 V AC IEC 60947-2
      70 kA
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 240 V AC IEC 60947-2
      85 kA
    Archi­tec­ture
    • Number of poles
      3
    Frequency
    • Frequency
      50 - 60 Hz
    Voltage
    • Rated impulse with­stand voltage Uimp
      8000 V
    • Rated insu­la­tion voltage Ui
      800 V
    Func­tions
    • Trip unit
      LSI
    Main elec­trical attrib­utes
    • Magnetic protec­tion trip time
      100 - 200 ms
    Power
    • Total power loss under IN
      73,20 W
    Endur­ance
    • Elec­tric endur­ance in number of cycles
      1000
    • Number of mech­an­ical oper­a­tions
      4000
    Safety
    • Ingress Protec­tion (IP) class
      IP4X
    Use condi­tions
    • Oper­ating temper­ature
      -25 - 70 °C
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      35 - 150 mm²
    • Cross-sec­tion rigid conductor
      35 - 185 mm²
    • Connect­or/plug type
      Terminal
    Install­a­tion, mounting
    • Nominal tight­ening torque
      12 - 12 Nm
    • Mount­ing-/­Con­nec­tion Posi­tion
      Front
    Settings
    • Thermal protec­tion knob setting xIN
      0.4, 0.5, 0.63, 0.8, 0.9, 0.95, 1
    • Adjust­ment range short-term delayed short-­cir­cuit release
      0 - 0 A

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    Hager REACH declaration HEC250H
    PDF
    Hager RoHS report HEC250H
    PDF

    Downloads

    • Product image

      Image HEC250H | Hager Australia

      Product Image HEC250H

    • Product datasheet

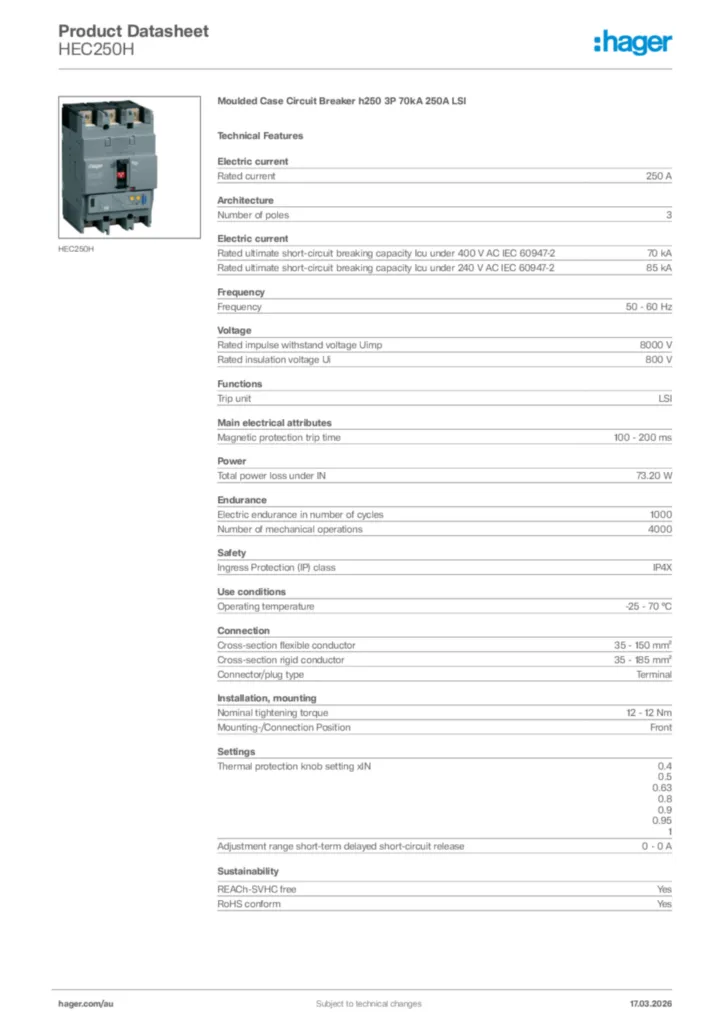

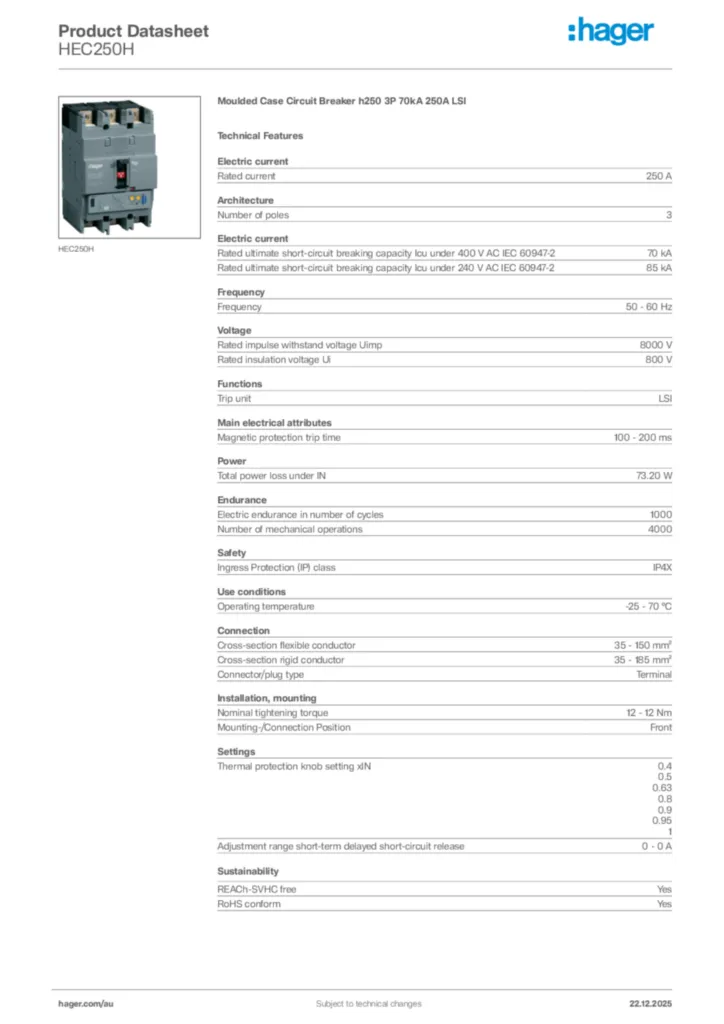

      Image Hager Product data sheet HEC250H | Hager Australia

      Hager Product data sheet HEC250H

      Moulded Case Circuit Breaker h250 3P 70kA 250A LSI

      PDF

    • Installation manual

      Image Installation manual International 2021-06-07 | Hager Australia

      Installation manual International 2021-06-07

      PDF
      9,52 MB
