Hager The Hager straight extension for x/P250-P250 4P moulded case breakers provides a rigid, in-line extension between the MCCB and the panel interface, improving reach and alignment in recessed or deep enclosures. Designed for 4-pole P250 units, it speeds installation, maintains mechanical integrity and electrical performance, and ensures safe, reliable operation in commercial and industrial switchboards.
EAN
3250613346737
Packaging
1 Piece
Straight extension for P250-P250 MCCB 4P HYB010H
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Suitable with 14 products available
Suitable with
-
HNB160UMoulded Case Circuit Breaker X250 3P 40kA 160A TM
-
HNB200U
Moulded Case Circuit Breaker X250 3P 40kA 200A TM
-
HNB250UMoulded Case Circuit Breaker X250 3P 40kA 250A TM
-
HNB161UMoulded Case Circuit Breaker X250 4P 40kA 160A TM
-
HNB201UMoulded Case Circuit Breaker X250 4P 40kA 200A TM
-
HNB251U
Moulded Case Circuit Breaker X250 4P 40kA 250A TM
-
HEC250HMoulded Case Circuit Breaker h250 3P 70kA 250A LSI
-
HEC125HMoulded Case Circuit Breaker h250 3P 70kA 125A LSI
-
HEC126HMoulded Case Circuit Breaker h250 4P 70kA 125A LSI
-
HEC251HMoulded Case Circuit Breaker h250 4P 70kA 250A LSI
-
HNC251HMoulded Case Circuit Breaker h250 4P 50kA 250A LSI
-
HEC040HMoulded Case Circuit Breaker h250 3P 70kA 40A LSI
-
HMT251JRMoulded Case Circuit Breaker h3+ P250 LSI 4P4D N0-50-100% 250A 50kA FTC
-
HEC041HMoulded Case Circuit Breaker h250 4P 70kA 40A LSI
Technical properties
Electric current
-
Rated current250 A
Architecture
-
Number of poles4
-
Type of pole4P
Downloads
-
Product image
-
Product datasheet

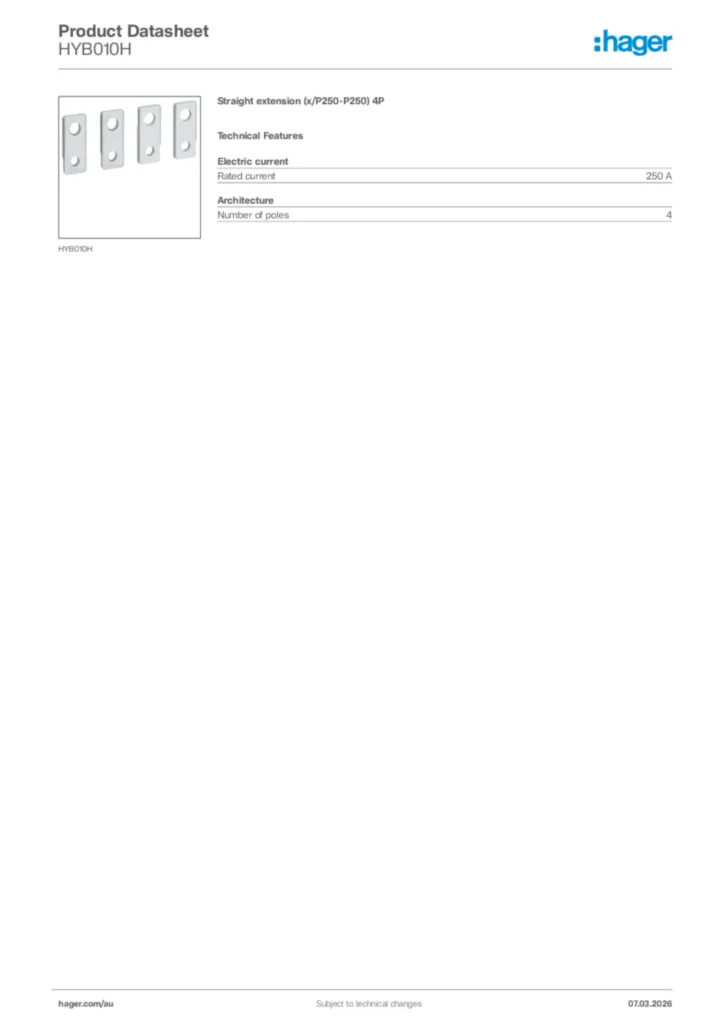

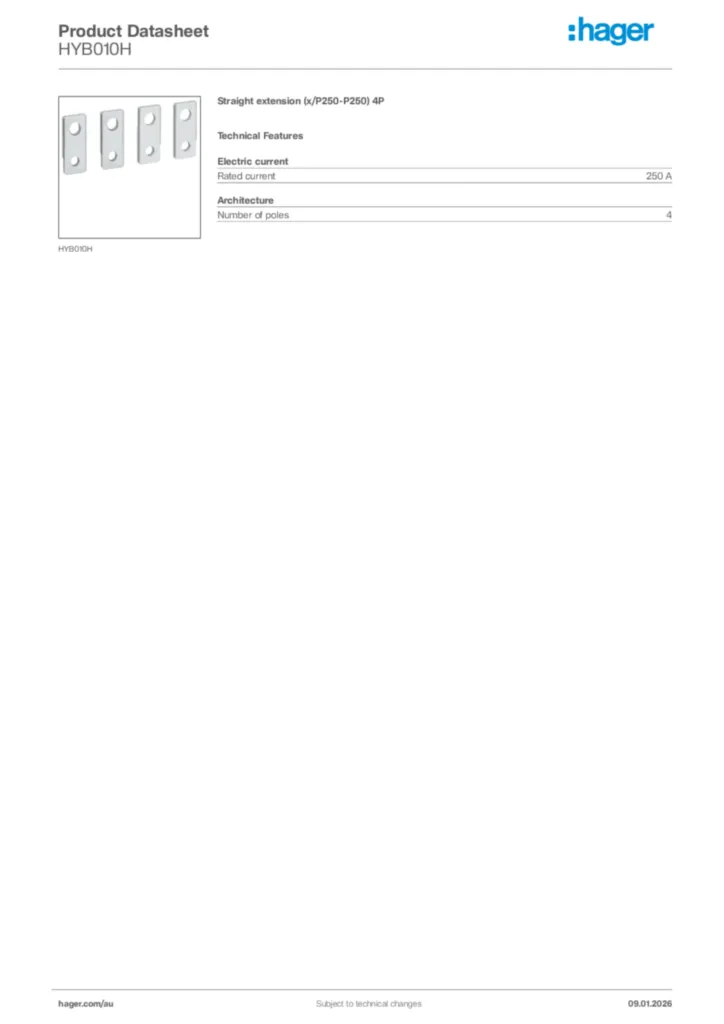

Hager Product data sheet HYB010H
Straight extension (x/P250-P250) 4P
PDF -
Installation manual
Manual for moulded case circuit breaker h3+ P250 (Date: 2020-03)
Installation manual International 2015-11-02
PDF4,67 MB -
Handbook
Technical catalogue
h3+ Moulded Case Circuit breakers up to 630A
PDF48,86 MB
