    Hager The Hager h3 x160 3P 125A Load Break Switch Disconnector (CTC) provides safe isolation and reliable load switching for distribution boards and machinery. Rated 125A with 690 V Ui and 8 kV impulse withstand for demanding 50/60 Hz use. A robust toggle and 3-pole design simplify operation. Wide cable range (rigid 4-95 mm², flexible 4-70 mm²) ensures easy, secure wiring in panels.
    EAN
    3250613136390
    Packaging
    1 Piece
    • MCCBs - Switch Discon­nectors

    Load Break Switch Disconnector 3P 125A Ui 690V Toggle h3 x160 HCA125Z

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Load Break Switch Disconnector 3P 125A Ui 690V Toggle h3 x160

    HCA125Z

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

  • See more (22)
    • Shunt release 4 products available
    • Auxil­i­aries contact block 4 products available
    • Under voltage coil 3 products available
    • Terminal cover 3 products available
    • Handle for power circuit breaker 2 products available
    • Connec­tion Func­tions 3 products available

    Complete your system

    • Shunt release
    • Auxil­i­aries contact block
    • Under voltage coil
    • Terminal cover
    • Handle for power circuit breaker
    • Connec­tion Func­tions
    • Locking inter­locking func­tions
    • Phase separ­a­tion func­tions
    • DIN rail adapter
    • HXA005H

      Shunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA002H

      Shunt trip 48V DC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA001H

      Shunt trip 24V DC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA004H

      Shunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA026H

      Alarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA021H

      Auxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA024H

      Alarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA025H

      Auxiliary low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA015H

      Undervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA014H

      Undervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA011H

      Undervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HYA027H

      Terminal cover for collar terminal x160 3P
      EUR 0.00  / *
    • HYA023H

      Terminal cover x160 3P spreader
      EUR 0.00  / *
    • HYA021H

      Terminal cover x160 3P long
      EUR 0.00  / *
    • HXA031H

      Extended rotary handle x160
      EUR 0.00  / *
    • HXA030H

      Direct rotary handle x160
      EUR 0.00  / *
    • HYA014H

      Spreader x160 3P collar
      EUR 0.00  / *
    • HYA013H

      Extended connection x160 4P collar
      EUR 0.00  / *
    • HYA005H

      Collar terminal x160 Al 3P
      EUR 0.00  / *
    • HXA039H

      Padlock (x160-P160-x250-P250-x630)
      EUR 0.00  / *
    • HYA019H

      Interphase barrier x160 3/4P
      EUR 0.00  / *
    • HYA033H

      DIN Rail adaptator x160 3P/4P
      EUR 0.00  / *

    Technical properties

    Elec­tric current
    • Rated current
      125 A
    Archi­tec­ture
    • Number of poles
      3
    • Control/­op­er­a­tion element
      Toggle
    Connec­tion
    • Cross-sec­tion rigid conductor
      4 - 95 mm²
    • Cross-sec­tion flex­ible conductor
      4 - 70 mm²
    Voltage
    • Rated insu­la­tion voltage Ui
      690 V
    • Rated impulse with­stand voltage Uimp
      8000 V
    Frequency
    • Frequency
      50 - 60 Hz
    Func­tions
    • Trip unit
      Switch

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    REACh-SVHC free Yes

    Certifications and documents

    REACH declaration HCA125Z
    PDF
    RoHS report HCA125Z
    PDF

    Downloads

    • Product image

      Image HCA125Z | Hager Australia

      Product Image HCA125Z

    • Product datasheet

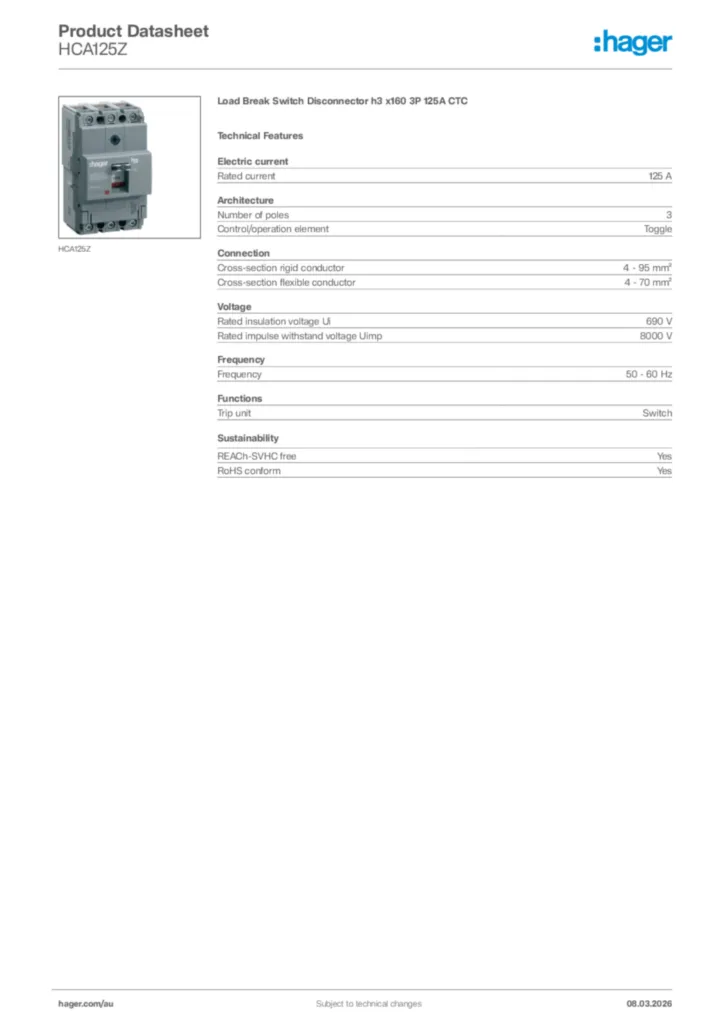

      Image Hager Product data sheet HCA125Z | Hager Australia

      Hager Product data sheet HCA125Z

      Load Break Switch Disconnector h3 x160 3P 125A CTC

      PDF

    • Installation manual

      Image Installation manual International 2021-06-07 | Hager Australia

      Installation manual International 2021-06-07

      PDF
      8,51 MB

    • Declaration of conformity

      Image Declaration | Hager Australia

      Declaration

      Declaration of conformity International 2022-03-14

      PDF
      180,02 kB
      Image Declaration | Hager Australia

      Declaration

      Declaration of conformity International 2022-03-14

      PDF
      187,84 kB
    More documentation

    Discover more of this product range

      5
    • 1
      HCS160AR - Load Break Switch Disconnector 3P 160A h3+ P160 Moulded Case FTC
      HCS160AR
      Load Break Switch Disconnector h3+ P160 3P 160A FTC
    • 2
      HCA160Z - h3 x160 Load Break Switch Disconnector 3P 160A Toggle Ui 690V
      HCA160Z
      Load Break Switch Disconnector h3 x160 3P 160A CTC
    • 3
      HCW400AR - Load Break Switch Disconnector h3+ P630 3P 400A FTC, moulded case
      HCW400AR
      Load Break Switch Disconnector h3+ P630 3P 400A FTC
    • 4
      HMQ630AR - Load Break Switch Disconnector h3+ PW1600 3P 630A 1000V Icw 19.2kA
      HMQ630AR
      Load Break Switch Disconnector h3+ PW1600 3P 630A FTC
    • 5
      HMQ631AR - Switch Disconnector h3+ PW1600 4P 630A Icw 19.2kA Ui 1000V Toggle
      HMQ631AR
      Load Break Switch Disconnector h3+ PW1600 4P 630A FTC
