Residual Current Circuit Breakers with Overcurrent Protection - (RCBOs)

Hager RCBO Electronic 3P+N 32A Curve C 6kA 30mA Type A 3 Modules ALM432T

Technical properties
Environmental value
Documentations
More products

Download the data sheet

Technical properties

Type of pole

3P+N
Number of protected poles

3
Curve

C

Rated current

32 A
Rated residual operating current Idn

30 mA
Rated current -5°C

36,68 A
Rated current at 0°C

36,02 A
Rated current 5°C

35,42 A
Rated current 10°C

34,78 A
Rated current 15°C

34,15 A
Rated current at 20°C

33,45 A
Rated current 25°C

32,73 A
Rated current 30°C

32 A
Rated current 35°C

31,28 A
Rated current at 40°C

30,55 A
Rated current at 50°C

29,09 A
Rated current 55°C

28,36 A
Rated current 60°C

27,63 A
Min./max. threshold value of the AC thermal operation

1,13-1,45 A

Residual current type

A
Ingress Protection (IP) class

IP20

Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4 kV
Rated operational voltage Ue

400 - 415 V
Overvoltage category according to IEC 60947-1

3

Total power loss under IN

14,17 W

Frequency

50 - 60 Hz

Max. altitude

2000 m
Class of energy limitation I²t

3
Operating temperature

-5 - 70 °C
Storage/transport temperature

-25 - 70 °C

Cross-section of input with screws, for flexible conductors

1-16 mm²
Cross-section of input with screws, for massive conductors

1-25 mm²
Cross-section of input and output with screws, for flexible conductors

1-16 mm²
Cross-section of input and output with screws, for massive conductors

1-25 mm²
Cross-section of output with screws, for flexible conductors

1-16 mm²
Cross-section of output with screws, for massive conductors

1-25 mm²

Nominal tightening torque

2,5 - 2,5 Nm
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect

Number of modules

3

Height

84 mm
Width

54 mm
Depth

70 mm

Suitable for DIN Rail

Yes

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Certifications and documents

REACH declaration ALM432T

PDF

Hager RoHS report ALM432T

PDF

Downloads

Product image

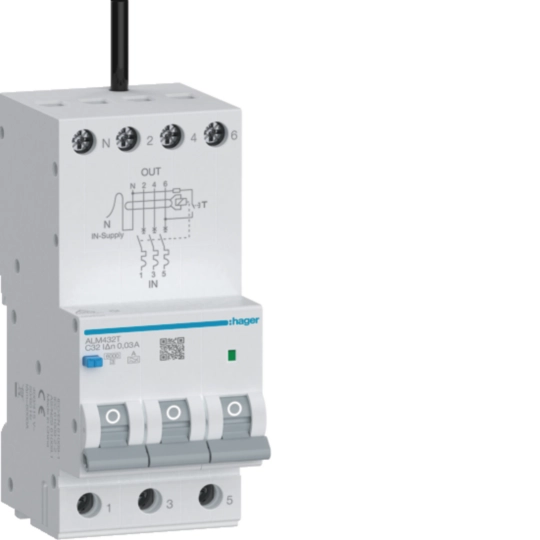

Product Image ALM432T
Product datasheet

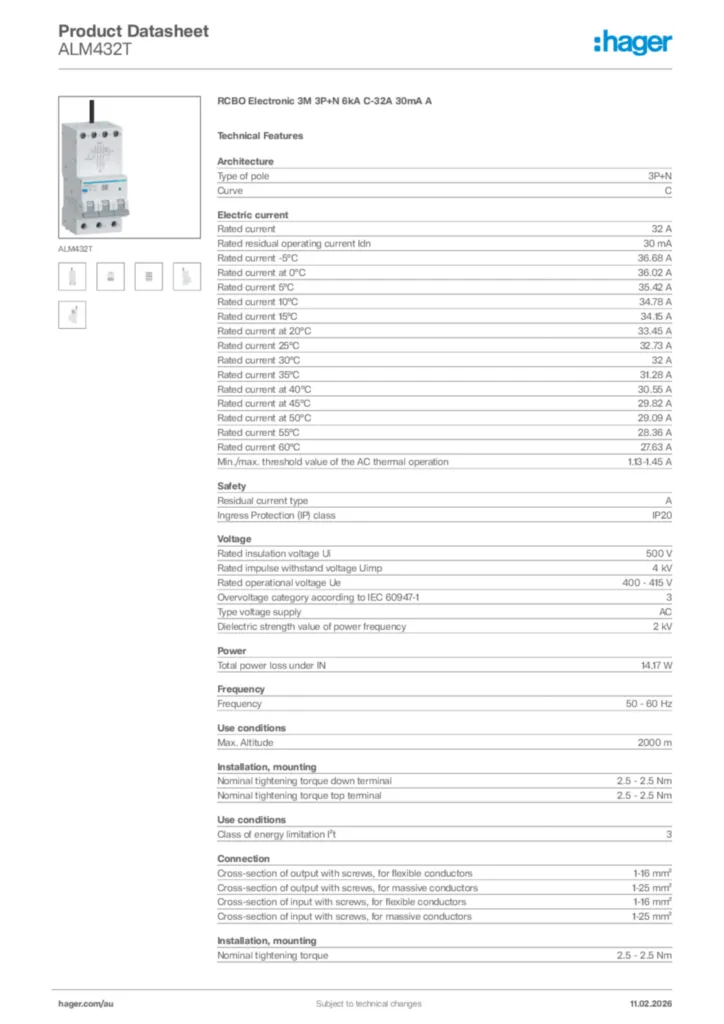

Hager Product data sheet ALM432T
