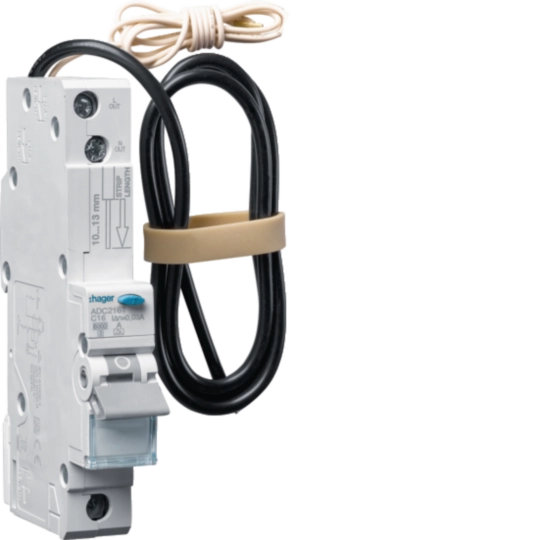

RCBO 1M 1P 6kA C-16A 30mA A Class

ADC216T

  • DIN rail-­mounted devices

RCBO 1M 1P 6kA C-16A 30mA A Class ADC216T

EAN
3250611035534
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • Locking inter­locking func­tions 1 products available

Complete your system

  • Locking inter­locking func­tions
  • MZN175

    Padlockable locking kit for MCB, RCCB and RCBO
    EUR 0.00  / *
    Add to a list
    Add to a list

Technical properties

Archi­tec­ture
  • Type of pole
    1P
  • Curve
    C
Elec­tric current
  • Rated current
    16 A
  • Rated residual oper­ating current Idn
    30 mA
  • Rated current -25°C
    20,81 A
  • Rated current at -20°C
    20,38 A
  • Rated current -15°C
    19,94 A
  • Rated current -10°C
    19,50 A
  • Rated current -5°C
    19,06 A
  • Rated current at 0°C
    18,63 A
  • Rated current 5°C
    18,19 A
  • Rated current 10°C
    17,75 A
  • Rated current 15°C
    17,31 A
  • Rated current at 20°C
    16,88 A
  • Rated current 25°C
    16,44 A
  • Rated current 30°C
    16 A
  • Rated current 35°C
    15,70 A
  • Rated current at 40°C
    15,40 A
  • Rated current at 50°C
    14,80 A
  • Rated current 55°C
    14,50 A
  • Rated current 60°C
    14,20 A
  • Min./max. threshold value of the AC thermal oper­a­tion
    1,13 - 1,45 A
Safety
  • Residual current type
    A
  • Ingress Protec­tion (IP) class
    IP20
Main elec­trical attrib­utes
  • Rated short-­cir­cuit breaking capa­city Icn AC according to IEC 60898-1
    6 kA
Voltage
  • Rated insu­la­tion voltage Ui
    250 V
  • Rated impulse with­stand voltage Uimp
    4000 V
  • Rated oper­a­tional voltage Ue
    230 - 240 V
  • Over­voltage category according to IEC 60947-1
    3
Power
  • Total power loss under IN
    4,90 W
Frequency
  • Frequency
    50 - 60 Hz
Use condi­tions
  • Max. Alti­tude
    2000 m
  • Class of energy limit­a­tion I²t
    3
  • Oper­ating temper­ature
    -5 - 40 °C
  • Stor­age/trans­port temper­ature
    -40 - 70 °C
Endur­ance
  • Elec­tric endur­ance in number of cycles
    2000
  • Number of mech­an­ical oper­a­tions
    10000
Connec­tion
  • Cross-sec­tion of input with screws, for flex­ible conductors
    1 - 10 mm²
  • Cross-sec­tion of input with screws, for massive conductors
    1 - 16 mm²
  • Cross-sec­tion of input and output with screws, for flex­ible conductors
    1 - 16 mm²
  • Cross-sec­tion of input and output with screws, for massive conductors
    1 - 25 mm²
Install­a­tion, mounting
  • Type of top connec­tion for modular devices
    Screw terminal
  • Type of bottom connec­tion for modular devices
    bicon­nect
Capa­city
  • Number of modules
    1
Dimen­sions
  • Height
    115 mm
  • Width
    17,80 mm
  • Depth
    70 mm
Compat­ib­ility
  • Suit­able for DIN Rail
    Yes

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes

Certifications and documents

PEP_Hager_HAGE-00739-V01.01-EN_08122022.pdf
PDF
351,86 kB
REACH declaration ADC216T (english)
PDF
103,10 kB
RoHS declaration ADC216T (english)
PDF
103,84 kB

Downloads

  • Product image

    Image ADC216T | Hager Australia

    Product Image ADC216T

  • Installation manual

    Image notice disjoncteur RCBO | Hager Australia

    notice disjoncteur RCBO

    Installation manual en-GB 2019-04-08

    PDF
    770,59 kB

  • Declaration of conformity

    Image Declaration | Hager Australia

    Declaration

    Declaration of conformity International 2021-10-25

    PDF
    413,52 kB
