Switch X250 3P 250A HCB250Z

EAN-Nr.
3250613136772
Packaging
1 piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Switch X250 3P 250A

HCB250Z

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products

Complete your system

Optional accessories

  • See more (28)
    • Under voltage coil 8 products available
    • Terminal cover 3 products available
    • Motor oper­ator 2 products available
    • Auxil­i­aries contact block 4 products available
    • Shunt release 5 products available
    • Connec­tion Func­tions 2 products available

    Complete your system

    • Under voltage coil
    • Terminal cover
    • Motor oper­ator
    • Auxil­i­aries contact block
    • Shunt release
    • Connec­tion Func­tions
    • Phase separ­a­tion func­tions
    • Handle for power circuit breaker
    • Locking inter­locking func­tions
    • HXA051H

      UVR delayed 24V DC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA015H

      Undervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA014H

      Undervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA055H

      UVR delayed 380-450V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA054H

      UVR delayed 220-240V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA011H

      Undervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA053H

      UVR delayed 110-120V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA013H

      Undervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HYB021H

      Terminal cover x250 3P long
      0.00 €  / *
    • HYB023H

      Terminal cover x250 3P spreader
      0.00 €  / *
    • HYB025H

      Terminal cover x250 3P short
      0.00 €  / *
    • HXB042H

      Motor operator x250 230-240VAC
      0.00 €  / *
    • HXB040H

      Motor operator x250 24V DC
      0.00 €  / *
    • HXA026H

      Alarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA021H

      Auxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA024H

      Alarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA025H

      Auxiliary low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA003H

      Shunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA005H

      Shunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA002H

      Shunt trip 48V DC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA001H

      Shunt trip 24V DC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA004H

      Shunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HYB011H

      Spreader (x/P250-P250) 3P
      0.00 €  / *
    • HYB031H

      Rear connection (x/P250-P250) - 3P
      0.00 €  / *
    • HYB019H

      Interphase barrier (x250-h250) 3/4P
      0.00 €  / *
    • HXB031H

      Extended rotary handle x250
      0.00 €  / *
    • HXB030H

      Direct rotary handle x250
      0.00 €  / *
    • HXA039H

      Padlock (x160-P160-x250-P250-x630)
      0.00 €  / *

    Technical characteristics

    Elec­tric current
    • Rated current
      250 A
    • Rated short-­time with­stand current Icw IEC 60947
      3 kA
    Archi­tec­ture
    • Number of poles
      3
    • Control/­op­er­a­tion element
      Toggle
    Connec­tion
    • Cross-sec­tion rigid conductor
      35 - 185 mm²
    • Cross-sec­tion flex­ible conductor
      35 - 150 mm²
    Voltage
    • Rated insu­la­tion voltage Ui
      800 V
    • Rated impulse with­stand voltage Uimp
      8000 V
    Frequency
    • Frequency
      50 - 60 Hz
    Func­tions
    • Trip unit
      Switch

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    Hager REACH declaration HCB250Z
    PDF
    Hager RoHS report HCB250Z
    PDF

    Downloads

    • Installation manual

      Image Installation manual International 2021-06-09 | Hager

      Installation manual International 2021-06-09

      PDF
      9,54 MB

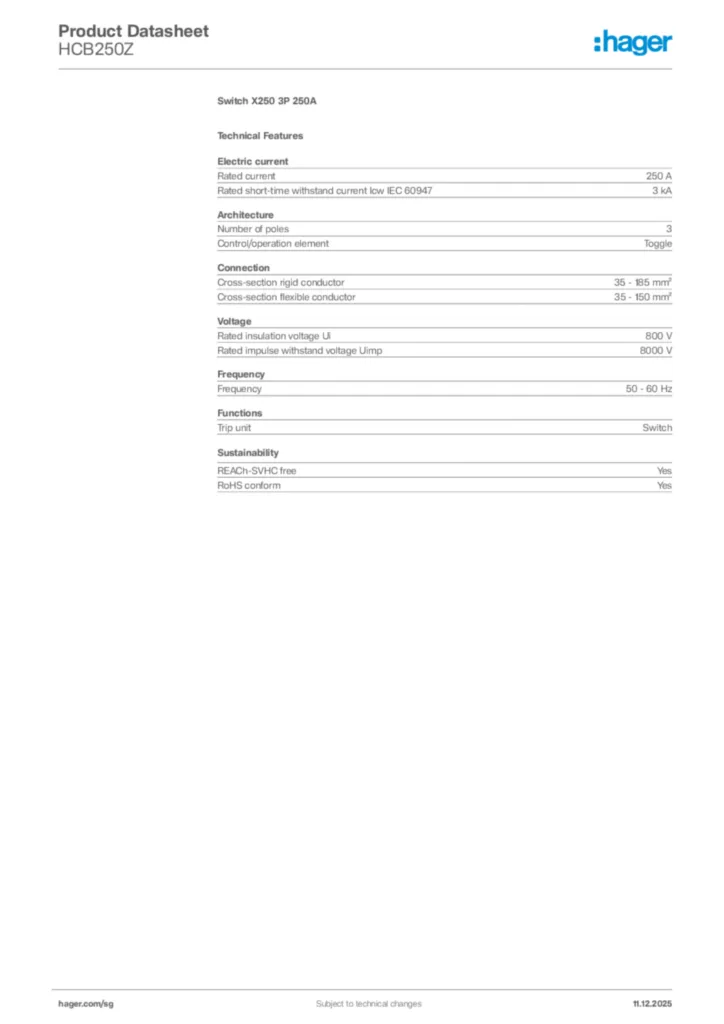

    • Product data sheet

      Image UK_PD_TDS_MCCBx250.pdf | Hager

      UK_PD_TDS_MCCBx250.pdf

      Technical data sheet for MCCB x250.

      PDF
      1,63 MB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-03-03

      PDF
      187,58 kB
