EAN-Nr.

3250613346447

Packaging

1 piece

Moulded case circuit breakers electromechanical accessories

Alarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630) HXA026H

Technical characteristics
Documentations
More products

Download the sheet

Technical characteristics

Rated current

0,10 A
Rated current 230 V AC15

0,10 A

Type of connection

quickconnect
Mounting type

Click mounting

Type of contacts

1NC+1NO
Cross-section flexible conductor

0.5 - 1.25 mm²
Cross-section rigid conductor

0.5 - 1.25 mm²

Rated impulse withstand voltage Uimp

1500 V
Type voltage supply

AC/DC

Total power loss under IN

3 W

Number of INV contacts

0
Number of NC contacts

1

Ingress Protection (IP) class

IP4X

Downloads

Product Image HXA026H
Product datasheet

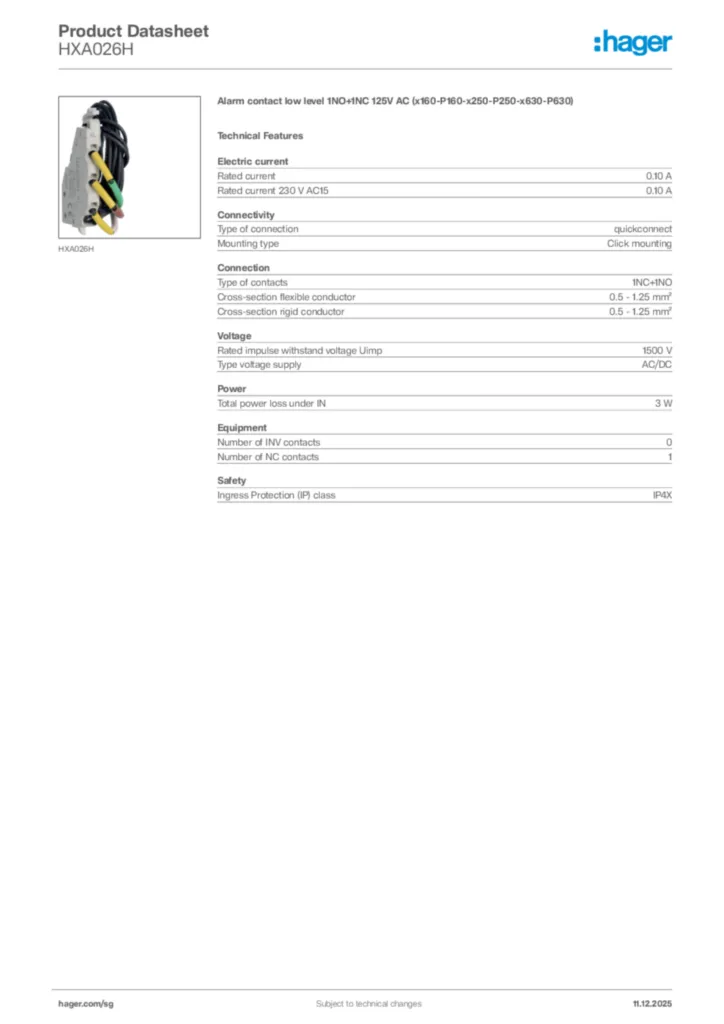

Hager Product data sheet HXA026H

Alarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)

PDF
Installation manual

Manual for HXA0xx - Shunt trip, undervoltage release (Date: 2020-06)

Installation manual International 2017-06-20

PDF

6,65 MB
Handbook

Technical catalogue

h3+ Moulded Case Circuit breakers up to 630A

PDF

48,91 MB
Declaration of conformity

Declaration of conformity en-US 2026-07-14

PDF

343,86 kB

Declaration of conformity en-US 2026-07-14

PDF

437,81 kB
