Alarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630) HXA024H
EAN-Nr.
3250613346423
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 359 products available
Referenced by
-
HNA040UMoulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 40A 40kA CTC
-
HMS063DRMoulded Case Circuit Breaker h3+ P160 TM ADJ 3P3D 63A 50kA FTC
-
HMS040DRMoulded Case Circuit Breaker h3+ P160 TM ADJ 3P3D 40A 50kA FTC
-
HMS025DRMoulded Case Circuit Breaker h3+ P160 TM ADJ 3P3D 25A 50kA FTC
-
HNS160DRMoulded Case Circuit Breaker h3+ P160 TM ADJ 3P3D 160A 40kA FTC
-
HNS125DRMoulded Case Circuit Breaker h3+ P160 TM ADJ 3P3D 125A 40kA FTC
-
HNA160UMoulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 160A 40kA CTC
-
HNA125UMoulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 125A 40kA CTC
-
HNA100UMoulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 100A 40kA CTC
-
HNA080UMoulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 80A 40kA CTC
-
HNA063UMoulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 63A 40kA CTC
-
HNW631JRMoulded Case Circuit Breaker h3+ P630 LSI 4P4D N0-50-100% 630A 40kA FTC
-
HNA025UMoulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 25A 40kA CTC
-
HHA125UMoulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 125A 25kA CTC
-
HHA100UMoulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 100A 25kA CTC
-
HHA080UMoulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 80A 25kA CTC
-
HHA063UMoulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 63A 25kA CTC
-
HHA040UMoulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 40A 25kA CTC
-
HHA025UMoulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 25A 25kA CTC
-
HDA016ZMoulded Case Circuit Breaker h3 x160 TM FIX 3P3D 16A 18kA CTC
Technical characteristics
Electric current
-
Rated current3 A
-
Rated current 230 V AC153 A
Connectivity
-
Type of connectionquickconnect
-
Mounting typeClick mounting
Connection
-
Type of contacts1NC+1NO
-
Cross-section flexible conductor0.5 - 1.25 mm²
-
Cross-section rigid conductor0.5 - 1.25 mm²
Voltage
-
Rated insulation voltage Ui250 V
-
Rated impulse withstand voltage Uimp1500 V
-
Type voltage supplyAC/DC
Power
-
Total power loss under IN3 W
Equipment
-
Number of INV contacts0
-
Number of NC contacts1
Safety
-
Ingress Protection (IP) classIP4X
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

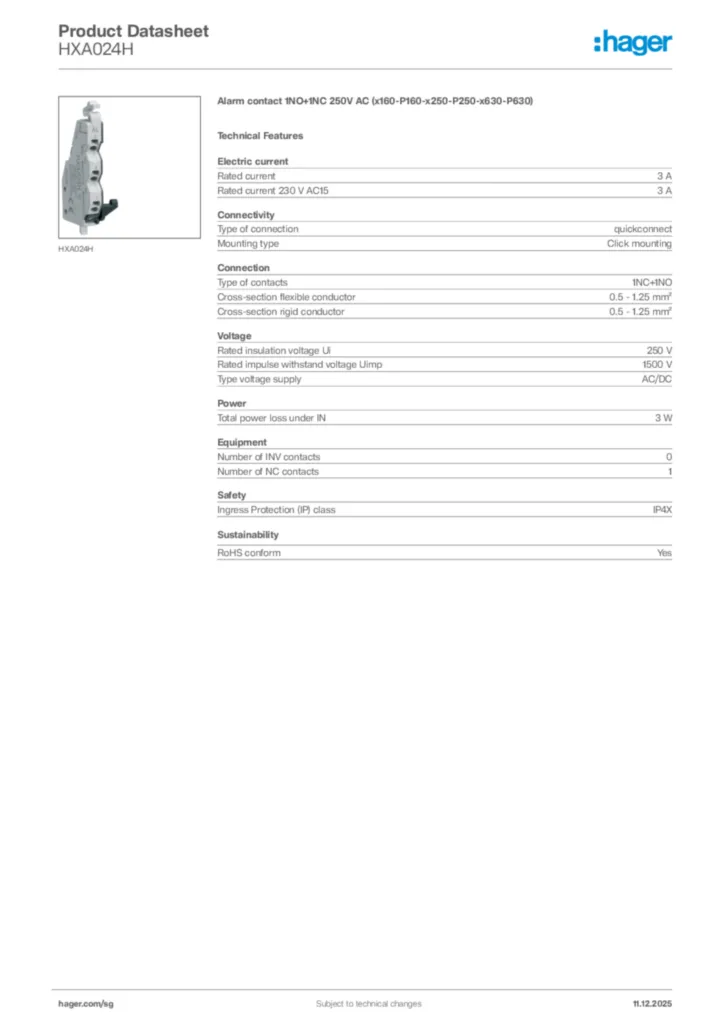

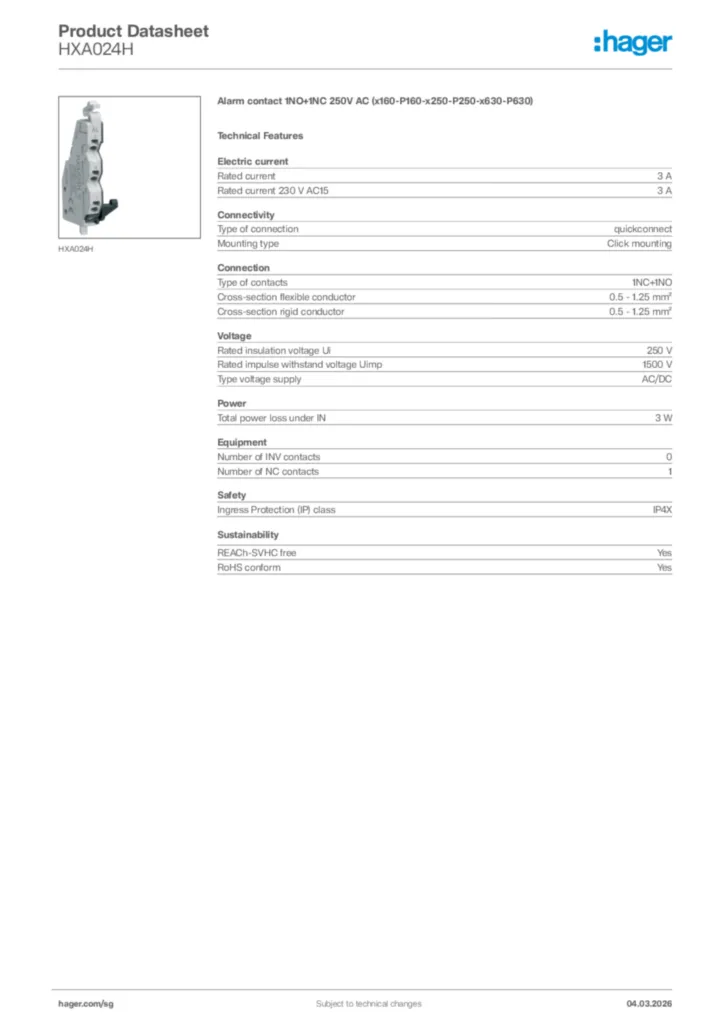

Product datasheet
Hager Product data sheet HXA024H
Alarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
PDF -
Installation manual
Manual for HXA0xx - Shunt trip, undervoltage release (Date: 2020-06)
Installation manual International 2017-06-20
PDF6,65 MB -
Handbook
Technical catalogue
h3+ Moulded Case Circuit breakers up to 630A
PDF48,86 MB
