Auxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630) HXA021H

EAN-Nr.
3250613346416
Packaging
1 piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Auxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)

HXA021H

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products

Complete your system

Compatible products

  • Referenced by 359 products available

Referenced by

  • HHA125U

    Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 125A 25kA CTC

    0.00 €  / *
  • HMS025DR

    Moulded Case Circuit Breaker h3+ P160 TM ADJ 3P3D 25A 50kA FTC

    0.00 €  / *
  • HNS160DR

    Moulded Case Circuit Breaker h3+ P160 TM ADJ 3P3D 160A 40kA FTC

    0.00 €  / *
  • HNS125DR

    Moulded Case Circuit Breaker h3+ P160 TM ADJ 3P3D 125A 40kA FTC

    0.00 €  / *
  • HNA160U

    Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 160A 40kA CTC

    0.00 €  / *
  • HNA125U

    Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 125A 40kA CTC

    0.00 €  / *
  • HNA100U

    Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 100A 40kA CTC

    0.00 €  / *
  • HNA080U

    Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 80A 40kA CTC

    0.00 €  / *
  • HNA063U

    Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 63A 40kA CTC

    0.00 €  / *
  • HNA040U

    Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 40A 40kA CTC

    0.00 €  / *
  • HNA025U

    Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 25A 40kA CTC

    0.00 €  / *
  • HMS040DR

    Moulded Case Circuit Breaker h3+ P160 TM ADJ 3P3D 40A 50kA FTC

    0.00 €  / *
  • HHA100U

    Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 100A 25kA CTC

    0.00 €  / *
  • HHA080U

    Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 80A 25kA CTC

    0.00 €  / *
  • HHA063U

    Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 63A 25kA CTC

    0.00 €  / *
  • HHA040U

    Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 40A 25kA CTC

    0.00 €  / *
  • HHA025U

    Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 25A 25kA CTC

    0.00 €  / *
  • HNW631JR

    Moulded Case Circuit Breaker h3+ P630 LSI 4P4D N0-50-100% 630A 40kA FTC

    0.00 €  / *
  • HDA025U

    Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 25A 18kA CTC

    0.00 €  / *
  • HDA040U

    Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 40A 18kA CTC

    0.00 €  / *

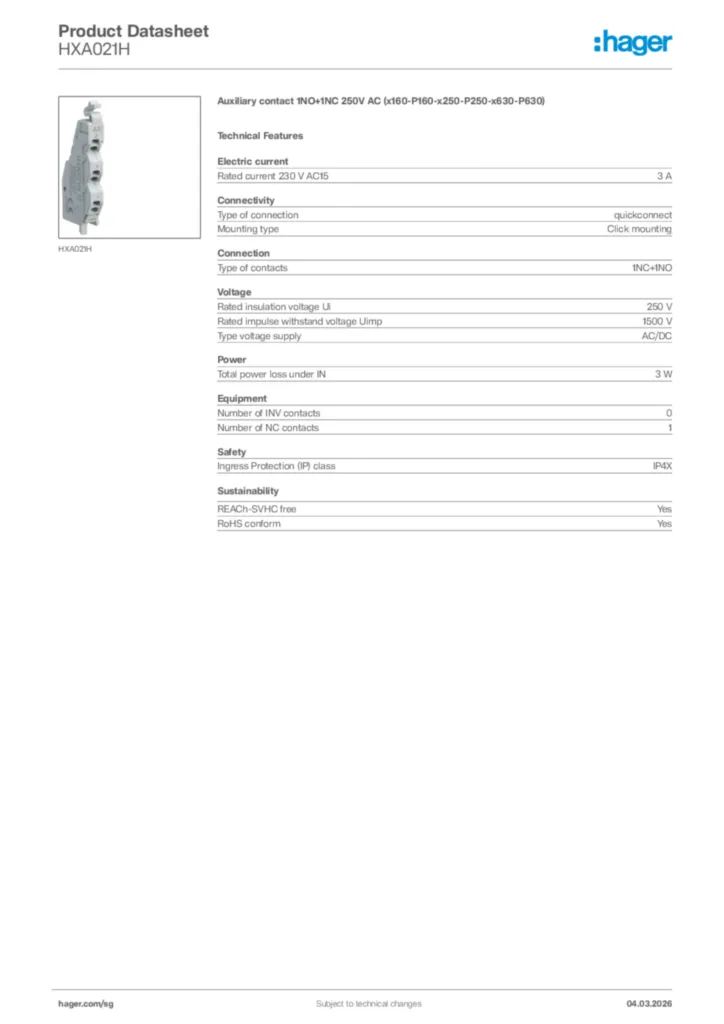

Technical characteristics

Elec­tric current
  • Rated current 230 V AC15
    3 A
Connectivity
  • Type of connec­tion
    quick­con­nect
  • Mounting type
    Click mounting
Connec­tion
  • Type of contacts
    1NC+1NO
Voltage
  • Rated insu­la­tion voltage Ui
    250 V
  • Rated impulse with­stand voltage Uimp
    1500 V
  • Type voltage supply
    AC/DC
Power
  • Total power loss under IN
    3 W
Equip­ment
  • Number of INV contacts
    0
  • Number of NC contacts
    1
Safety
  • Ingress Protec­tion (IP) class
    IP4X

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
REACh-SVHC free Yes
