Charging station witty plus 1x22kW 1/3ph+N att. cable XVL122C
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for E-Mobility 1 products available
Technical properties
Power
-
Power per charging point22 kW
-
Connected load0.1 - 22 kW
Frequency
-
Frequency50 - 60 Hz
Power supply
-
Number of phases for power supply1, 3
Electric current
-
Rated current32 A
Connectivity
-
Number of charging points1
Functions
-
With load managementYes
Equipment
-
Number of house sockets0
-
With circuit breakerNo
-
With emergency release at power failureYes
Connection
-
Connector/plug typeType 2
Dimensions
-
Height370 mm
-
Width250 mm
-
Depth150 mm
Installation, mounting
-
Mounting onWall mounting
Safety
-
Ingress Protection (IP) classIP55
-
Impact resistance IKIK10
Use conditions
-
Operating temperature-25 - 50 °C
Voltage
-
Nominal voltage230-240 V
Materials
-
MaterialPlastic
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

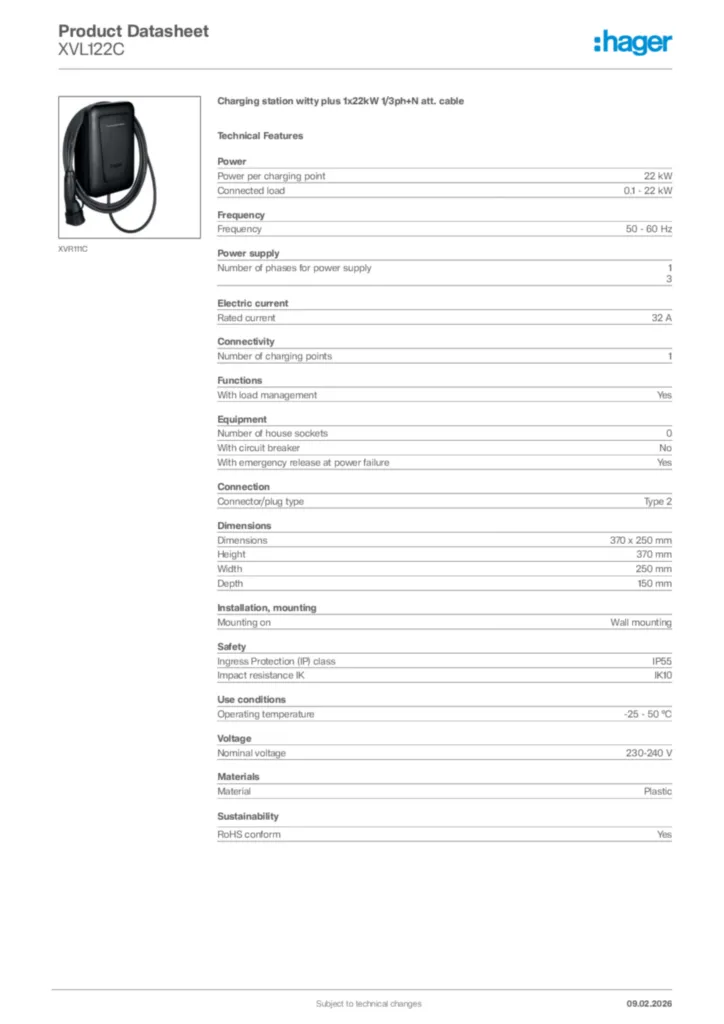

Hager Product data sheet XVL122C
