The Hager Gallery 3-position key switch (1-0-2) with key extraction in 0 provides secure, authorized control for lighting, HVAC or access modes. Rated 16 A, 50-60 Hz, it installs by click mounting with only 34 mm built-in depth. Glossy white RAL1013 polycarbonate with central cover plate, IK02 impact resistance. Non-illuminated. Ideal for residential and light commercial applications.
EAN
3250617198806
Packaging
1 Piece
Gallery key switch 3-position 1-0-2 16A jet black RAL9005 key out at 0 WXF617D
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Electric current
-
Rated current16 A
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourWhite
-
RAL code1013
-
Surface finishGlossy
-
MaterialPolycarbonate (PC)
-
TreatmentUntreated
Identification
-
Assembly arrangementBasic element with central cover plate
Connectivity
-
Mounting typeClick mounting
Controls and indicators
-
Number of buttons0
Dimensions
-
Built-in depth34 mm
-
Built-in depth flush-mounted boxes34 mm
Safety
-
Impact resistance IKIK02
Texts
-
LightingWithout lighting (cannot be illuminated)
-
Switch modeGroup switch 1-0-2
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

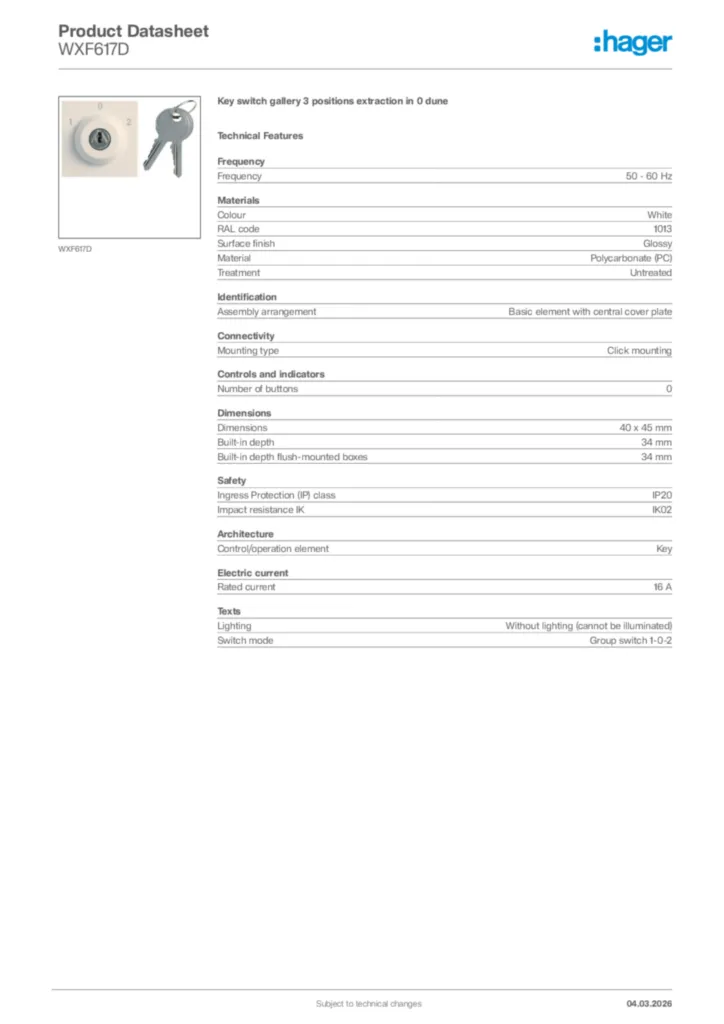

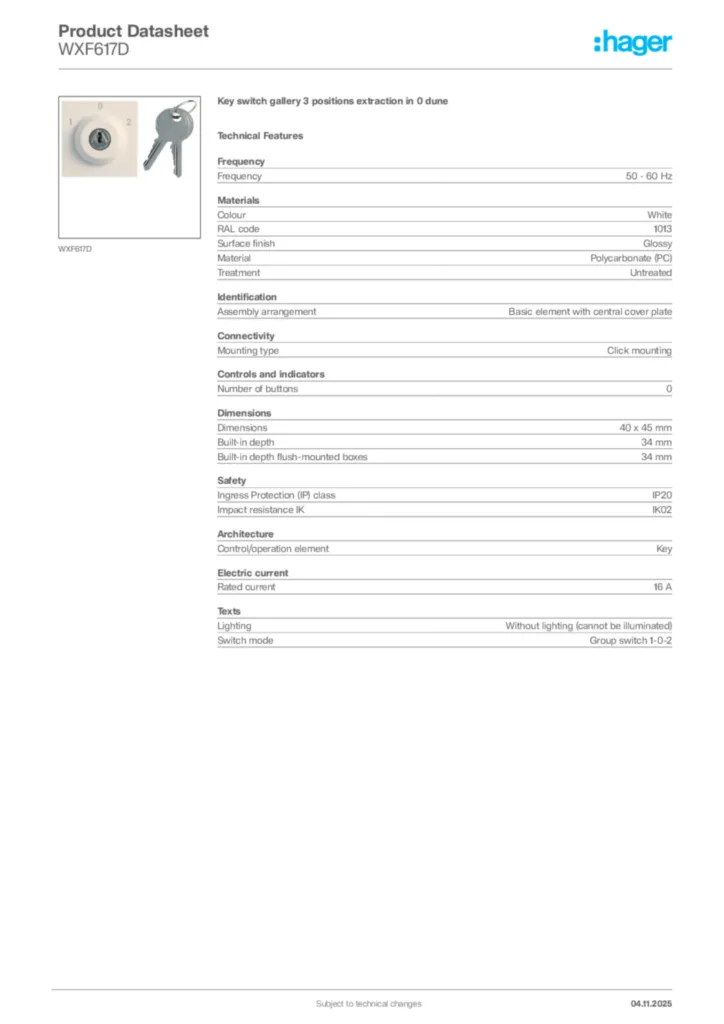

Product datasheet
Hager Product data sheet WXF617D
Key switch gallery 3 positions extraction in 0 dune
PDF -
Declaration of conformity
Declaration of conformity International 2021-06-14
PDF102,80 kB
