The Hager gallery triple 2P+E 16A socket with keying (détrompage) provides safe, convenient power in wall-duct trunking. French standard outlets with rotated insert and round earth ensure correct connection and enhanced contact protection. Robust PC (IK07), IP20. Fast click mounting. Red RAL3020 aids circuit identification. 50-60 Hz. 6 modules, 3 outlets. Ideal for commercial trunking runs.

EAN

3250617192767

Packaging

Schuko socket 2P+E 16A Gallery click-mount Traffic white RAL9016 IP21 IK05 WXF433

Technical properties
Environmental value
Documentations
More products

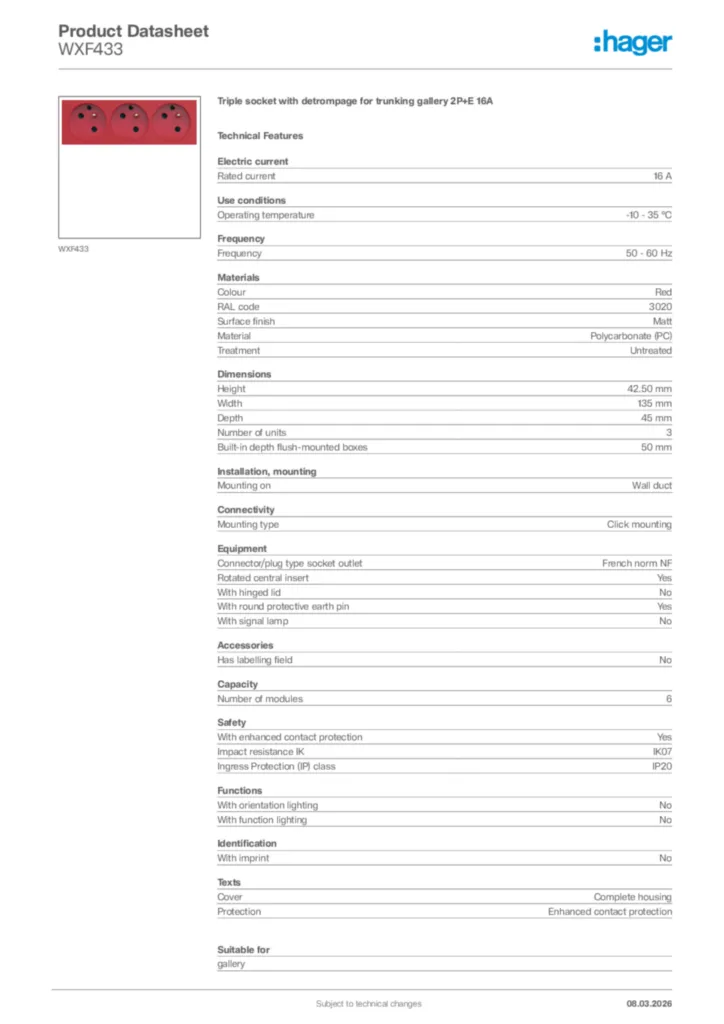

Download the data sheet

Technical properties

Rated current

16 A

Frequency

50 - 60 Hz

Colour

Red
RAL code

3020
Surface finish

Matt
Material

Polycarbonate (PC)
Treatment

Untreated

Height

42.50 mm
Width

135 mm
Depth

45 mm
Number of units

3
Built-in depth flush-mounted boxes

50 mm

Mounting on

Wall duct

Mounting type

Click mounting

Connector/plug type socket outlet

Earthing pin
Rotated central insert

Yes
With hinged lid

No
With round protective earth pin

Yes
With signal lamp

No

Has labelling field

No

Number of modules

6

With enhanced contact protection

Yes
Impact resistance IK

IK07
Ingress Protection (IP) class

IP20

With orientation lighting

No
With function lighting

No

With imprint

No

Related Systems

gallery

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Halogen free Yes
