The Hager triple socket for trunking gallery 2P+E 16A in orange (RAL2009) provides three French-standard outlets with round earth pin for office and workstation power. Rated 16 A, 50-60 Hz. Fast click/snap-on mounting on wall ducts, 6 modules wide. Durable glossy polycarbonate, IK07, IP20, enhanced contact protection. Rotated central insert for easier access. Built-in depth 50 mm.

EAN

3250617198592

Packaging

Triple socket gallery 2P+E 16A French Snap-on Wall duct Jet black RAL9005 WXF423E

Name: WXF423E
Brand: Hager
SKU: WXF423E

Also available in

Product colour - Orange

Technical properties
Environmental value
Documentations
More products

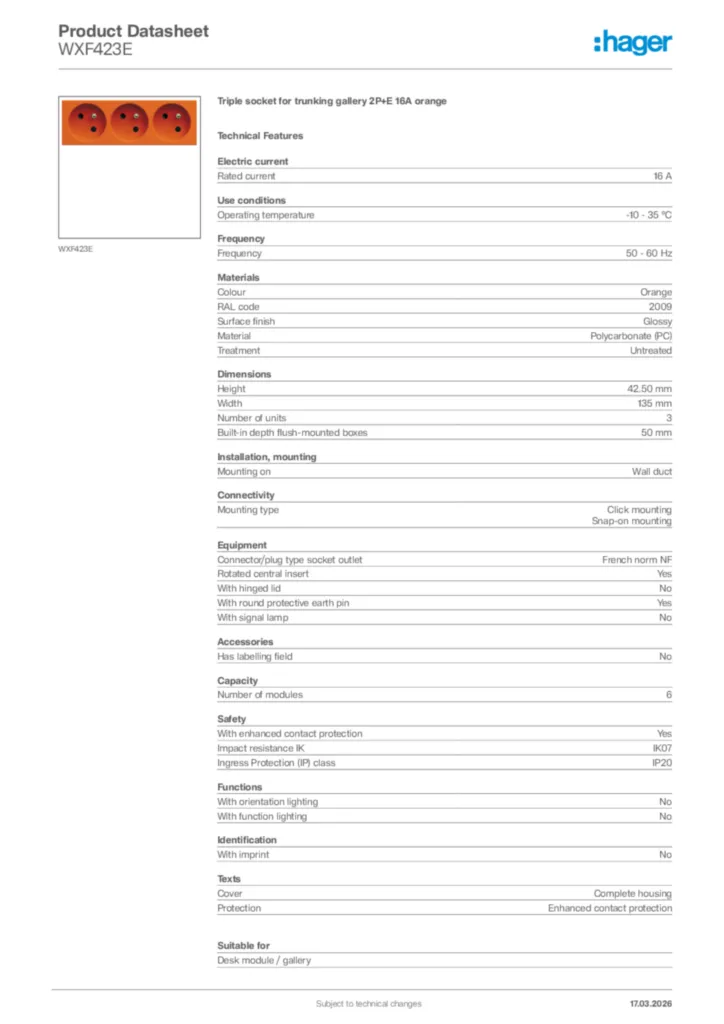

Download the data sheet

Technical properties

Rated current

16 A

Frequency

50 - 60 Hz

Colour

Orange
RAL code

2009
Surface finish

Glossy
Material

Polycarbonate (PC)
Treatment

Untreated

Height

42.50 mm
Width

135 mm
Number of units

3
Built-in depth flush-mounted boxes

50 mm

Mounting on

Wall duct

Mounting type

Click mounting, Snap-on mounting

Connector/plug type socket outlet

Earthing pin
Rotated central insert

Yes
With hinged lid

No
With round protective earth pin

Yes
With signal lamp

No

Has labelling field

No

Number of modules

6

With enhanced contact protection

Yes
Impact resistance IK

IK07
Ingress Protection (IP) class

IP20

With orientation lighting

No
With function lighting

No

With imprint

No

Related Systems

Desk module, gallery

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
