The Hager double socket for trunking galleries, 2P+E 16A (Titanium), delivers reliable power in desk modules and wall ducts. French NF with round earth pin and rotated insert for easy plug access. Fast click mounting. Robust PC, satin varnished RAL9006, IK07, IP20, enhanced contact protection. 50-60 Hz, 4 modules, 42.5×90 mm, 50 mm depth—ideal for office and commercial installations.

EAN

3250617198561

Packaging

Double socket 2P+E 16A for gallery trunking Green IK07 rotated insert WXF422T

Technical properties
Environmental value
Documentations
More products

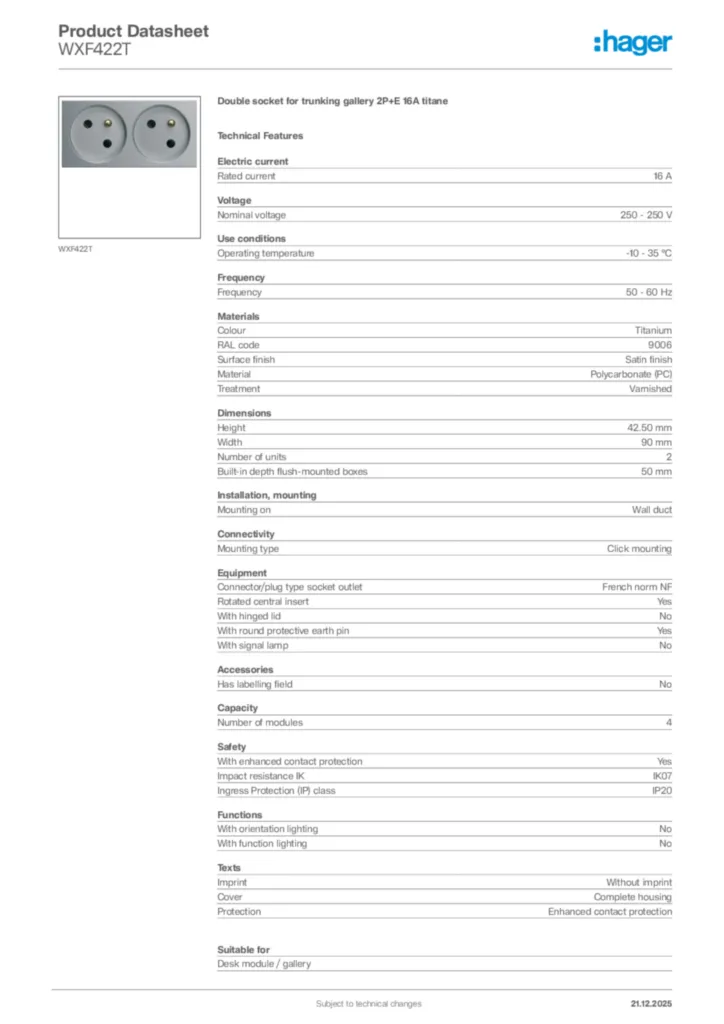

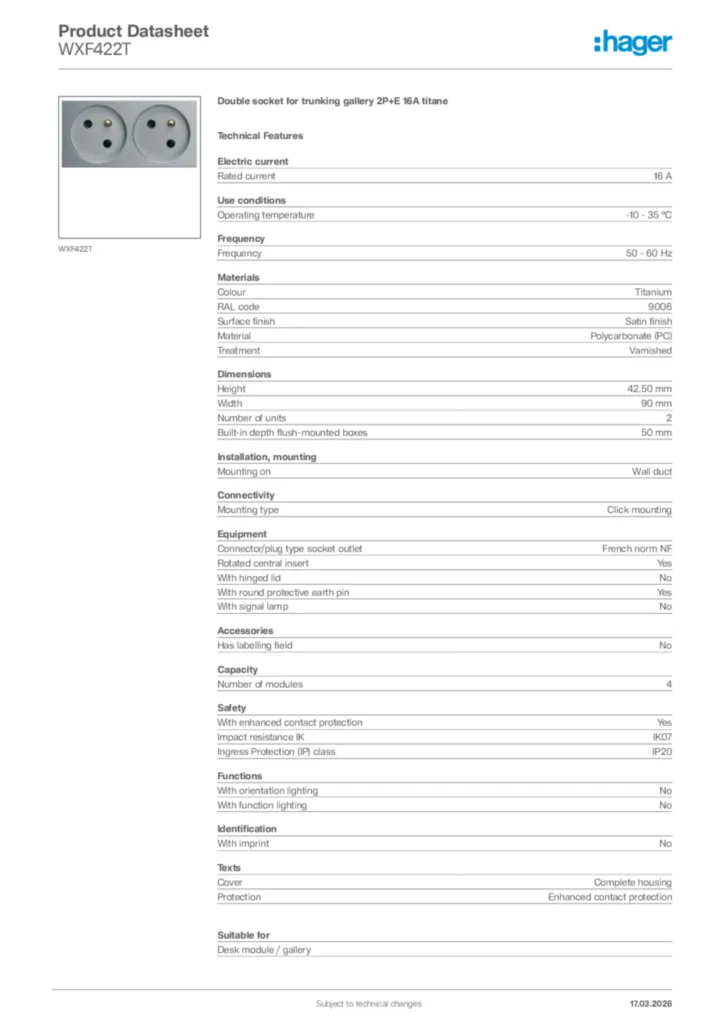

Download the data sheet

Technical properties

Rated current

16 A

Frequency

50 - 60 Hz

Colour

Titanium
RAL code

9006
Surface finish

Satin finish
Material

Polycarbonate (PC)
Treatment

Varnished

Height

42.50 mm
Width

90 mm
Number of units

2
Built-in depth flush-mounted boxes

50 mm

Mounting on

Wall duct

Mounting type

Click mounting

Connector/plug type socket outlet

Earthing pin
Rotated central insert

Yes
With hinged lid

No
With round protective earth pin

Yes
With signal lamp

No

Has labelling field

No

Number of modules

4

With enhanced contact protection

Yes
Impact resistance IK

IK07
Ingress Protection (IP) class

IP20

With orientation lighting

No
With function lighting

No

With imprint

No

Related Systems

Desk module, gallery

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
