The Hager double socket for trunking gallery, 2P+E 16A, delivers reliable power for office and commercial installations. French standard with round earth pin, it fits wall ducts with fast click mounting. Rotated inserts ease bulky plug connection. Durable PC body, satin jet black (RAL9005), varnished. Safety features include enhanced contact protection, IK07 impact resistance, and IP20 rating. 50-60 Hz, 4 modules.

EAN

3250617198547

Packaging

Double socket 2P+E 16A Red RAL3020 for trunking gallery, rotated insert WXF422N

Technical properties
Environmental value
Documentations
More products

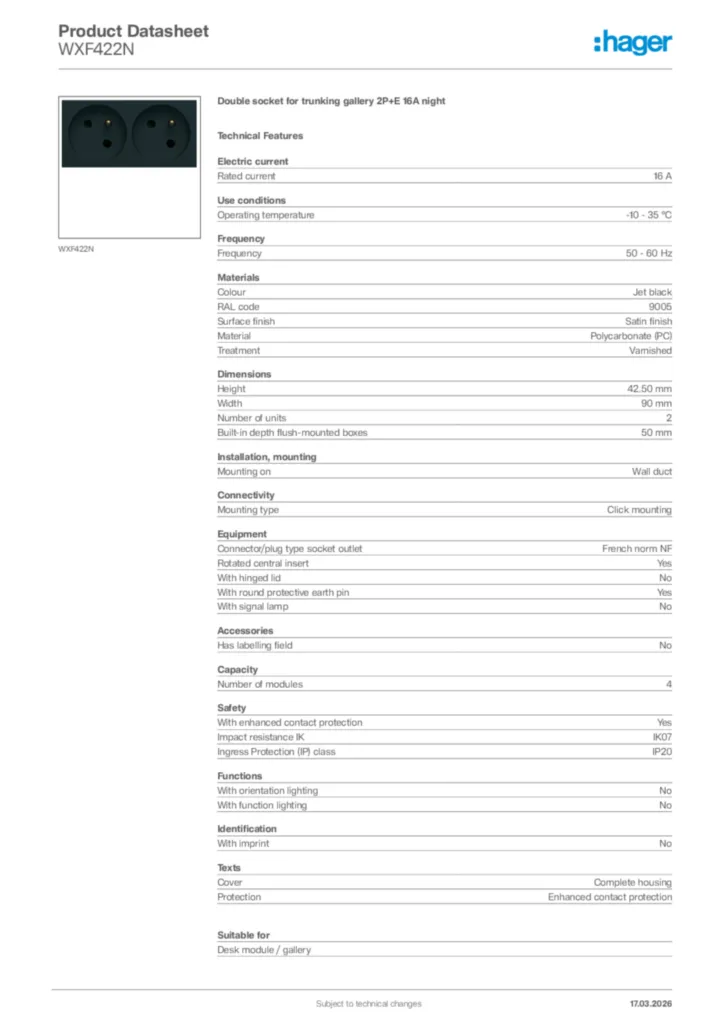

Download the data sheet

Technical properties

Rated current

16 A

Frequency

50 - 60 Hz

Colour

Jet black
RAL code

9005
Surface finish

Satin finish
Material

Polycarbonate (PC)
Treatment

Varnished

Height

42.50 mm
Width

90 mm
Number of units

2
Built-in depth flush-mounted boxes

50 mm

Mounting on

Wall duct

Mounting type

Click mounting

Connector/plug type socket outlet

Earthing pin
Rotated central insert

Yes
With hinged lid

No
With round protective earth pin

Yes
With signal lamp

No

Has labelling field

No

Number of modules

4

With enhanced contact protection

Yes
Impact resistance IK

IK07
Ingress Protection (IP) class

IP20

With orientation lighting

No
With function lighting

No

With imprint

No

Related Systems

Desk module, gallery

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
