The Hager 2P+E 16A double socket for trunking galleries delivers safe, convenient power distribution in offices and workstations. French NF standard with earth pin, rotated inserts for bulky plugs, and enhanced contact protection. Quick click mounting on wall ducts, 4-module width. Durable IK07 polycarbonate, IP20, glossy traffic white (RAL9016). Ideal for desk modules and gallery systems, 50-60 Hz.

EAN

3250617191845

Packaging

Double socket 2P+E 16A French NF Click-mount Gallery trunking Orange IP20 WXF422B

Name: WXF422B
Brand: Hager
SKU: WXF422B

Also available in

Product colour - Traffic white

Technical properties
Environmental value
Documentations
More products

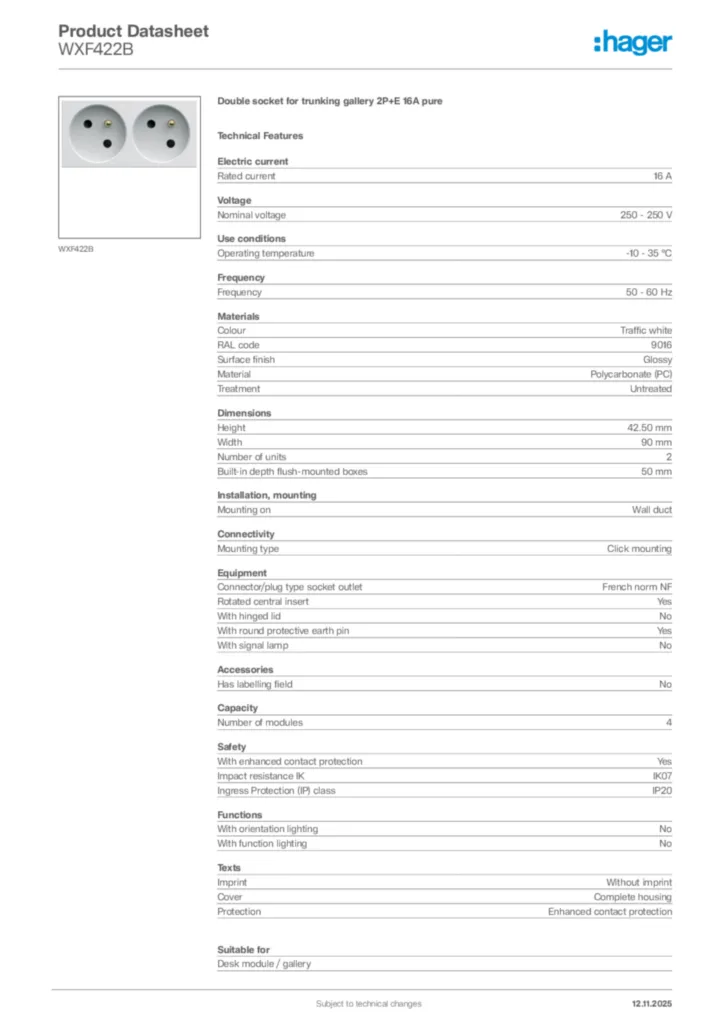

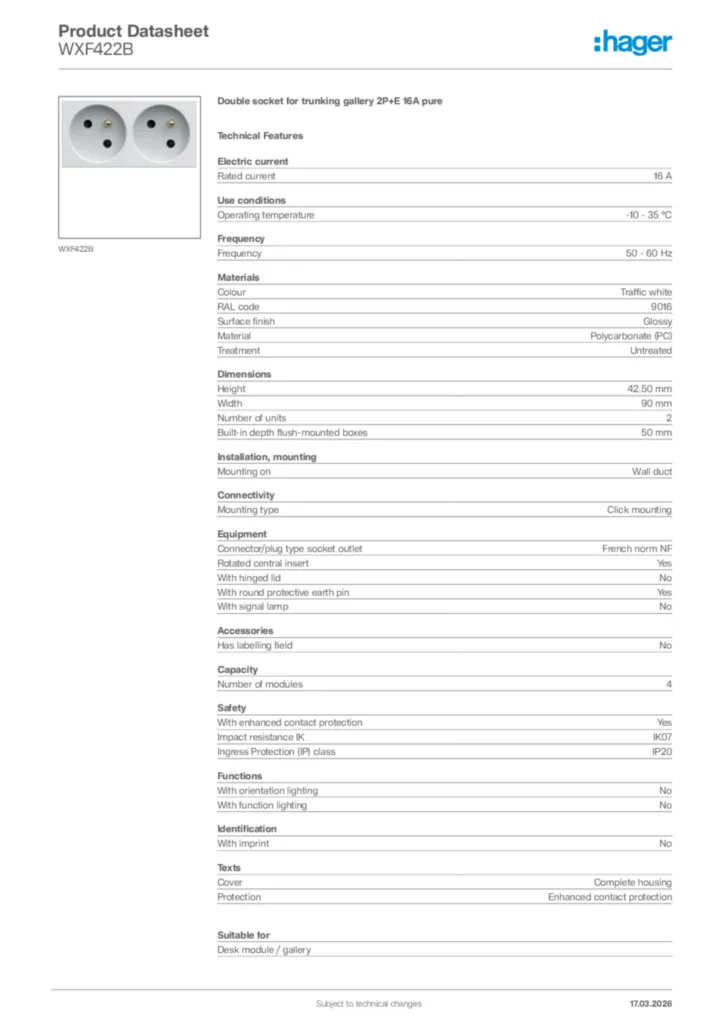

Download the data sheet

Technical properties

Rated current

16 A

Frequency

50 - 60 Hz

Colour

Traffic white
RAL code

9016
Surface finish

Glossy
Material

Polycarbonate (PC)
Treatment

Untreated

Height

42.50 mm
Width

90 mm
Number of units

2
Built-in depth flush-mounted boxes

50 mm

Mounting on

Wall duct

Mounting type

Click mounting

Connector/plug type socket outlet

Earthing pin
Rotated central insert

Yes
With hinged lid

No
With round protective earth pin

Yes
With signal lamp

No

Has labelling field

No

Number of modules

4

With enhanced contact protection

Yes
Impact resistance IK

IK07
Ingress Protection (IP) class

IP20

With orientation lighting

No
With function lighting

No

With imprint

No

Related Systems

Desk module, gallery

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Halogen free Yes
