The Hager 2P+E 16A Titanium socket for trunking galleries delivers reliable power distribution in wall ducts and desk modules. French NF standard with earth pin and rotated insert for bulky plugs. Quick click mounting, 3 modules, 50 mm depth. Durable varnished PC in satin RAL9006. Rated 16 A, 50-60 Hz. Safety-focused with enhanced contact protection, IK07 impact resistance, and IP20 rating.

EAN

3250617198509

Packaging

Trunking socket 2P+E 16A French NF Green RAL6024 Rotated insert 3 modules WXF421T

Technical properties
Environmental value
Documentations
More products

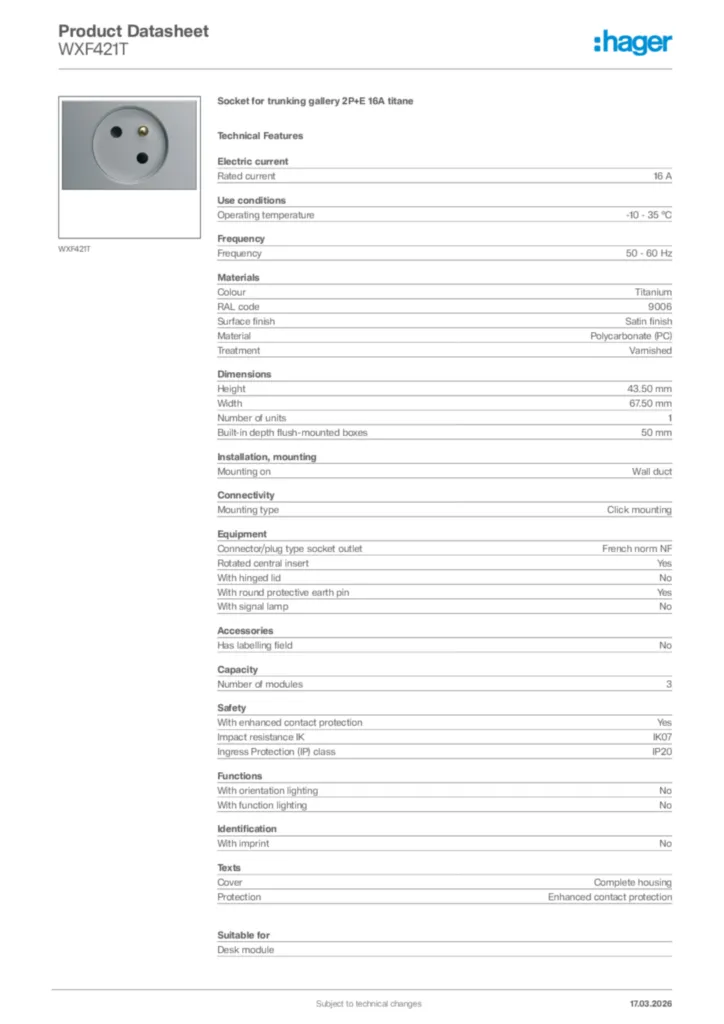

Download the data sheet

Technical properties

Rated current

16 A

Frequency

50 - 60 Hz

Colour

Titanium
RAL code

9006
Surface finish

Satin finish
Material

Polycarbonate (PC)
Treatment

Varnished

Height

43.50 mm
Width

67.50 mm
Number of units

1
Built-in depth flush-mounted boxes

50 mm

Mounting on

Wall duct

Mounting type

Click mounting

Connector/plug type socket outlet

French norm NF
Rotated central insert

Yes
With hinged lid

No
With round protective earth pin

Yes
With signal lamp

No

Has labelling field

No

Number of modules

3

With enhanced contact protection

Yes
Impact resistance IK

IK07
Ingress Protection (IP) class

IP20

With orientation lighting

No
With function lighting

No

With imprint

No

Related Systems

Desk module

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
