The Hager 2P+E 16A red socket for trunking galleries is a French standard outlet for wall ducts, ideal for office and commercial desk modules. Click mounting speeds installation, while the rotated insert improves plug access. Made of glossy PC (RAL3020) with IK07 impact resistance and IP20, it offers enhanced contact protection. 50-60 Hz, 3‑module design, 50 mm built-in depth.

EAN

3250617198493

Packaging

Trunking socket 2P+E 16A rotated insert Titanium, 3 modules WXF421R

Name: WXF421R
Brand: Hager
SKU: WXF421R

Also available in

Product colour - Red

Technical properties
Environmental value
Documentations
More products

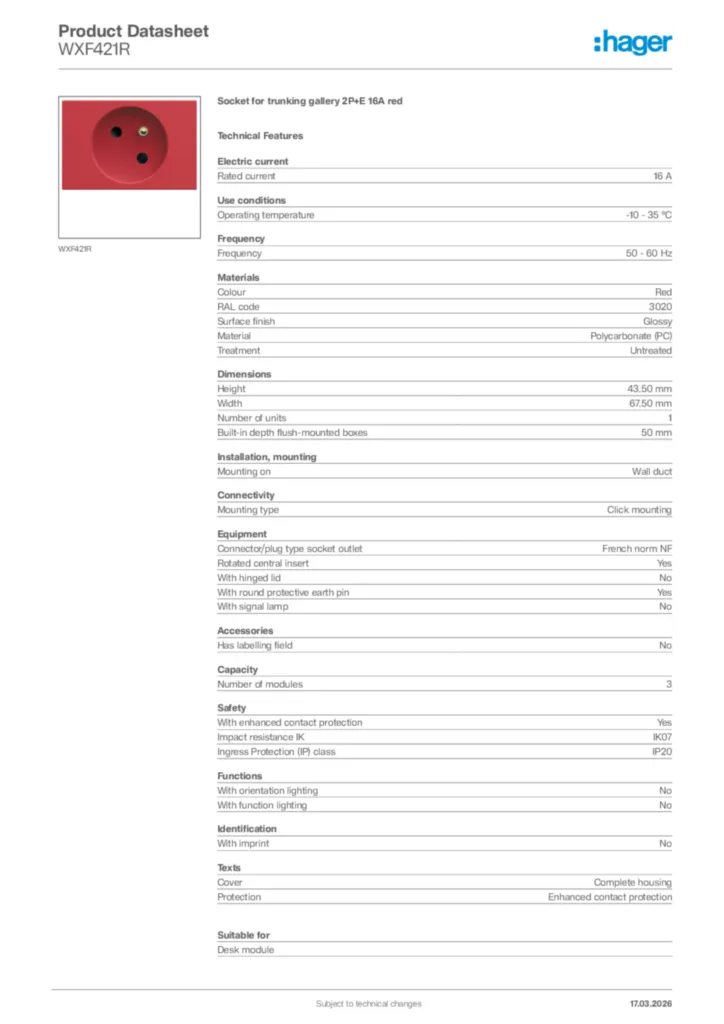

Download the data sheet

Technical properties

Rated current

16 A

Frequency

50 - 60 Hz

Colour

Red
RAL code

3020
Surface finish

Glossy
Material

Polycarbonate (PC)
Treatment

Untreated

Height

43.50 mm
Width

67.50 mm
Number of units

1
Built-in depth flush-mounted boxes

50 mm

Mounting on

Wall duct

Mounting type

Click mounting

Connector/plug type socket outlet

French norm NF
Rotated central insert

Yes
With hinged lid

No
With round protective earth pin

Yes
With signal lamp

No

Has labelling field

No

Number of modules

3

With enhanced contact protection

Yes
Impact resistance IK

IK07
Ingress Protection (IP) class

IP20

With orientation lighting

No
With function lighting

No

With imprint

No

Related Systems

Desk module

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Halogen free Yes
