The Hager Gallery 3‑wire automatic switch is a flush‑mounted indoor motion detector for hands‑free lighting control. It offers 180° detection (90-180° horizontal) with up to 12 m frontal/8 m lateral range, adjustable sensitivity and daylight threshold (5-1000 lx), and a minimal 0.2 s duty. IP20, 50-60 Hz, designed for 1.10 m mounting height. Neutral required. Light grey matt polycarbonate finish. Ideal for corridors and rooms.

EAN

3250617192866

Packaging

1 Piece

Mechanismes

Automatic switch Gallery 2-wire no neutral, motion detector 180° 12m IP20 WXF051

Technical properties
Environmental value
Documentations
More products

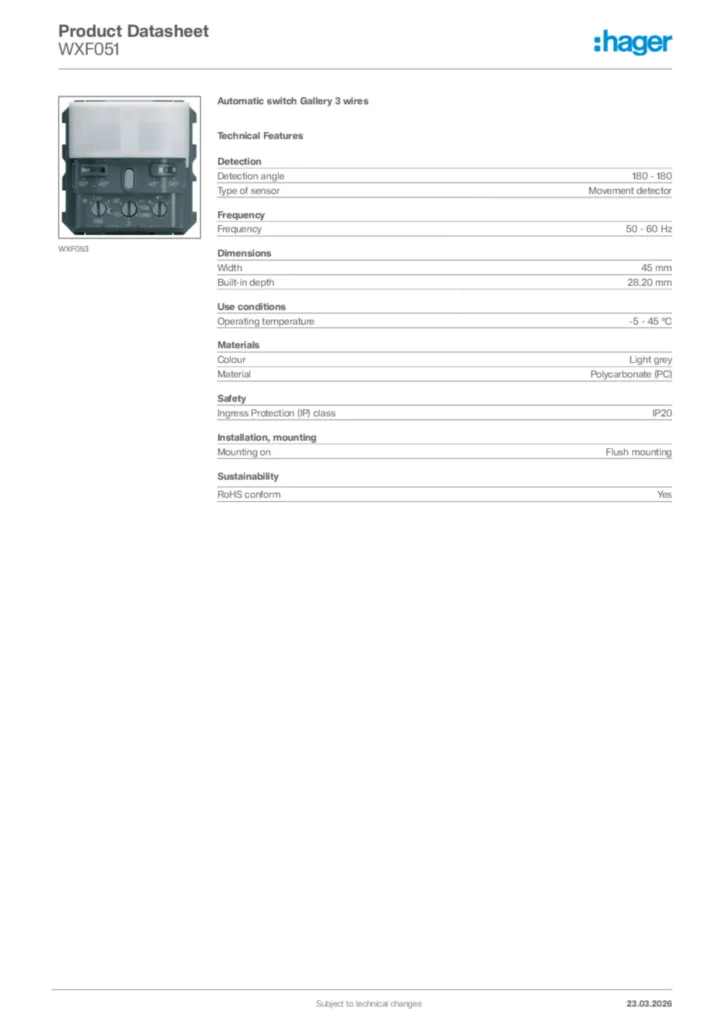

Download the data sheet

Technical properties

Detection angle

180 - 180
Type of sensor

Movement detector
Detection angle horizontal

90 - 180

Minimal duty cycle

0.20 s
Response brightness adjustable

Yes
Response sensitivity adjustable

Yes
Switch off delay time

0
Switch on delay time

0

Photocell sensitivity

5 - 1000 lx

Teach function for response value luminosity

Yes

Frequency

50 - 60 Hz

Width

45 mm
Built-in depth

28.20 mm
Installation height

1.10 - 1.10 m

Operating temperature

-5 - 45 °C

Colour

Light grey
Material

Polycarbonate (PC)
Surface finish

Matt

Ingress Protection (IP) class

IP20

C load

Yes
Substation input

Yes

Mounting on

Flush mounting
Ceiling mounting possible

No

Control current

1.30 - 1.30 mA

Max. transmission range frontally

12 m
Max. transmission range sideways

8 m
