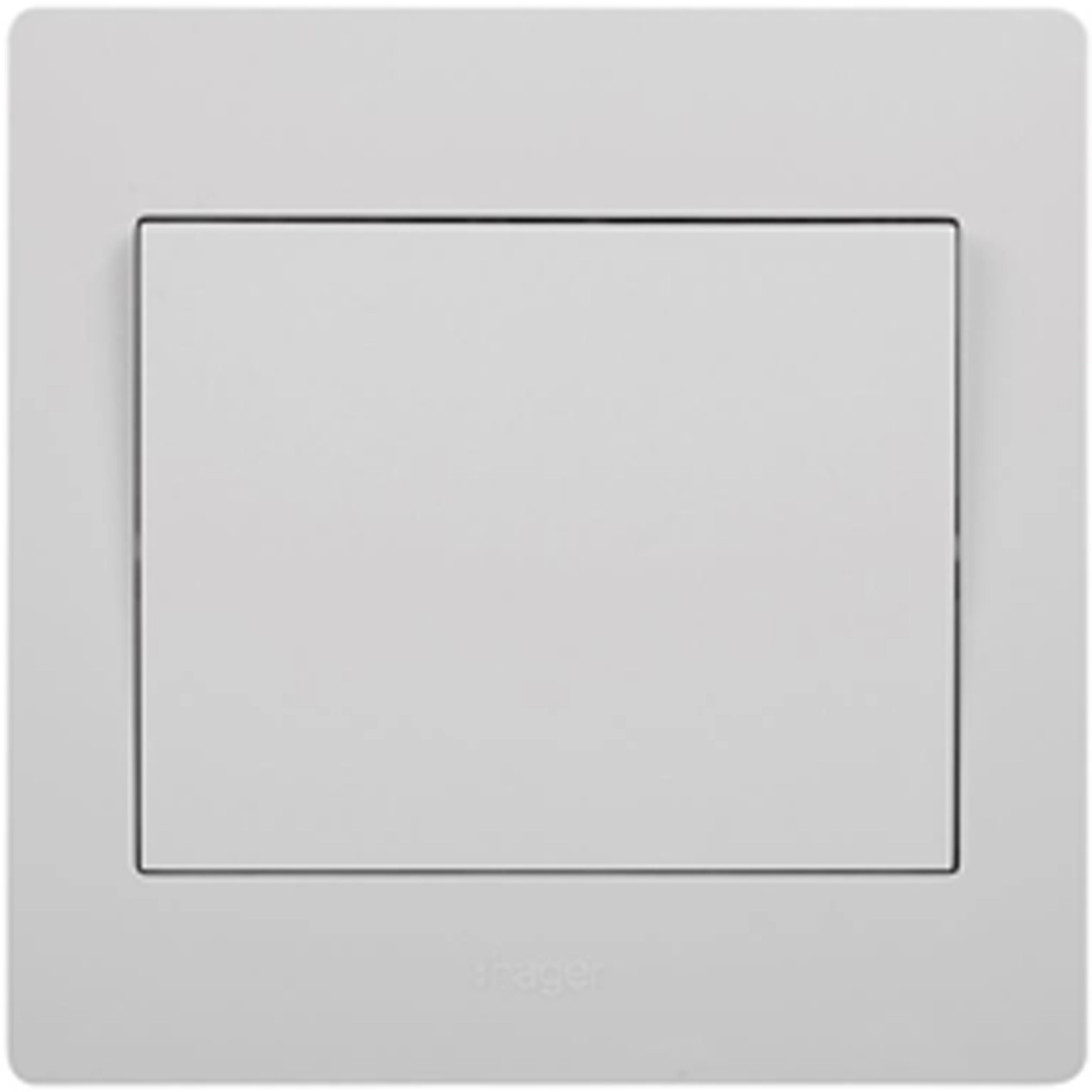

The Hager 10AX 1G Intermediate Switch enables control of a lighting circuit from three or more locations. Rated 10AX/10A at 250 V, 50-60 Hz, it supports up to 100 W LED (SBL). Designed for flush mounting, it fits 35 mm boxes with a 25 mm built-in depth. The white glossy polycarbonate finish suits modern interiors. Screw mounting and screw terminals ensure secure, easy installation. Unlit (not illuminable). 1 button.
EAN
3250617291750
VPE
10 pieces
Switch 1G 2W 16AX 250V Knight Black Matt PC WGML113
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Electric current
-
Switching current10 AX (100W LED (SBL))
-
Rated current IN10 A
Installation, mounting
-
Mounting onFlush mounting
Voltage
-
Rated voltage250 V
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourWhite
-
Surface finishGlossy
-
MaterialPolycarbonate (PC)
-
TreatmentUntreated
Identification
-
Assembly arrangementSurface-mounted frame
Accessories
-
Has labelling fieldNo
Connectivity
-
Mounting typeScrew mounting
Controls and indicators
-
Number of buttons1
Dimensions
-
Built-in depth25 mm
-
Built-in depth flush-mounted boxes35 mm
Connection
-
Type of contacts1 W + neutral
-
Connector/plug typeScrew terminal
Texts
-
LightingWithout lighting (cannot be illuminated)
Architecture
-
Control/operation elementSingle rocker
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

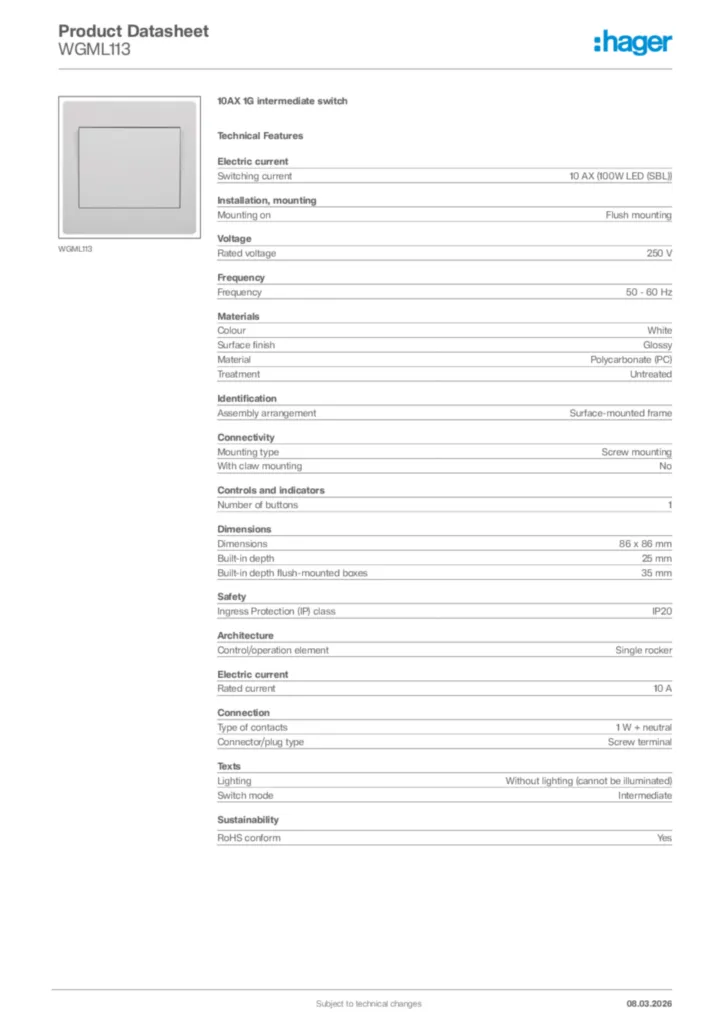

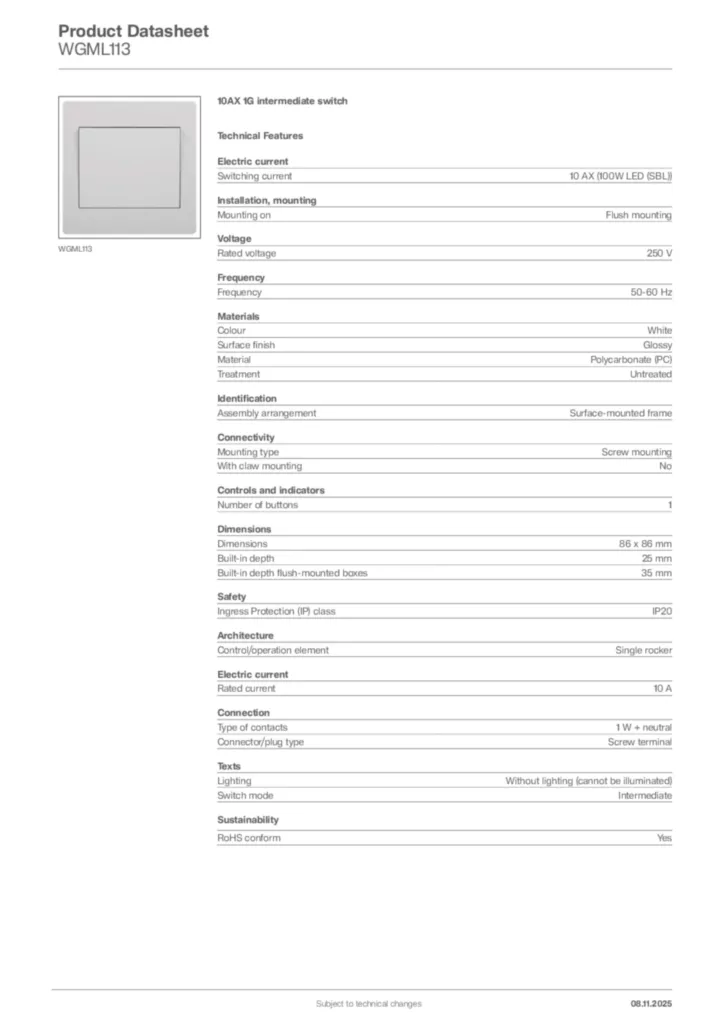

Hager Product data sheet WGML113
10AX 1G intermediate switch
PDF -
ProductECDeclaration
Declaration
Declaration of conformity en-GB 2022-12-29
PDF90,94 kB
More documentation
