The Hager 40-500W single dimmer provides smooth, quiet control for 230 V incandescent/halogen (40-500 W) and dimmable 230 V LED loads (40-250 W). Operating on 0-230 V, 50-60 Hz, it fits a compact 1-module space with 34 mm built-in depth. Robust white polycarbonate body, -5 to 45 °C operation, and 1.5-2.5 mm² terminals ensure easy, reliable installation for residential or light commercial lighting control.
EAN
3250617291484
Packaging
6
Socket outlet 2-pin+2-pin 10A 250V BS screw terminals flush mount WGMEDR500
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Voltage
-
Operating voltage0 - 230 V
-
Rated operational voltage Ue0-230 V
Connectivity
-
With bus system KNX radioNo
Frequency
-
Frequency50 - 60 Hz
Electric current
-
Control current170-2170 mA
Materials
-
ColourWhite
-
MaterialPolycarbonate (PC)
Dimensions
-
Built-in depth34 mm
-
Height41 mm
-
Width86 mm
-
Depth41 mm
Architecture
-
Control/operation elementDimmer
Power
-
230 V incandescent and halogen lamp500 W
-
Power incandescent lamp40-500 W
Lighting
-
Dimmable 230 V LED lamp40-250 W
-
LED lamp power0
Use conditions
-
Operating temperature-5 - 45 °C
Connection
-
Cross-section rigid conductor1.5 - 2.5 mm²
-
Cross-section flexible conductor1.5 - 2.5 mm²
Capacity
-
Number of modules1
Equipment
-
Substation inputNo
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

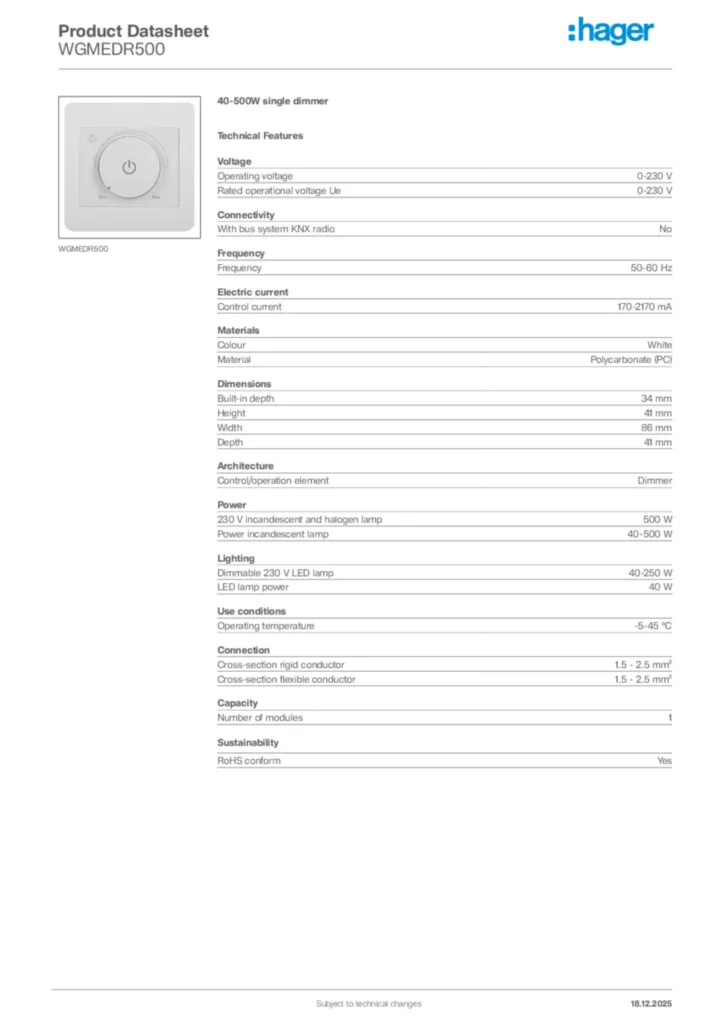

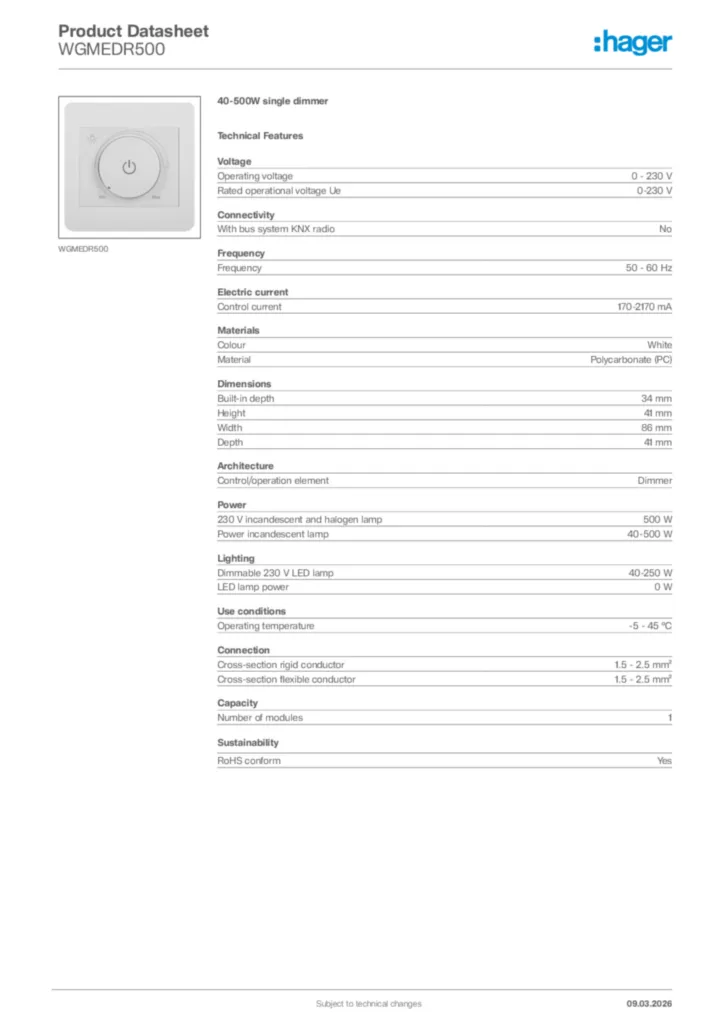

Product datasheet
