The Hager 13A Single Switched Socket provides reliable, switched power for everyday use. Rated 250 V, 13 A, 50-60 Hz, it meets British Standard and allows safe isolation via the integrated switch. Flush, screw mounting with screw terminals (0.08-4 mm²) ensures secure wiring. Made of glossy white polycarbonate, IK02 and IP20 for indoor use. Ideal for residential and light commercial applications; part of the shark system.

EAN

3250617507776

Packaging

Dream -socket outlets

Universal socket 2+3 pin 16A 250V BS Flush mount Screw terminal Knight Black WGDS113S

Technical properties
Environmental value
Documentations
More products

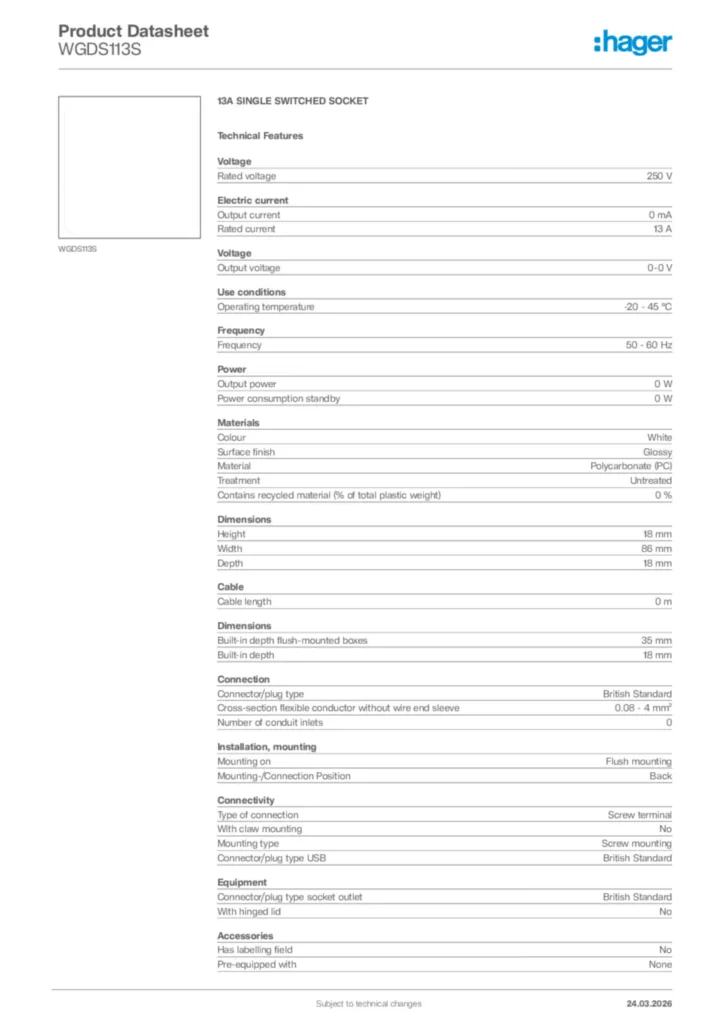

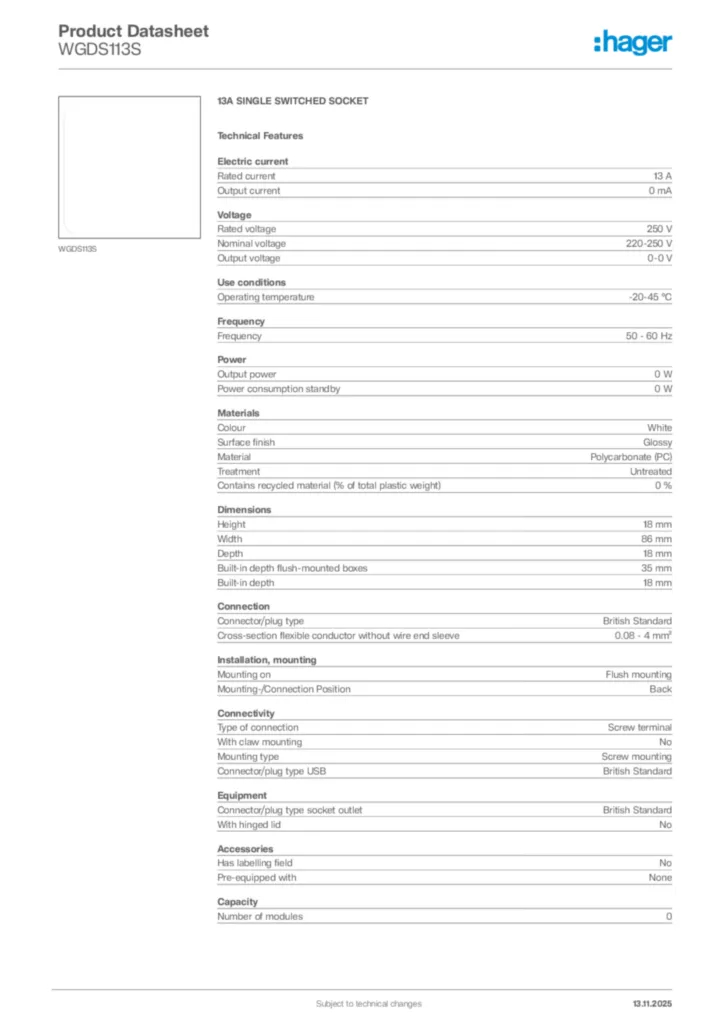

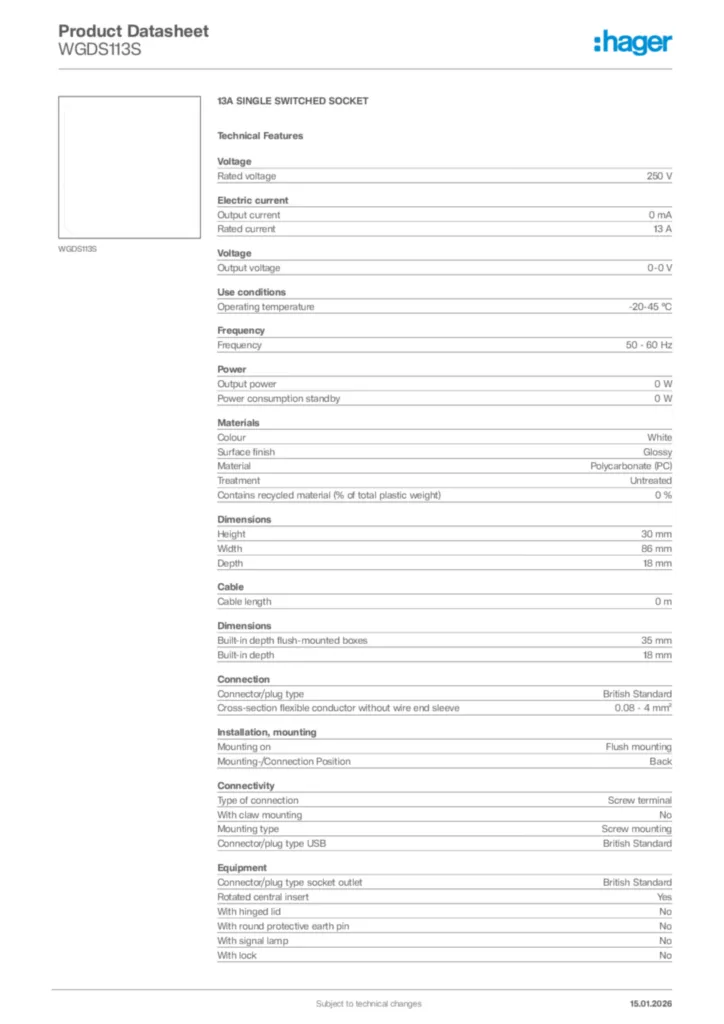

Download the data sheet

Technical properties

Rated voltage

250 V
Output voltage

0-0 V

Output current

0
Rated current

13 A

Frequency

50 - 60 Hz

Output power

0
Power consumption standby

0

Colour

White
Surface finish

Glossy
Material

Polycarbonate (PC)
Treatment

Untreated
Contains recycled material (% of total plastic weight)

0

Height

18 mm
Width

86 mm
Depth

18 mm
Built-in depth flush-mounted boxes

35 mm
Built-in depth

18 mm

Cable length

0

Connector/plug type

British Standard
Cross-section flexible conductor without wire end sleeve

0.08 - 4 mm²
Number of conduit inlets

0

Mounting on

Flush mounting
Mounting-/Connection Position

Back

Type of connection

Screw terminal
With claw mounting

No
Mounting type

Screw mounting
Connector/plug type USB

British Standard

Connector/plug type socket outlet

British Standard
With hinged lid

No

Has labelling field

No
Pre-equipped with

None

Number of modules

0

With enhanced contact protection

No
Impact resistance IK

IK02
Ingress Protection (IP) class

IP20

With orientation lighting

No
With function lighting

No

With imprint

No

Related Systems

shark

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

REACh-SVHC free Yes
