The Hager 115/230V shaver socket provides convenient power for shavers and toothbrush chargers in residential or hospitality settings. Compatible with 50-60 Hz, it features a British Standard outlet, flush screw mounting, and screw terminals for secure wiring (0.08-4 mm²). Durable matt gold polycarbonate front, IP20 and IK02 rated. Compact 86×45 mm with 45 mm built-in depth for neat, space-saving installation. Rated current: 0.08 A.

EAN

3250617290333

Packaging

1 Piece

Dream - Hotel range

Shaver socket 115/230V British Standard Flush mounting White IP20 WGDHSREG

Name: WGDHSREG
Brand: Hager
SKU: WGDHSREG

Also available in

Product colour - Gold

On/off switch

No Yes

Technical properties
Environmental value
Documentations
More products

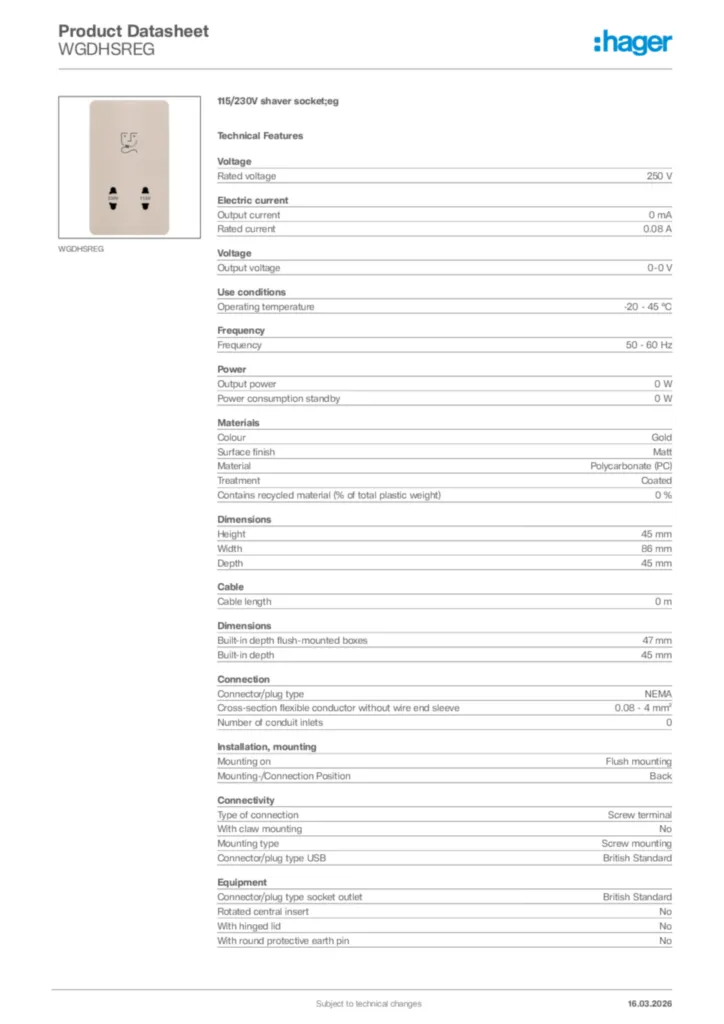

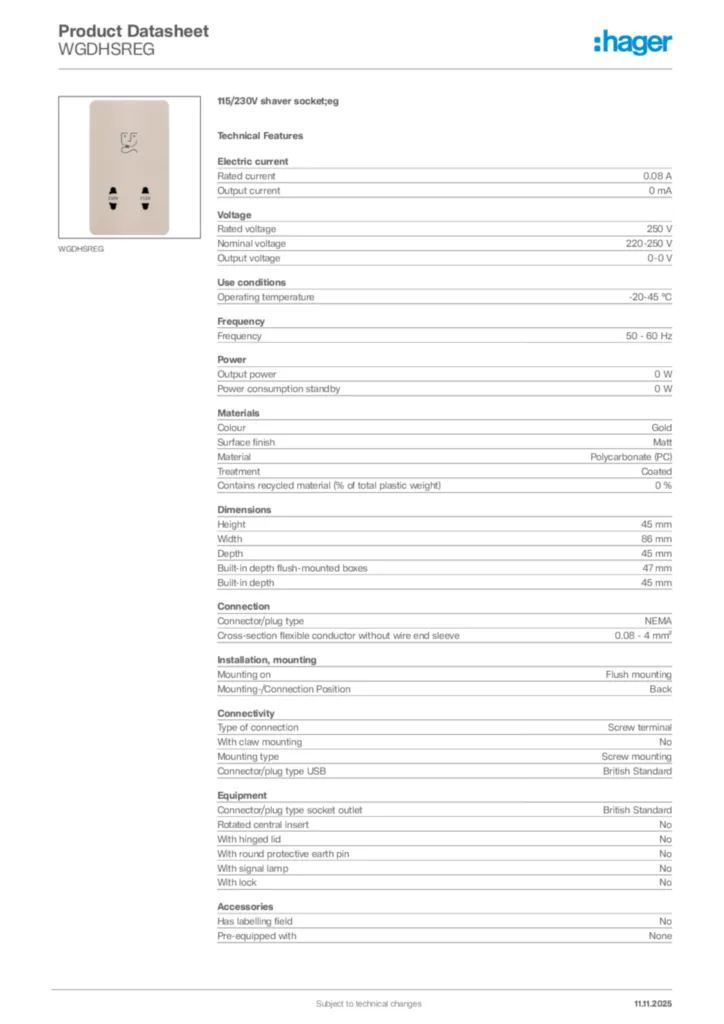

Download the data sheet

Technical properties

Rated voltage

250 V
Output voltage

0-0 V

Output current

0
Rated current

0.08 A

Frequency

50 - 60 Hz

Output power

0
Power consumption standby

0

Colour

Gold
Surface finish

Matt
Material

Polycarbonate (PC)
Treatment

Coated
Contains recycled material (% of total plastic weight)

0

Height

45 mm
Width

86 mm
Depth

45 mm
Built-in depth flush-mounted boxes

47 mm
Built-in depth

45 mm

Cable length

0

Connector/plug type

NEMA
Cross-section flexible conductor without wire end sleeve

0.08 - 4 mm²
Number of conduit inlets

0

Mounting on

Flush mounting
Mounting-/Connection Position

Back

Type of connection

Screw terminal
With claw mounting

No
Mounting type

Screw mounting
Connector/plug type USB

British Standard

Connector/plug type socket outlet

British Standard
Rotated central insert

No
With hinged lid

No
With round protective earth pin

No
With signal lamp

No
With lock

No

Has labelling field

No
Pre-equipped with

None

Number of modules

0

With enhanced contact protection

No
Impact resistance IK

IK02
Ingress Protection (IP) class

IP20

With orientation lighting

No
With function lighting

No

With imprint

No
