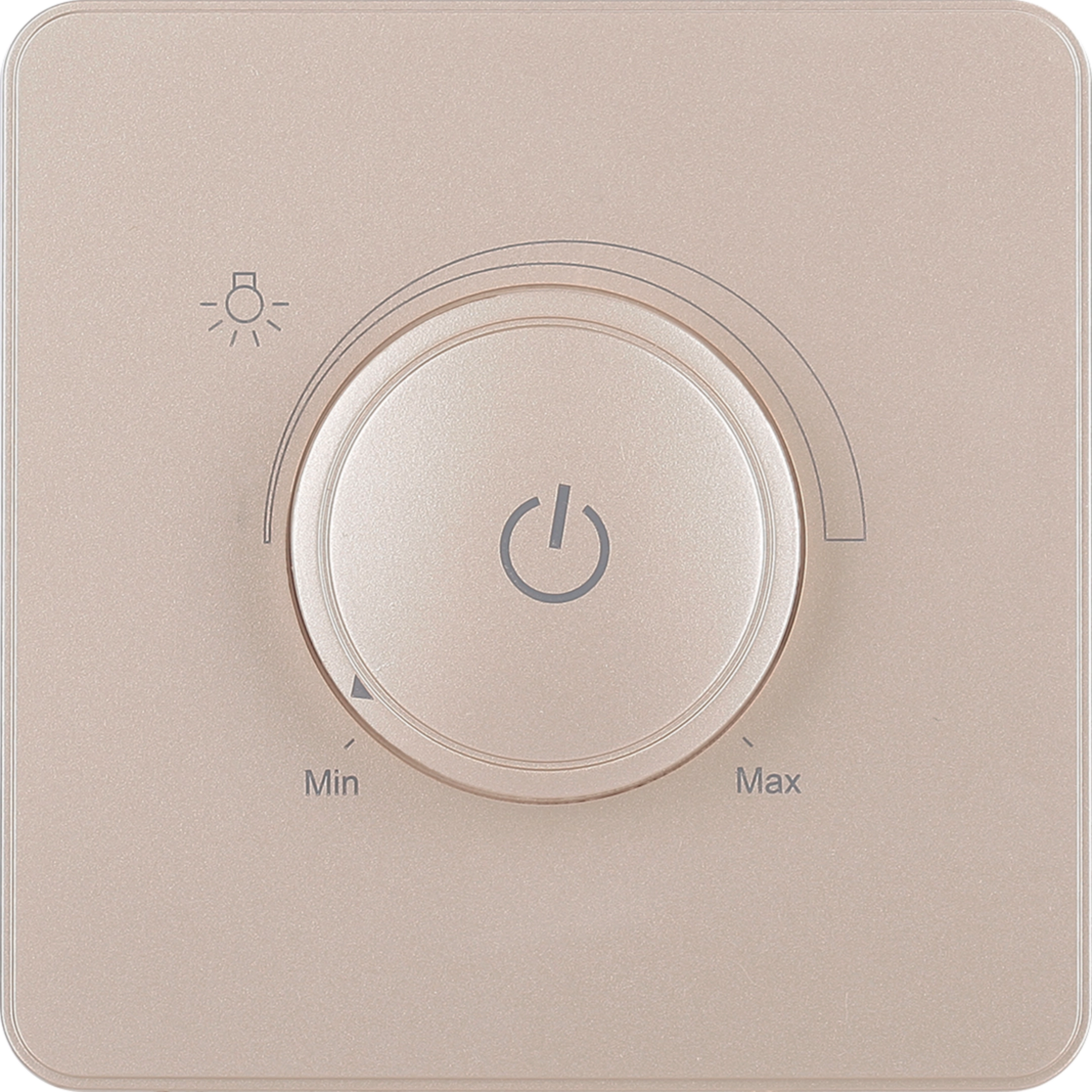

The Hager 40-500 W single dimmer in gold delivers smooth, reliable control of 230 V incandescent/halogen loads up to 500 W and dimmable LED lamps 40-250 W at 50-60 Hz. Its compact 1‑module design (86×41×41 mm, 34 mm built‑in depth) fits standard boxes. Operating from -5 to 45°C and accepting 1.5-2.5 mm² conductors, it ensures easy, secure installation. Ideal for residential lighting to set ambience and save energy.
EAN
3250617290159
Packaging
6
Single Dimmer 40-500W 230V 50/60Hz LED 40-250W 1 Module White WGDEDR500EG
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Voltage
-
Operating voltage0 - 230 V
-
Rated operational voltage Ue0-230 V
Connectivity
-
With bus system KNX radioNo
Frequency
-
Frequency50 - 60 Hz
Electric current
-
Control current170-2170 mA
Materials
-
ColourGold
-
MaterialPolycarbonate (PC)
Dimensions
-
Built-in depth34 mm
-
Height41 mm
-
Width86 mm
-
Depth41 mm
Architecture
-
Control/operation elementDimmer
Power
-
230 V incandescent and halogen lamp500 W
-
Power incandescent lamp40-500 W
Lighting
-
Dimmable 230 V LED lamp40-250 W
-
LED lamp power0
Use conditions
-
Operating temperature-5 - 45 °C
Connection
-
Cross-section rigid conductor1.5 - 2.5 mm²
-
Cross-section flexible conductor1.5 - 2.5 mm²
Capacity
-
Number of modules1
Equipment
-
Substation inputNo
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

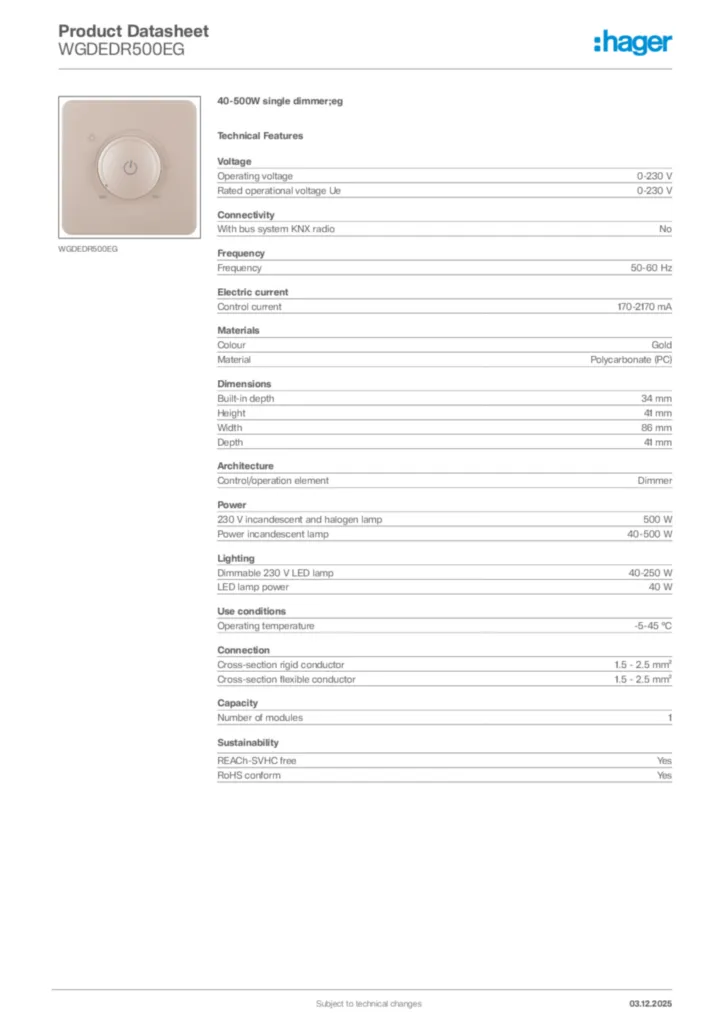

Product datasheet
Hager Product data sheet WGDEDR500EG
40-500W single dimmer;eg
PDF -
Declaration of conformity
Declaration
Declaration of conformity en-GB 2022-12-30
PDF96,63 kB
More documentation
