The Hager 40-500 W single dimmer provides smooth control of 230 V lighting. It handles 40-500 W incandescent/halogen and 40-250 W dimmable 230 V LEDs at 50-60 Hz, ideal for residential and light commercial ambiance. Compact 34 mm built-in depth and 1-module size ease installation with 1.5-2.5 mm² wires. Durable bronze PC finish, operating -5 to 45°C. No KNX radio.

EAN

3250617287036

Packaging

Inspire - Dimmer & fan controller

Single dimmer 230V 40-500W incand./halogen, 40-250W LED, Knight black, 1M WGCXEDR500NB

Technical properties
Environmental value
Documentations
More products

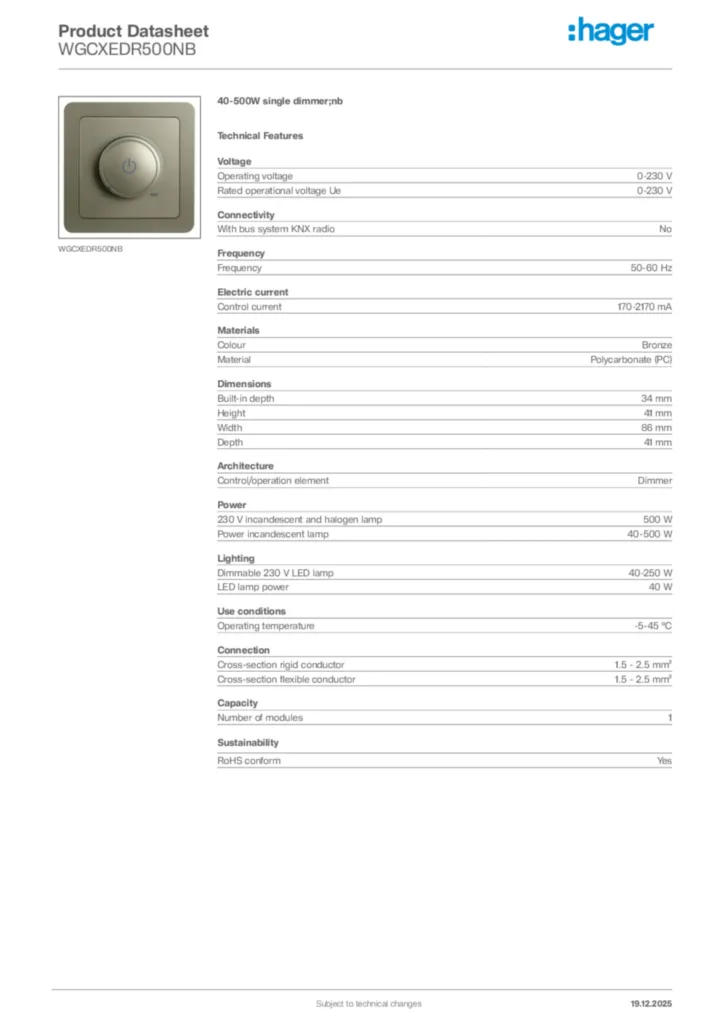

Download the data sheet

Technical properties

Operating voltage

0 - 230 V
Rated operational voltage Ue

0-230 V

With bus system KNX radio

No

Frequency

50 - 60 Hz

Control current

170-2170 mA

Colour

Bronze
Material

Polycarbonate (PC)

Built-in depth

34 mm
Height

41 mm
Width

86 mm
Depth

41 mm

Control/operation element

Dimmer

230 V incandescent and halogen lamp

500 W
Power incandescent lamp

40-500 W

Dimmable 230 V LED lamp

40-250 W
LED lamp power

0

Operating temperature

-5 - 45 °C

Cross-section rigid conductor

1.5 - 2.5 mm²
Cross-section flexible conductor

1.5 - 2.5 mm²

Number of modules

1

Substation input

No

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
