The Hager 10AX 1G Intermediate Switch enables control of a lighting circuit from three or more locations. Rated 10AX/10A at 250 V, 50-60 Hz, it supports up to 100 W LED (SBL). Designed for flush mounting, it fits 35 mm boxes with a 25 mm built-in depth. The white glossy polycarbonate finish suits modern interiors. Screw mounting and screw terminals ensure secure, easy installation. Unlit (not illuminable). 1 button.

EAN

3250617285186

Packaging

Inspire - Wall switches

Switch 16AX 1-Gang 2-Way Fluorescent Locator 250V Flush White Glossy WGCL113

Technical properties
Environmental value
Documentations
More products

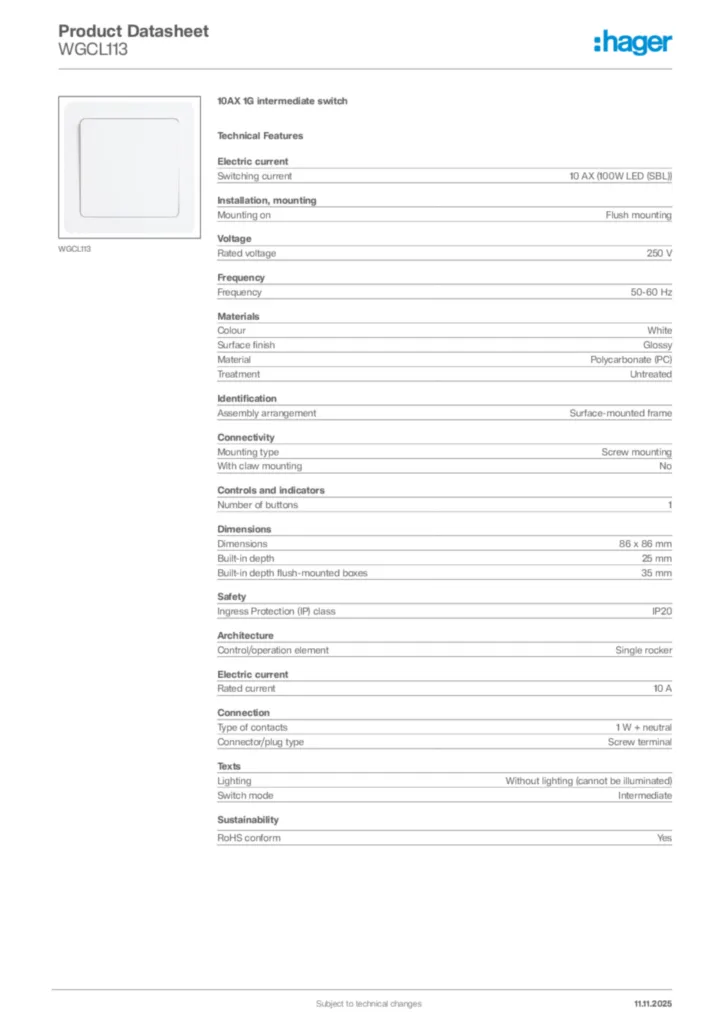

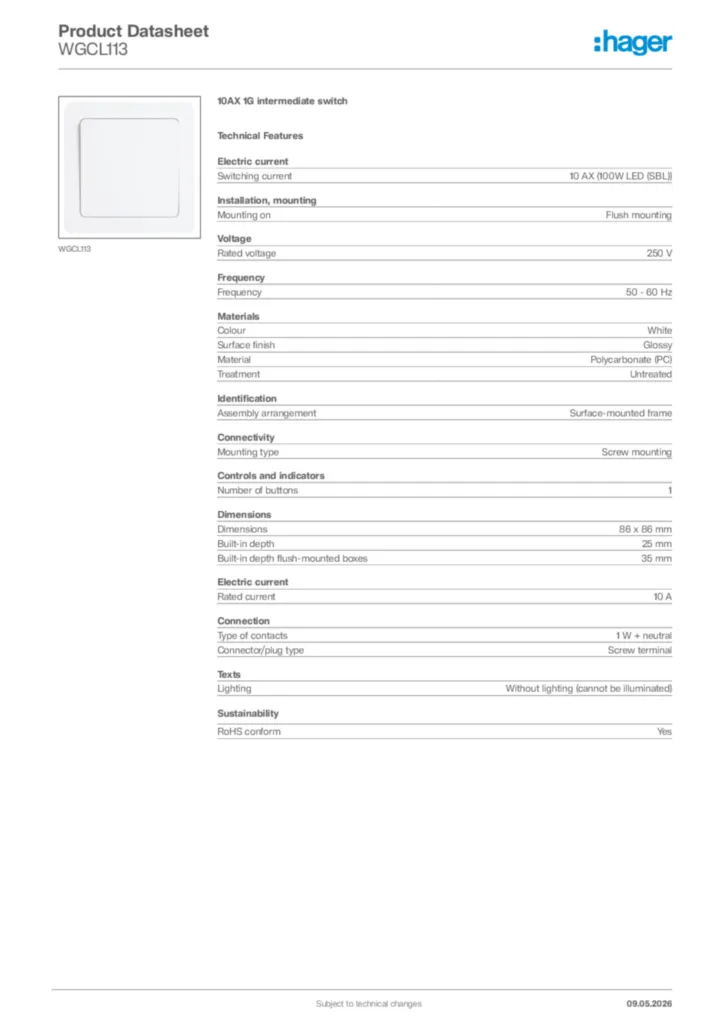

Download the data sheet

Technical properties

Switching current

10 AX (100W LED (SBL))
Rated current

10 A

Mounting on

Flush mounting

Rated voltage

250 V

Frequency

50 - 60 Hz

Colour

White
Surface finish

Glossy
Material

Polycarbonate (PC)
Treatment

Untreated

Assembly arrangement

Surface-mounted frame

Mounting type

Screw mounting

Number of buttons

1

Built-in depth

25 mm
Built-in depth flush-mounted boxes

35 mm

Type of contacts

1 W + neutral
Connector/plug type

Screw terminal

Lighting

Without lighting (cannot be illuminated)

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
